About "TRIHAWK V620series"
The "TRIHAWK V620 Series" is designed for a medium scale of sea area surveillance. This series features high functionality and excellent cost performance by adoption of advanced radar signal processing and easy-to-see personal computer display.
In addition, a variety of options are made available for flexible choice for various purposes of use.
This V620 series is adequate for the Local Port Service in accordance with IALA-128.
*IALA Local Port Services category is under planning by IALA and will be decided by V-128,Ed.4.
Automatic Tracking of up to 300 Vessels
The image server/tracking device incorporated in the Radar data processor provides the high-resolution plotting processing function and the automatic vessel tracking processing function designed for VTMS systems. The vessels entering the automatic tracking area that is preset on the Operation Display by the user are automatically acquired and tracked. By setting an tracking exclusion area, buoys, reefs and other unnecessary targets can be excluded from tracking.
Original Signal Processing for Sharp and Clear Radar Image
The original signal processing technology that JRC has developed in its long history of marine radar business includes pulse width setting, gain control, sea clutter suppression, rain/snow clutter suppression, interference rejection, etc., to provide sharp and clear radar images.
Wide-area Overview by Expansion Displays (Option)

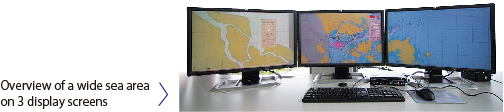

The system can be expanded by adding optional operation displays, allowing two or more operators to monitor a congested sea area. Up to 3 operation displays are connectable to the system. These expansion displays can present an overview of a wide sea area or different sea areas on their individual screens.
System

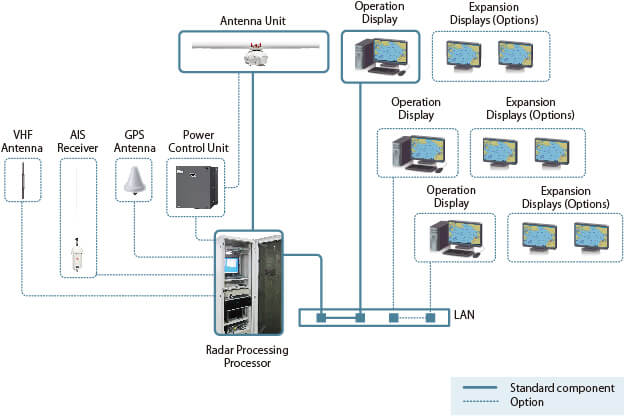

V620 Series System Configuration
Display
Display Examples

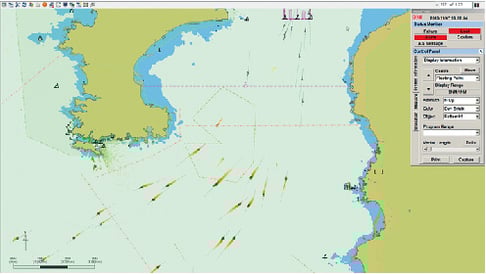

Radar monitor
ENC display screen of optional operational display
Specs
V620 Series Specifications
| Model Type | JPL-620-2 ER1-6 | JPL-620-2 ER2-9 | JPL-620-2 ER2-9J |
|---|---|---|---|
| Antenna Unit | NKE-600-2 F2T | NKE-600-2 D1T | NKE-600-2 D1TJ |
| Radiator length | 6 feet | 9 feet | 9 feet |
| Transmitted power | 10kW | 25kW | 25kW |
| Rotational speed | 27rpm | 24rpm | 24rpm |
| Plane of polarization | Horizontal | Horizontal | Horizontal |
| Transmitting frequency |
9410MHz band | 9410MHz band | 9740MHz band |
| Dimensions/Weight | 1910 x 457mm/40kg | 2825 x 536mm/60kg | 2825 x 536mm/60kg |
| Installation cable | 20m standard between antenna and processing equipment (30m, 50m and 65m optionally available) |
||
| Operating environment |
Temperature: -25 to +55°C; Humidity: 93% relative (at 40°C) | ||
| Radar Processing Processor |
|||
| Input signals | Radar video, antenna revolution signal, radar trigger | ||
| Video processing functions |
Gain control, sea clutter suppression, scan correlation, sweep averaging, rain/snow clutter suppression, interference rejection | ||
| Alarm processing | Alarm line, Alarm area, dredging anchor, speed limit (min, max), collision alarm | ||
| Automatic tracking | Up to 300 targets | ||
| AIS integrated process |
Up to 1000 AIS-carried vessels (*1) | ||
| LAN interface | Ethernet 10/100/1000 | ||
| Power supply | 100/200VACm 50/60Hz | ||
| Dimensions | 600(W) x 700(D) x 1900 (H) mm | ||
| Operation Display | |||
| LAN interface | Ethernet 10/100/1000 | ||
| Display contents | Radar video, radar track data, alarm signals, ENC, fixed range markers, bearing markers, latitude/longitude lines, variable bearing cursor, variable range cursor, radar control windows, AIS target data (*1), etc. | ||
| Electronic chart | ENC S63 supported (sold separately) | ||
| Memory capacity | Continuous 31 days | ||
| Recording intervals | 10, 30, 60, 90, 120 sec. | ||
| Display resolution | 1920 (H) x 1299 (V) pixels (WUXGA) | ||
| Options | |||
| AIS Base Station | NZA-271 | ||
| AIS Transponder | JHF-307 (*2) | ||
| VHF Antenna | SL-150 | ||
| GPS Antenna | CCAH32ST14 | ||
| Performance Monitor | NJU-82A (for 9410MHz-band only) | ||
| Operation Display | NZA-273: Up to 2 units connectable | ||
| Expansion Display | NWZ-204: Up to 2 units connectable | ||
| Power Control Unit | NZA-280: Capable of extending the distance between the Antenna and the Processing Equipment distance up to 400m | ||
*1: Available when the AIS base station is installed.
*2: Available as AIS receiving station.
