Features
About "TRIHAWK V600 Series"
The "TRIHAWK V600 Series" is designed for a small scale of sea area surveillance. It is made available at the lowest cost among JRC V-series VTS's and designed for the Local Port Service.
Designed for Local Port Services
The V600 series is an entry model which is available at the lowest cost in the JRC TRIHAWK V series and designed to meet the Local Port Services.
Compact-type VTS
This VTS model is d esigned as the compact system consisting of an antenna, a processer unit and an operation unit, which is suitable for surveillance of a relatively small sea area of approximately 5 to 10NM. An operation display is also available as option to display an accurate electronic navigational chart (ENC S63).
System

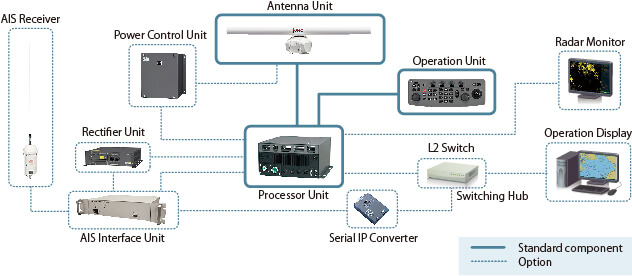

V600 Series System Configuration

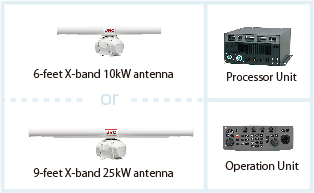

Standard Components

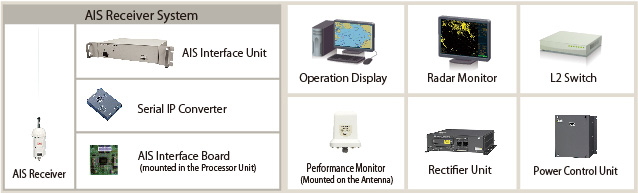

Options
Display
Display Examples

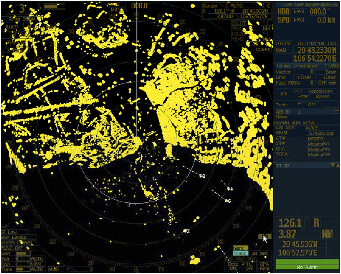

Radar Monitor (Option)

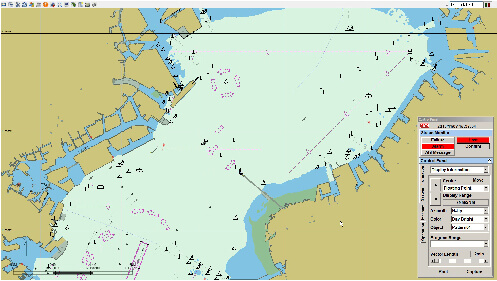

ENC Display Screen of Optional Operational Display
Specs
V600 Series Specifications
| Model Type | JPL-600-2ER1-6 | JPL-600-2ER2-9 | JPL-600-2ER2-9J |
|---|---|---|---|
| Display system | Raster-scan color PPI | ||
| Display range scales | 0.25/0.5/1.5/3/6/12/24/48 NM | ||
| Antenna Unit | NKE-600-2F2T | NKE-600-2D1T | NKE-600-2D1TJ |
| Radiator length | 6 feet | 9 feet | 9 feet |
| Transmitted power | 10kW | 25kW | 25kW |
| Rotational speed | 27rpm | 24rpm | 24rpm |
| Transmitting frequency |
9410MHz band | 9410MHz band | 9740MHz band |
| Dimensions/Weight | 1910 x 457mm/40kg | 2825 x 536mm/60kg | 2825 x 536mm/60kg |
| Processor Unit | NDC-1376A | ||
| Dimensions/Weight | 340(W) x 170(D) x 305(H)mm/6kg | ||
| Operation Unit | NCE-5085A | ||
| Dimensions/Weight | 360(W) x 132(D) x 59(H)mm/1.3kg | ||
| Options | |||
| Performance Monitor | NJU-82A (for 9410MHz-band only) | ||
| Radar Monitor | NWZ-203 | ||
| Rectifier Unit | MBZ-5070A | ||
| ARPA Processor Unit | NCA-891: Capable of tracking up to 100 targets | ||
| AIS Receiver System |
NZA-270: Capable of processing up to 300 AIS vessels | ||
| Operation Display | NZA-272: Capable of supporting ENC S63 (sold separately) | ||
| Power Control unit | NZA-280: Capable of extending the Antenna-Processor distance up to 400m | ||
