Features
The newest addition to the JRC radar portfolio is the JMA-3400 series. This lightweight radar has user-friendly operation system and is specially designed for fishing boats, non-international trading vessels and workboats. The system can be completed by choosing from a variety of 2 ft, 3.9 ft, 4 ft and 6 ft scanners.
- 12.1-inch fully dimmable display
- High-visibility by glass-bonded display
- Chart overlay (NAVIONICS+)
- Real Time Head-up Function (Constaview)
- Variety of compact X-band scanner units
- High speed version available
- Brushless antenna motors for extended lifetime
- Light-weight design
- Latest technologies included
- Multi-Language

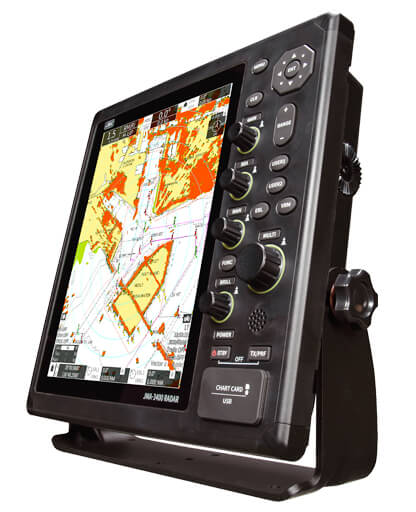

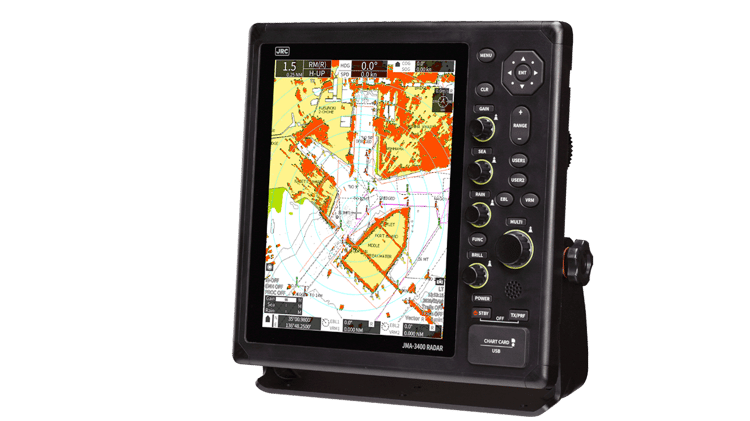

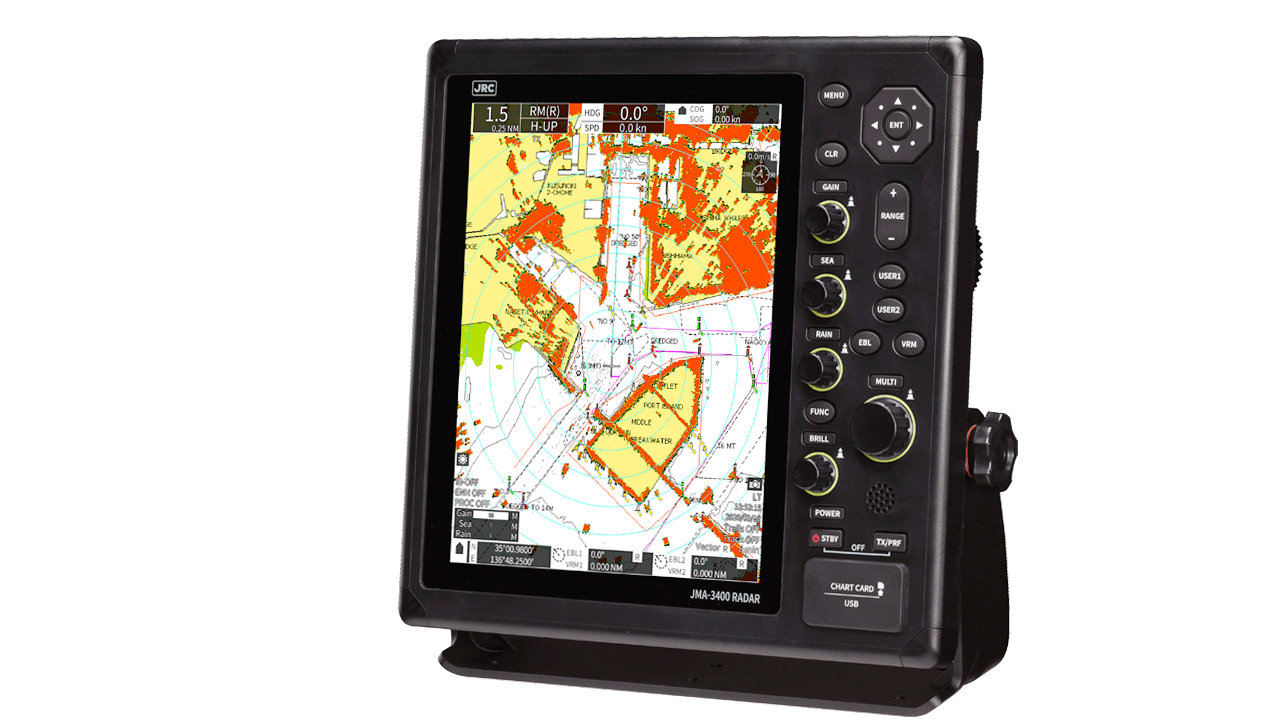

Display

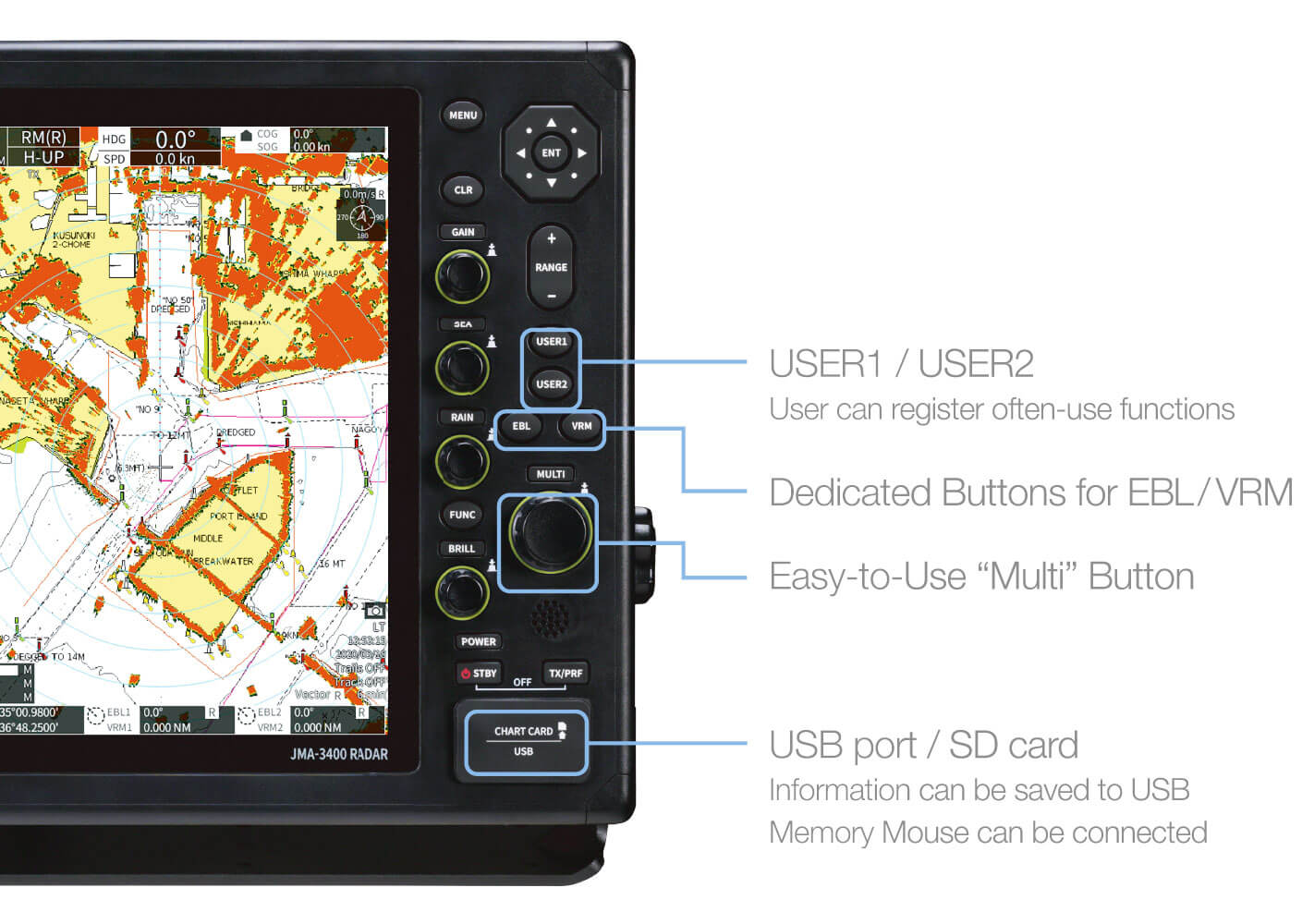

The 12.1-inch dimmable LCD provides excellent visibility and durability. It reduces reflection of sunlight and shows clear images of even the smallest targets. The ergonomic keyboard offers user customizable keys. Programming the USER keys give you instant access to your favourite functions.

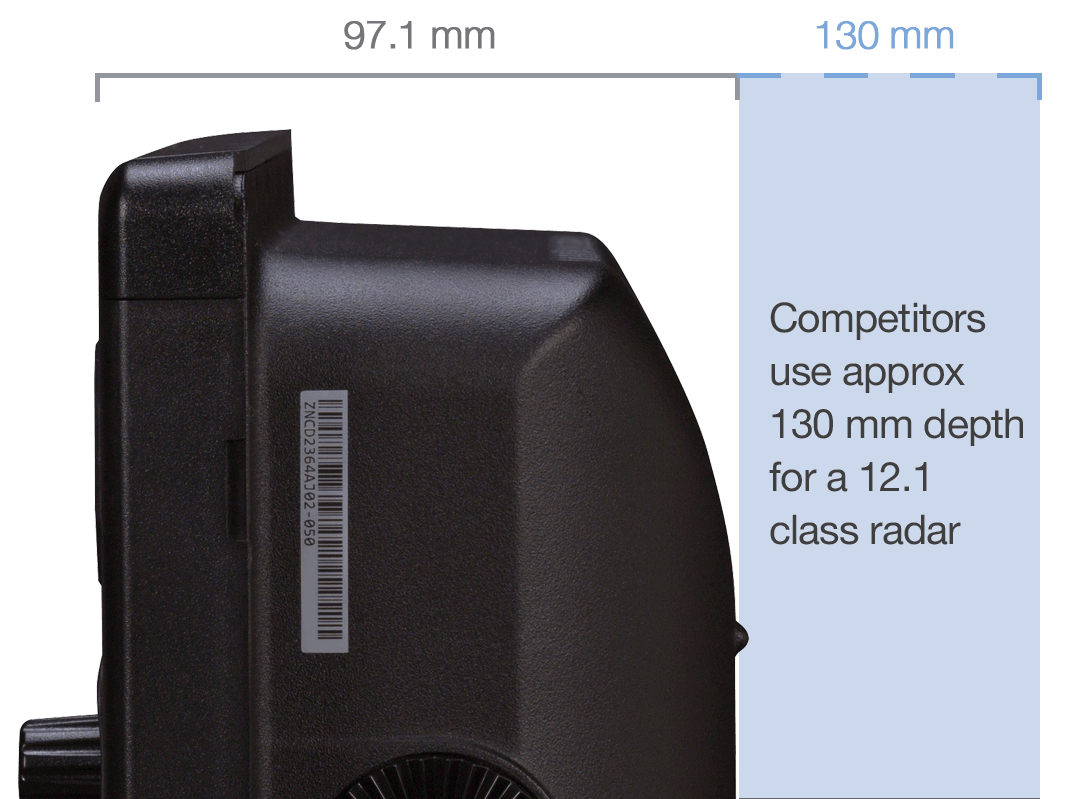

The newly developed thin body is reduced till only 97.1 mm depth, so that it can be installed on small vessels where effective use of the limited space needs to be taken in account.
Radar overlay
By displaying the radar image and the NAVIONICS+:*1 chart in an overlapping manner, you can grasp the relationship between the radar image and the coastlines simultaneously.
Daytime mode
Daytime mode (with NAVIONICS+)
Night mode (with NAVIONICS+)
*1 : For information regarding the NAVIONICS+ electronic chart, please contact JRC/Alphatron Marine.
Constaview
Naturally our patented real time Constaview functionality is incorporated into the new radar system, processing the radar image before being displayed, generating a smooth rotation when sailing in Head-Up mode. To use real-time Head-Up, own ship position information (GPS connection) and input of heading information (compass connection) is required. When changing to North-Up, the new radar image is displayed without any delay caused by the scanner rotation. By displaying the other ships moving with a tail and displaying the fixed objects such as land and buoys so that they do not pull the tail, the movements and fixed objects of other ships can be accurately read.
Real time Head-Up mode

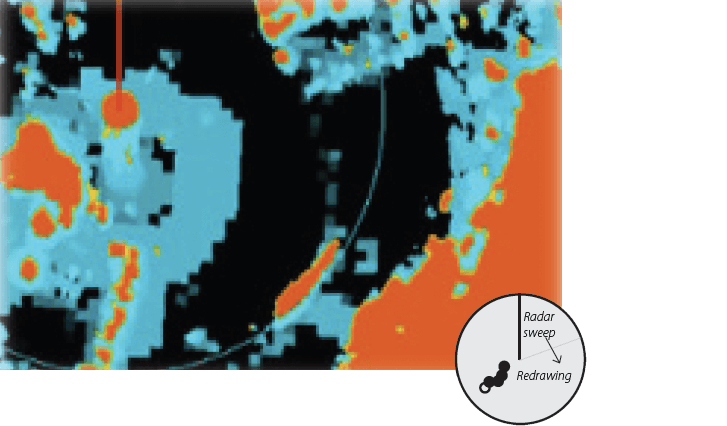

Conventional
Relative Trails
Traditional technology relies on several sweeps of the scanner to redraw the image. Trails are presented as relative.

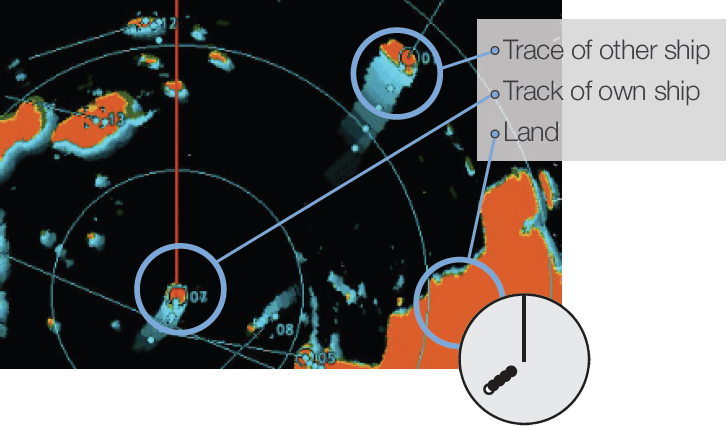

Constaview
True Trails
Constaview refreshes the image every 16 ms. Despite heading changes trails are always true.

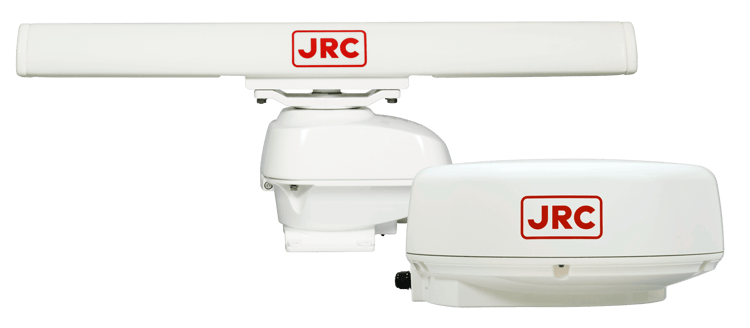

Scanners
A wide range of X-band scanners, varying from small and light radome type to open array type, are available depending on installation space and required performance, all with exceptionally reliable target detection capabilities. The latest leading technologies with a set of advanced features are integrated, allowing the radar to run images faster and more efficient than ever before. Also, the NKE-2063AHS features the brushless antenna motors, the scanner guarantee for extended lifetime.

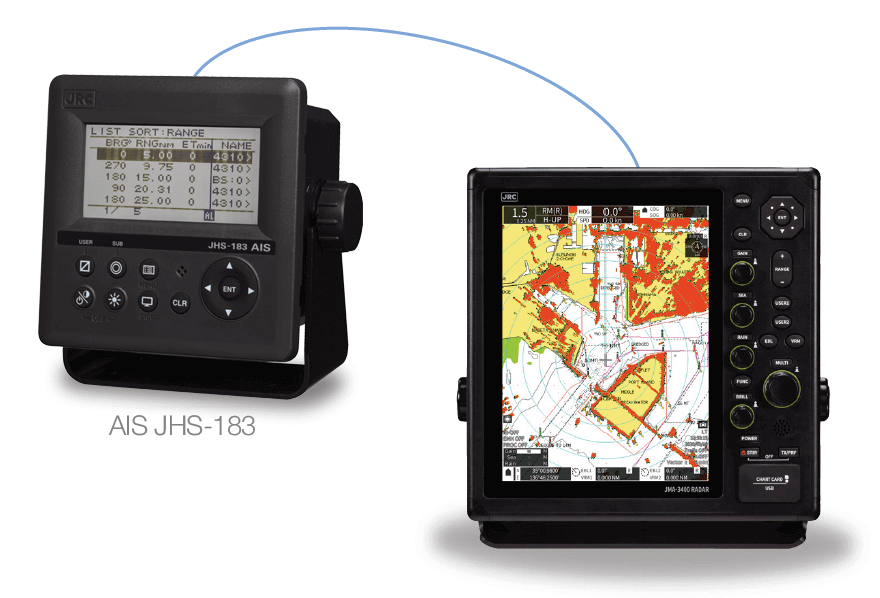

AIS

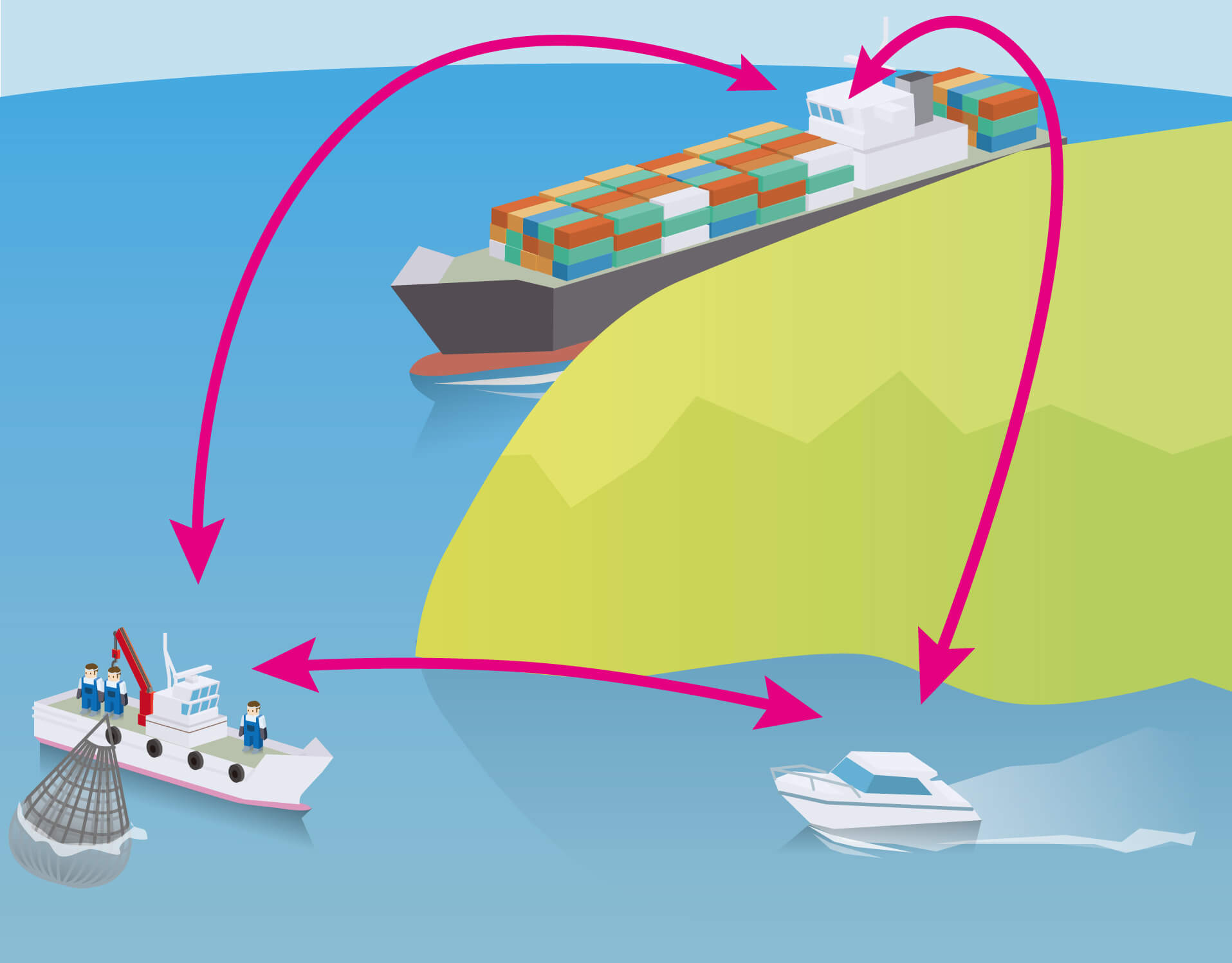

By connecting with AIS, it is possible to display ships on the island’s shadow where radar waves do not reach, enabling safer navigation.
In order to use the AIS display function, it is necessary to input own ship position information (GPS connection), heading information (compass connection) and AIS information.

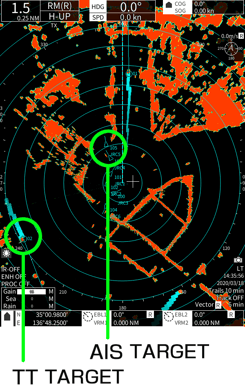

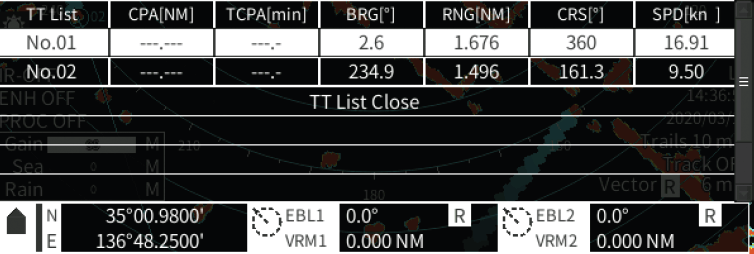

The JMA-3400 series is equipped with target tracking (TT) function and AIS display function.
To use the target tracking function, input of heading information (compass connection) is required.
Target tracking can be up to 30 ships.

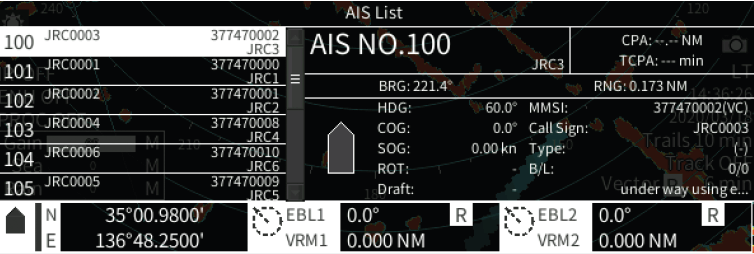

Up to 100 AIS displays can be displayed.

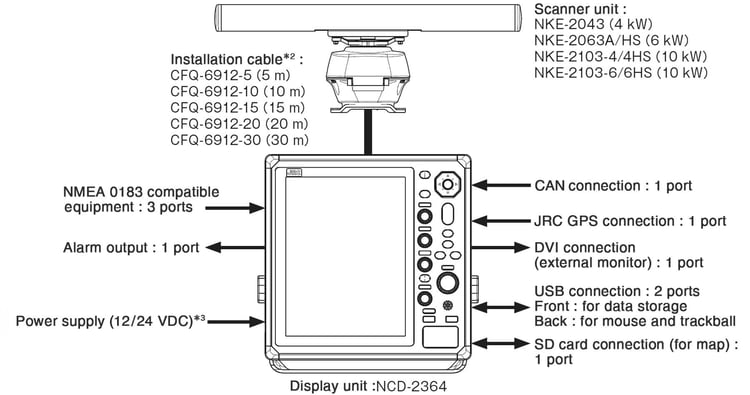

System
*2 : 4 kW, 6 kW model available to be use 5/10/15/20 m at 12 VDC power input.
*3 : 12 V/24 V : 4/6 kW, 24 V : 6 kW-HS, 10 kW/10 kW-HS
Dimensions

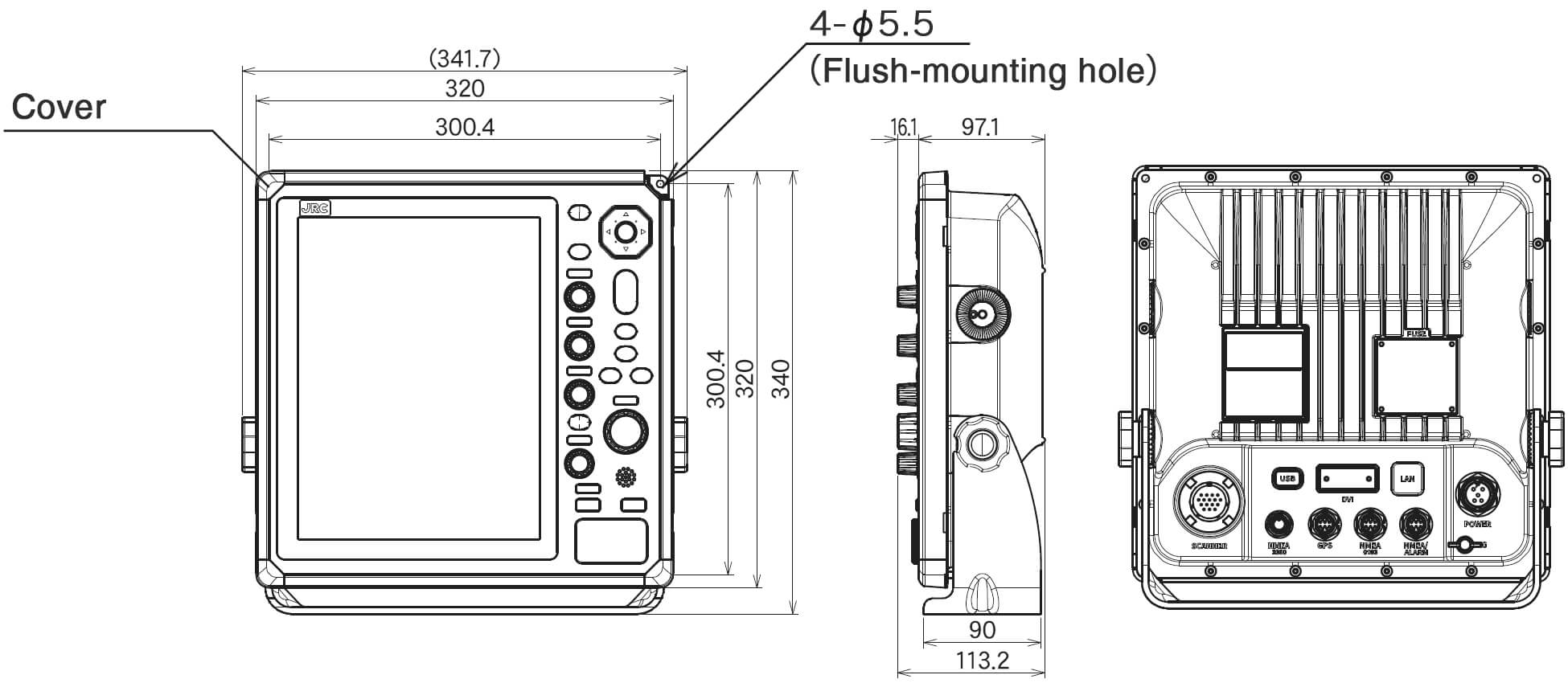

Display unit NCD-2364
Mass : Approx. 5 kg

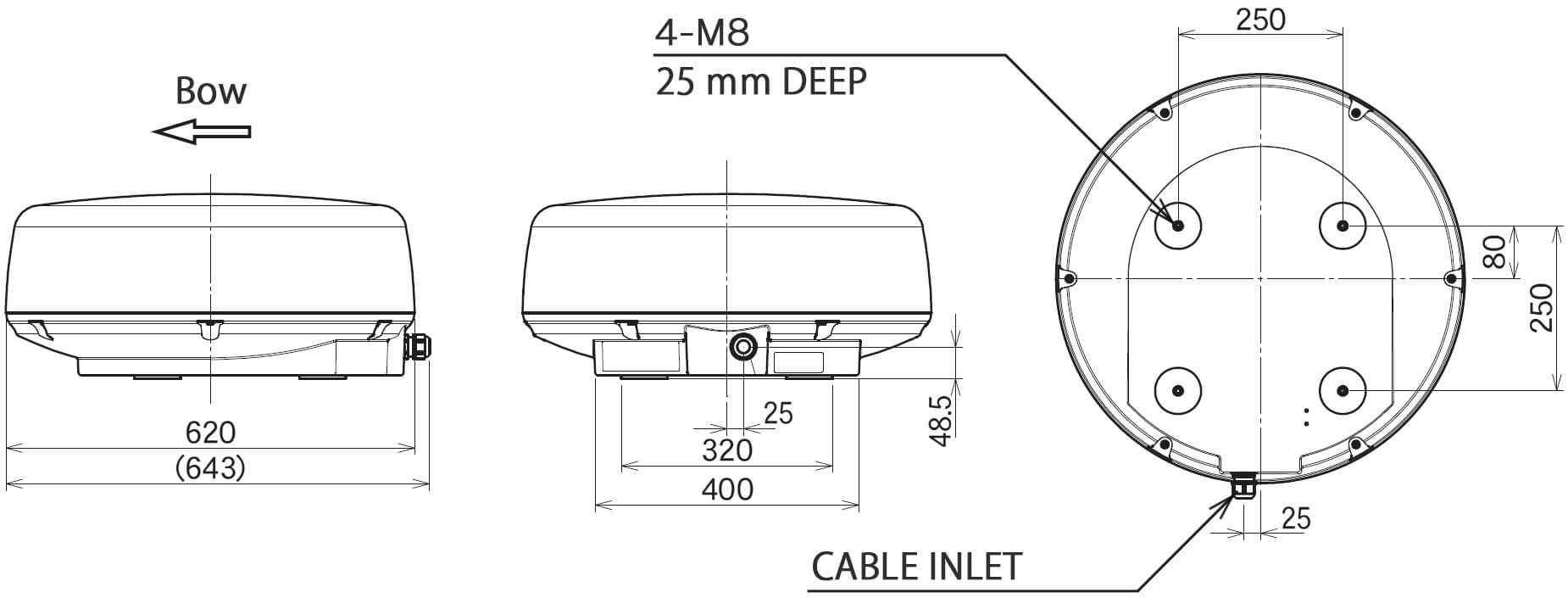

Scanner NKE-2043
Mass : Approx. 10 kg

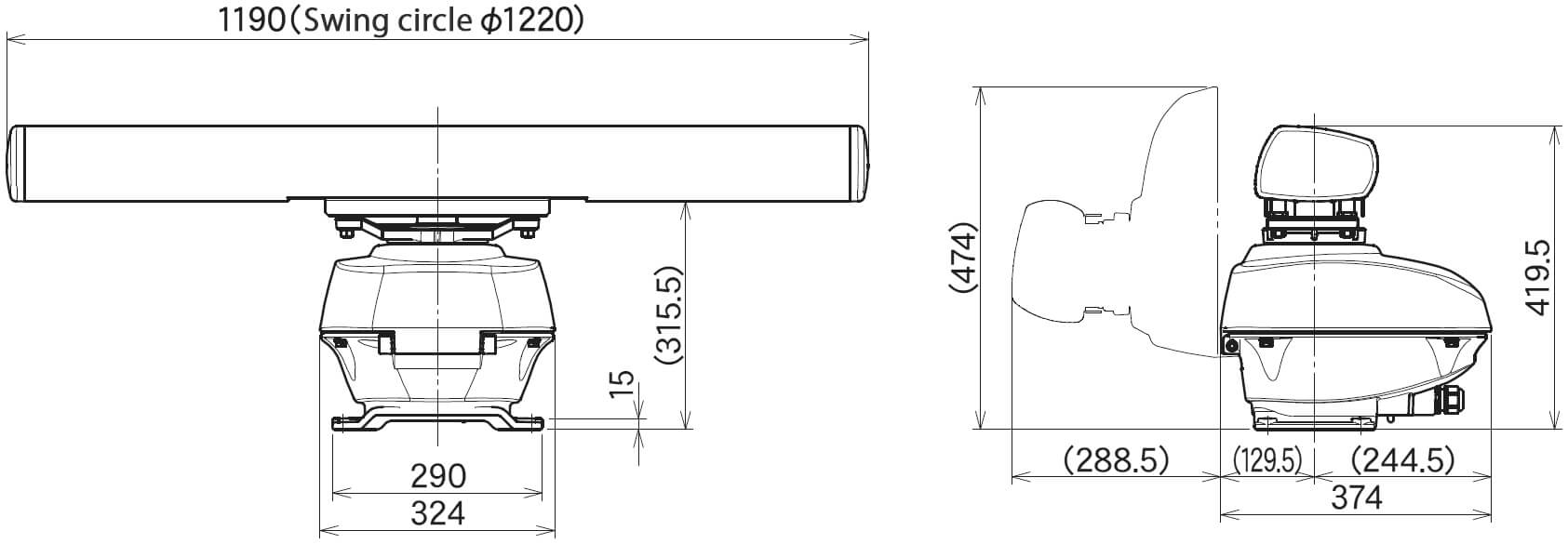

Scanner NKE-2063A/HS
Mass : Approx. 21kg

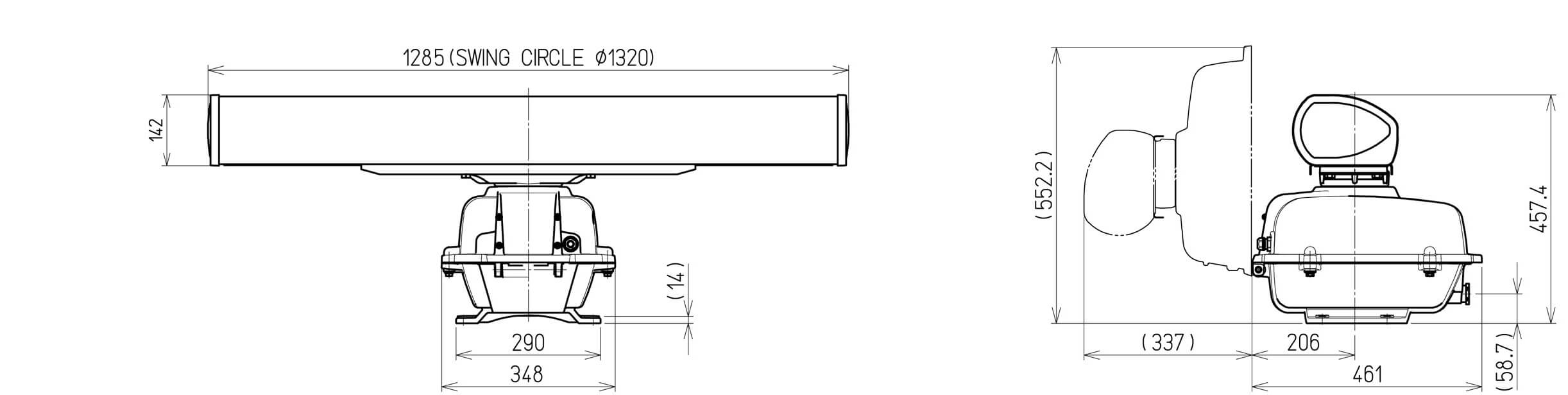

Scanner NKE-2103-4/4HS
Mass : Approx. 34 kg

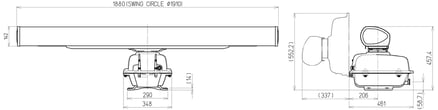

Scanner NKE-2103-6/6HS
Mass : Approx. 36kg
Specifications
| Name | Marine Radar | ||||||
| Model | JMA-3404 | JMA-3406 | JMA-3406HS | JMA-3411-4 | JMA-3411-4HS | JMA-3411-6 | JMA-3411-6HS |
| Scanner | |||||||
|---|---|---|---|---|---|---|---|
| Model | NKE-2043 | NKE-2063A | NKE-2063AHS | NKE-2103-4 | NKE-2103-4HS | NKE-2103-6 | NKE-2103-6HS |
| Transmitting frequency | X-band(9410 MHz) | ||||||
| Transmitting power | 4 kW | 6 kW | 10 kW | ||||
| Scanner type | Radome | Open | |||||
| Antenna length | 2 ft | 3.9 ft | 4 ft | 6 ft | |||
| Rotation speed | 16-48 rpm | 16-27 rpm | 27-48 rpm | 16-27 rpm | 27 ft-48 rpm | 16-27 rpm | 27 ft-48 rpm |
| Beam width | H:4 °, V:25 ° | H:2 °, V:30 ° | H:1.9 °, V:20 ° | H:1.2 °, V:20 ° | |||
| Maximum range | 48 NM | 72 NM*4 | |||||
| Range scale | 0.0625,0.125,0.25,0.5,0.75,1,1.5,2,3,4,6,8,12,16,24,32,48,64,72 NM*4 | ||||||
| Range resolution | 4 kW:22 m,6 kW:25 m,10 kW:30 m(4 ft),30 m(6 ft) | ||||||
| Minimum detective range | 4 kW:20 m,6 kW:25 m,10 kW:20 m(4 ft),22 m(6 ft) | ||||||
| Bearing accuracy | less than ±1 ° | ||||||
| Pulse width/Repitation frequency | 0.08 µs/4000 Hz*5, 0.08 µs/2250 Hz, 0.13 µs/1700 Hz*5, 0.25 µs/1700 Hz, 0.5 µs/1200 Hz, 0.8 µs/750 Hz, 1.0 µs/650 Hz | ||||||
| Display unit | |||||||
| Model | NCD-2364 | ||||||
| Screen size and resolution | 12.1-inch SVGA color LCD, 800×600 dot | ||||||
| PPI effective diamater | 184 mm | ||||||
| Chart data | Overseas : NAVIONICS+ / Japan : new pec | ||||||
| Presentation mode | RM : North-UP, Head-UP, Course-UP TM : North-UP, Course-UP |
||||||
| Gain | Auto / Manual | ||||||
| Sea/Rain | Auto / Manual | ||||||
| Trail indication | Short : Off/0.25/0.5/1/2/3/4/5/6/10/15 min/All Middle : Off/0.5/1/2/3/4/5/6/10/15/30 min/All Long : Off/1/2/3/4/5/6/10/15/30/60 min/All Super Long : Off/30 min/1/2/at 1 hr interval/24 hr/All |
||||||
| Off center | 2/3 radius of PPI | ||||||
| TT acquisition mode | Auto / manual | ||||||
| Tracking target capacity | 30 targets | ||||||
| Acquisiton and trackingrange | 20 NM | ||||||
| Target data | True bearing, range, true course, true speed, CPA, TCPA | ||||||
| Vector mode and length | True/relative vector, adjustable from 1 to 60 min | ||||||
| Guard zone | 2 zone (Auto TT:1) | ||||||
| Alarms | CPA/TCPA, new target, lost, system error | ||||||
| AIS target capacity | 100 targets | ||||||
| Power supply | 12/24 VDC | 24 VDC | |||||
| Power consumption | Approx 60 W | Typcal : approx 85 W In maximum wind : approx 180 W |
Typcal : approx 85 W In maximum wind : approx 230 W |
Typcal : approx 100 W In maximum wind : approx 210 W |
Typcal : approx 100 W In maximum wind : approx 360 W |
Typcal : approx 100 W In maximum wind : approx 210 W |
Typcal : approx 100 W In maximum wind : approx 360 W |
| Operating temperature | -25 ℃ to +55 ℃ (scanner), -15 ℃ to +55 ℃ (display unit) Relative humidity : 93 %@40 ℃ |
||||||
| Waterproofing | IP26 (scanner), IP55*6 (display unit) | ||||||
*4 : 72 NM is only 6 and 10 kW.
*5 : Only JMA-3404 and JMA-3406/HS.
*6 : IP55 when using the waterproof rubber cap.
- NAVIONICS+ is a registered trademark of Navionics.
- NAVIONICS+ is the electronic chart data that is made available by Navionics.
For the information regarding the NAVIONICS+ electronic chart, please contact JRC/Alphatron Marine.
Components
Standard components
| Name | Model | Q'ty |
|---|---|---|
| Scanner | NKE-2043 NKE-2063A NKE-2063AHS NKE-2103-4 NKE-2103-4HS NKE-2103-6 NKE-2103-6HS |
×1 |
| Display unit | NCD-2364 | ×1 |
| Sun cover | ×1 | |
| Power cable | CFQ-7758 | ×1 |
| Instruction manual (Japanese) | 7ZPRD1006 | ×1 |
| Simplified manual (Japanese) | 7ZPRD1009 | ×1 |
| Instruction manual (English) | 7ZPRD1007 | ×1 |
| Simplified manual (English) | 7ZPRD1010 | ×1 |
Option
| Name | Model |
|---|---|
| Installation cable (5 m) | CFQ-6912-5 |
| Installation cable (10 m) | CFQ-6912-10 |
| Installation cable (15 m) | CFQ-6912-15 |
| Installation cable (20 m) | CFQ-6912-20 |
| Installation cable (30 m) | CFQ-6912-30 |
| NMEA cable for GPS | CFQ-9002 |
| NMEA cable for NMEA0183 | CFQ-5374 |
| CAN cable | CFQ-7765 |
| Rectifier | NBA-5111 |
| Rectifier | NBD-865 |
| Rubber cap for installation cable | MTT317838 |
| new pec chart card | CDD-812 |
