Features
The JMA-3300 series is JRC's newest radar, featuring a 10.4-inch ultra bright LCD, and incorporates the latest digital signal processing for excellent target identification and detection in a compact design.
Display

The tough glass bonded LCD is backlit by white LED's giving 1000cd/m² of brightness, making the radar image amazingly sharp. A feature not previously found on this class of radar.
System-on-chip

JRC engineers custom designed the System-on-Chip (SoC) inside the new JMA-3300 series to be an extremely powerful tool. With such a small chip, weighing less than a sugar cube, performance remains at our high standards. At the same time, the SoC technology makes the compact radar very power efficient.
AIS and MARPA+
The new radar has the ability to display 50 AIS symbols, and 10 MARPA+ tracking targets as standard. The high quality of the display provides outstanding target definition and discrimination. The (second generation) MARPA+ continues JRC's successful MARPA+ technology first found in the previous JMA-2300 radar series. Our engineers continued developing and improving the technology, until now, with MARPA+, manual or automatic target tracking is even more reliable.
Semi-constaview
Based on JRC's patented technology found in the bigger radars, the new JMA-3300 integrates Semi-Constaview. This allows fast processing of targets, showing true trails in Head-Up mode, without interference of fixed targets, such as land or mass.
Sea trials

With Mount Fuji in the background, JRC engineers successfully tested the new JMA-3300 radar in Suruga Bay. See on the left side actual photos results of our SoC technology. Land echoes are clearly visible and smaller echoes are far more enlarged than bigger echoes, giving a better on-screen separation and identification.
MARPA+, Semi-Constaview, DirecTrak : function name

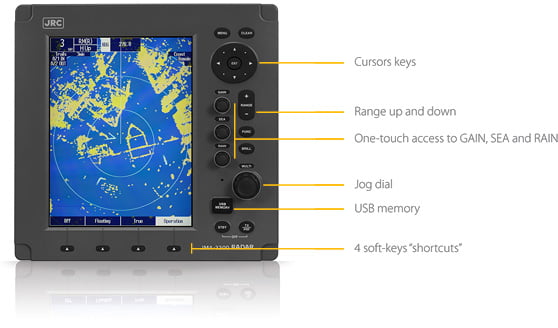

Easy user interface
Simple operation

Smooth and comfortable operation is guaranteed with the solid and responsive feel of the keys. A dedicated jog-dial is conveniently integrated as well as the function keys for one-touch access to GAIN, SEA and RAIN. The JMA-3300 also incorporates 4 soft-key switches just below the display that can be assigned by the user. Here you can specify commonly used functions, making it even simpler to navigate.
Trails
Other ship's movement and speed can be monitored from length and direction of their trails, primarily serving for collision avoidance. It integrates four different trail length modes, which will show a ship's course instantly, a unique operational feature that allows for more flexibility.
Transparent menus

With the transparent (pop-up) windows, you can navigate through menus or view required data, such as own ship data or cursor data, without losing the complete radar image.
Languages
The JMA-3300 series allows you to switch between English, Japanese, French, German, Spanish, Italian, Portuguese and Norwegian.
USB

Updating your radar with the latest software is made easy with a conveniently integrated USB port on the front side of the display.
Specs

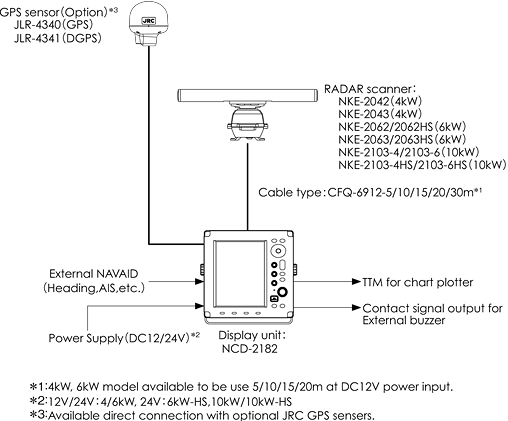

System diagram
What's in the box
- Display
- Scanner
- Cables
- Spare parts
- Operation guide/manual
- Installation manual
Which cables
Display to scanner 5/10/15/20/30 m

Options
Display cover
Dimensions (Display unit)

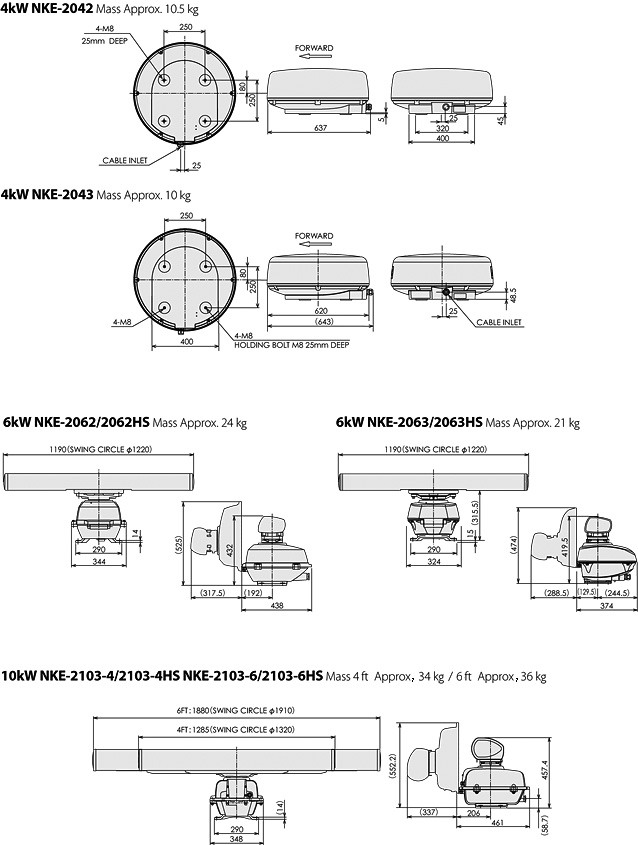

Dimensions (Scanner unit)
Specifications
Model | JMA- 3314 |
JMA- 3334 |
JMA- 3316 |
JMA- 3316 HS |
JMA- 3336 |
JMA- 3336 HS |
JMA- 3340- 4 |
JMA- 3340- 4HS |
JMA- 3340- 6 |
JMA- 3340- 6HS |
|
---|---|---|---|---|---|---|---|---|---|---|---|
Display | color raster scan PPI | ||||||||||
Scanners | |||||||||||
Model | NKE- 2042 |
NKE- 2043 |
NKE- 2062 |
NKE- 2062 HS |
NKE- 2063 |
NKE- 2063 HS |
NKE- 2103- 4 |
NKE- 2103- 4HS |
NKE- 2103- 6 |
NKE- 2103- 6HS |
|
Transmitting frequency | X-band (9410MHz ±30MHz) | ||||||||||
Transmitting power | 4kW | 6kW | 10kW | ||||||||
Scanner type | radome | open | |||||||||
Antenna length | 2ft | 3.9ft | 4ft | 6ft | |||||||
Rotation speed | 16-48rpm | 16- 27rpm |
27- 48rpm |
16- 27rpm |
27- 48rpm |
16- 27rpm |
16- 48rpm |
16- 27rpm |
16- 48rpm |
||
Beam width 3dB | H: 4°, V: 25° | H: 2°, V: 30° | H: 1.8°, V: 20° | H: 1.2°, V: 20° | |||||||
Pulse width/ repetition freq. |
0.08µs / 2250Hz 0.25µs / 1700Hz 0.5µs / 1200Hz 1.0µs / 650Hz |
0.08µs / 4000Hz 0.08µs / 2250Hz 0.13µs / 1700Hz 0.25µs / 1700Hz 0.5µs / 1200Hz 0.8µs / 750Hz 1.0µs / 650Hz |
0.08µs / 2250Hz 0.25µs / 1700Hz 0.5µs / 1200Hz 1.0µs / 650Hz |
0.08µs / 4000Hz 0.08µs / 2250Hz 0.13µs / 1700Hz 0.25µs / 1700Hz 0.5µs / 1200Hz 0.8µs / 750Hz 1.0µs / 650Hz |
0.08µs / 2250Hz 0.25µs / 1700Hz 0.5µs / 1200Hz 0.8µs / 750Hz 1.0µs / 650Hz |
||||||
Maximum range | 48NM | 72NM | |||||||||
Range scale | 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 NM |
0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 72 NM |
Display unit | ||||||
---|---|---|---|---|---|---|
Model | NCD-2182 | |||||
Axial resolution | less than 30m | |||||
Minimum detection range | less than 40m | |||||
Azimuth resolution | less than ±1° | |||||
Display | Glass bonded 10.4-inch LCD display (640 by 480 pixels) 1000cd/m² by white LED backlight | |||||
Effective diamater | more than 150mm | |||||
Presentation mode | RM: North / Head / Course-up TM: North / Course-up |
|||||
Gain | Auto / manual | |||||
Sea / rain | Auto / manual | |||||
Trail indication | 4 stages (example 1 minute to 1 hour or continuous) | |||||
Off center | within 66% of PPI radius | |||||
Barge icon | Available | |||||
MARPA+ acquisition mode | Auto / manual | |||||
MARPA+ targets | 10 targets | |||||
MARPA+ tracking | 20NM | |||||
MARPA+ info | To be selected from true heading, distance, COG, SOG, CPA, TCPA | |||||
Vector mode and length | True/relative vector, adjustable from 1 to 60 minutes | |||||
Guard zone | 2 zones | |||||
Alarms | CPA/TCPA, new target, lost, system error | |||||
AIS targets (built-in) | 50 targets | |||||
AIS info | To be selected from MMSI, call sign, ship's name, COG, SOG, CPA, TCPA, heading, distance, longitude/latitude, status etc | |||||
Input (navaid) | GGA, GNS, GLL, RMC, VTG, VBW, VHW, THS, HDT, HDG, HDM, DPT, DBT, MTW, ROT, RSA, VDM, VDO, ALR, VWT, VWR | |||||
Input (heading) | IEC61162 (4800/38400bps - THS, HDT, HDG, HDM) JRC-NSK format (JLR-20/30) Gyro-sync/step (360x, 180x, 90x, 36x)*1 |
|||||
Input (speed) | IEC61162 (4800bps - VBW, VHW) Log-sync (360x, 180x, 90x, 30x)*1 Log-pulse (800, 400, 200, 100)*1 |
|||||
Output | RSD, OSD, TTM, TLL, TTD, GGA, RMC, GNS, GLL, VTG, THS, HDT | |||||
Contact out | 1 for external buzzer | |||||
Power supply | DC12/24V -10/+30%*2 | DC24V -10/+30% | ||||
Power consumption | Approx. 60W | typ.: Approx. 85W maximum wind: Approx. 230W |
typ.: Approx85W maximum wind: Approx 180W |
typ.: Approx85W maximum wind: Approx 230W |
typ.: Approx. 100W maximum wind: Approx. 360W |
|
Ambient conditions | Temperature: -25° to 55°C (scanner) / -15° to 55°C (display unit) Relative humidity 0% to 93% non-condensing IP code: IP26 (scanner) / IP55 (display front panel) |
|||||
Option | ||||||
Installation cable(scanner to display unit) | CFQ-6912-xx (xx: 5/10/15/20/30m)*2 |
|||||
Gyro interface unit | NCT-4106A | |||||
Display cover | MTV304869 | |||||
Connection cable for JLR-20 (10m) | CFQ-5469 |
*1 : Optional Gyro interface unit NCT-4106A required.
*2 : Maximum cable length as 20m at DC12V operated
All specifications are subject to change without notification.
