JMA-1030 radar series

The new JMA-1030 radar series is JRC's very first touch operated radar with new dome scanners that provide you with highly accurate target clarity and ease of mind of your surroundings during night or intense fog.

7-inch color touch operation

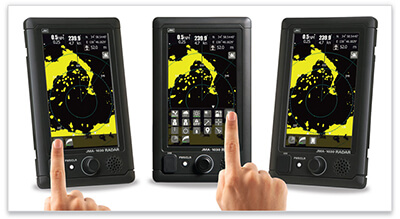

The high definition 7-inch wide display has allowed JRC engineers to develop an exciting new software approach that offers an incredibly easy-to-use icon based navigation experience with simple menus and dedicated functions.

The set of icons has been carefully designed. We brought the elements and visual style of our commercial class Multi Function Display (MFD) to our most compact series of radars. Built with the proven quality you expect from us.

System-on-Chip technology

JRC engineers custom designed the System-on-Chip (SoC) inside the new JMA-1030 series to be an extremely powerful tool and at the same time makes the display compact and very power efficient.

AIS and MARPATM standard

AIS and MARPATM standard

The new radar has the ability to display 50 AIS*1 symbols, and 10 MARPATM*2 tracking targets as standard. The high quality of the display provides outstanding target definition and discrimination.

Man overboard

A slippery deck or unexpected movement of the ship are situations in which a person may possibly fall overboard. The JMA-1030 integrates a single press MOB*3 button which instantly displays a dedicated symbol and remembers latitude and longitude to enable accurate search and rescue efforts.

*1 AIS requires ship's heading, position and AIS info
*2 MARPATM requires ship's heading info
*3 MOB requires ship's position info


Favorite icons

Favorite icons

While navigating it may be useful to have certain functions directly available on-screen without having to go into the menu. With the JMA-1030 you can. Simply hold any of the icons in the menu for about 2 seconds and the function will be placed at the bottom of the screen. Removing the icons works the same way.

Target visibility

The target visibility can be set in four different levels allowing target enhancement relative to the target size, a function normally not found on this type of radar.

Guard zone

Guard zone

This function allows the user to set a guard zone, providing a visual and audible alert for any vessel entering or leaving that area.

No flush mount kit

With JRC's new design approach, a flush mount kit is not required and screws are nicely concealed behind the front cover.

Display mounting

The processor is built into the display unit allowing for a flexible installation approach. This compact all-in-one unit allows flush mounting and includes a bracket for table mounting. Optionally available is a special bracket for ceiling mounting.

External monitor

An external monitor*1 can be connected to the display using an optional RGB unit, specifically useful in situations where a bigger monitor is required at another place on the vessel.

*1 Using a monitor that is close to the WVGA screen aspect ratio(5:3) and has a pivot function is recommend.
(The pivot function is a function that can rotate the display 90 degrees. Since the JMA-1030 series radar screen is a vertical screen display, the top and bottom can be displayed correctly.)




The JMA-1030 has a 3 channel NMEA signal input allowing connections to navigation equipment such as GPS; for own position, waypoints and speed for MARPA tracking. It also allows a GPS compass connection for your heading (and MARPA tracking) and/or AIS for displaying targets.

Multi speed scanners

Multi speed scanners

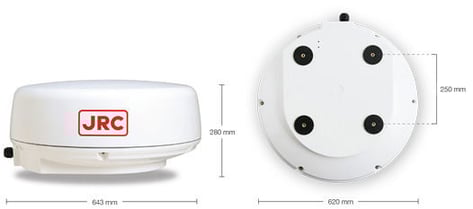

With this new radar, JRC introduces two new small and light weight 4kW multi-speed scanners available in a 1.5ft (450mm) and 2ft (620mm) radome. The supplied 10m*1 cable allows you to install the dome on a mast, radar arch, or mounting on a pole. The scanners features a new high rate PRF*2, which allows for a highly accurate short range detection.

Depending on vessel operations and user preferences, magnetron life can be extended by lowering the output power with the economy mode and/or user selectable transmitting intervals with the timed TX mode*3.

In the box*4

  • Scanner 1.5ft or 2ft
  • Display, Bracket, Sun cover
  • Scanner cable (10m)
  • Power cable (2m)
  • Spare parts
  • Manual


Scanner to display cable 5m CFQ9924-5
Scanner to display cable 15m CFQ9924-15
Scanner to display cable 20m CFQ9924-20
Scanner to display cable 30m CFQ9924-30
NMEA cable (1m) 7ZCRD1689A
Power supply NBD-865
Overhead mounted kit MPXP35253
RGB unit NQA-2447
LCD protection kits CML-883

*1 Longer cables are optionally available
*2 Pulse Repetition Frequency (PRF) resembles the number of pulses transmitted each second
*3 Reducing output power reduces radar sensitivity
*4 The standard scope of supply may vary depending on sales region


  JMA-1032 JMA-1034
Display type Raster scan PPI
Scanners NKE-1066 NKE-2044
Antenna length 1.5 ft (450 mm radome) 2 ft (620 mm radome)
Output power 4 kW 4 kW
Transmitting frequency 9410 ±30 MHz
Beam width Horizontal 5.2°, Vertical 25° Horizontal 4°, Vertical 25°
Rotation speed 16, 20, 24, 27, 30, 36, 42, 48 rpm
Pulse width 0.08 µs/4000 Hz,
0.08 µs/2250 Hz,
0.13 µs/1700 Hz,
0.25 µs/1700 Hz,
0.5 µs/1200 Hz,
0.8 µs/750 Hz
0.08 µs/4000 Hz,
0.08 µs/2250 Hz,
0.13 µs/1700 Hz,
0.25 µs/1700 Hz,
0.5 µs/1200 Hz,
0.8 µs/750 Hz,
1.0 µs/650 Hz
Range scale 0.0625, 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48*1 NM
Adding range scale 1, 2, 4, 8, 16, and 32*1 NM
Display 7-inch wide VGA (WVGA) color LCD touch display (800 by 480 pixels)
Operation Touch, buttons and push/rotary knob
Presentation mode RM: Head/North/Course-up, TM: North/Course-up
Trail indication 15 sec to 15 min, 30 sec to 30 min, 1 min to 1 hr, 30 min to 24 hr, continuous
Off center Move to 4 pre-defined coordinates from the default center position
Guard zone Built in
Alarms 8x scanner, 6x display, 16x receive data
Tracking targets*2 10 built-in (automatic tracking), Tracking range up to 20 NM
AIS targets*2 50 built-in (stores up to 500 ship static data)
Input sentences GGA, RMC, RMA, GNS, GLL, VTG, DPT, DBT, MTW, VDM, VDO, ALR, MWV, VWT, VWR, RMB, BWC, BWR (navigation) THS, HDT, HDG, HDM (bearing), VBW, VHW (speed)
Output sentences RSD, OSD, TTM, TLL, TTD, GGA, RMC, GNS, GLL, VTG, THS, HDT
Output signals External buzzer, external monitor (optional RGB unit NQA-2447 required)
USB Copy/restore internal settings, software update
Languages English, Spanish, Turkish, Russian, Japanese, Indonesian, Thai, Malaysian, Vietnamese, Chinese, Korean
Power/Consumption 12-24 VDC -10 %+30 %, Maximum 50 W
Ambient conditions Operation temperature: -25 to 55 °C (scanner), -15 to 55 °C (display)
Relative humidity: 0 to 93 % non-condensing
Waterproof/dustproof: IP26 (scanner), IP55 (display)*3

*1 Only available on the JMA-1034
*2 Data from other equipment required
*3 Optional RGB unit does not meet IP55

7-inch display RoHS NCD-2256

7-inch display RoHS
Weight : 1.7 kg

1.5ft scanner RoHS NKE-1066

1.5ft scanner RoHS
Weight : 5 kg

2ft scanner RoHS NKE-2044

2ft scanner RoHS
Weight : 10 kg
