Inmarsat C JUE-87

  • INMARSAT transmitter
  • Ship Earth Station

JUE-87 is the latest all-new two-way Inmarsat C global data communication solition

JUE-87_KV02_1600x600

Features

The JUE-87 is a highly reliable mobile satellite data communication system, having the ability to handle commercial, operational and personal messages just as easily as distress and safety communications.

About the Inmarsat C system

JRC JUE-87 Inmarsat C is a digital satellite communication system whereby data can be encoded into digital format, whether text, numeric data from instruments or other information in digital format can be sent and received over the system. A simple user interface allows sending and receiving messages.

JUE-87_en_02

All-in-one Internally Mounted Equipment

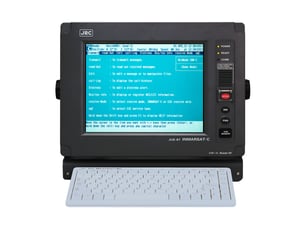

The new Internally Mounted Equipment (IME) with display features a high brightness color LCD with an extra wide viewing angle.

Data terminal unit is integrated into the Inmarsat C IME allowing for a straightforward installation approach and is ready for our Remote Maintenance System (RMS).

USB

The USB 2.0 port located on the front panel allows you to connect a mass storage device to save and load messages.

JUE-87_en_03

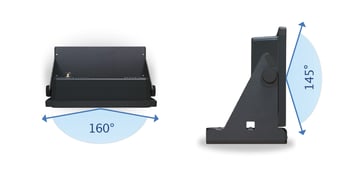

The display

Our new IME with 10.4-inch display features a color display with a variety of coloring menus. Factory default color is Ocean Day. The LCD gives you a bright picture with excellent color consistency, even when you're viewing the display from the side.

Interfacing

Enhanced Group Calling (EGC)

JRC total Inmarsat C solution incorporates the capability known as Enhanced Group Calling (EGC), which enables authorized information providers to broadcast international safety and commercial service messages to selected groups of ships. EGC is available as standard on the JUE-87 terminal.

Enhanced Group Calling (ECG)
Enhanced Group Calling (ECG)
JCmail

JCmail

Your vessels ID, date/time and the present position, course and speed is acquired manually or automatically from the integrated GPS receiver, or the vessel's navigational interface, allowing you to send a distress alert simply by pressing and holding the dedicated built-in distress button, either on the IME or a separate unit.

JUE-87_en_04

Distress alert

Your vessels ID, date/time and the present position, course and speed is acquired manually or automatically from the integrated GPS receiver, or the vessel's navigational interface, allowing you to send a distress alert simply by pressing and holding the dedicated built-in distress button, either on the IME or a separate unit.

LRIT as standard

The JUE-87 Inmarsat C model comes standard with Long Range Identification and Tracking (LRIT), an IMO required global monitoring system of the ship's movement. The purpose of LRIT is to increase maritime domain awareness and to improve maritime security.

SSAS add-on kit

The Ship Security Alerting System (SSAS) is a system that contributes to the IMO's efforts to strengthen maritime security and suppress acts of terrorism and piracy against shipping. In case of attempted piracy or terrorism, the vessel's SSAS function can be activated, and appropriate law-enforcement or military forces can be alerted if necessary.

Flexibility

New Externally Mounted Equipment (New)

New Externally Mounted Equipment

A completely new design of Externally Mounted Equipment (EME), compliant to RoHS, offering a new level of accuracy with a high performance Radio Frequency (RF) filter built in. It has the same cable management philosophy resembling all other Inmarsat products, requiring only a single coax cable between EME and IME.

Interfacing

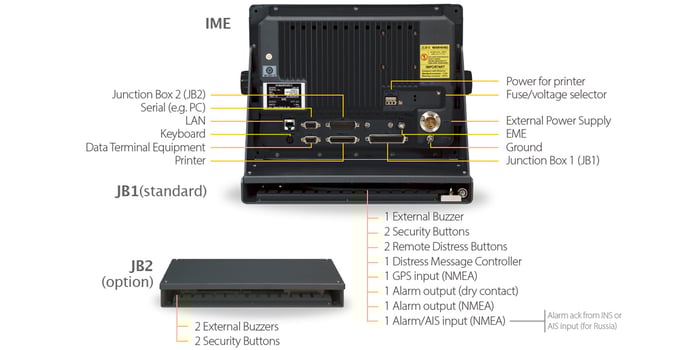

The JUE-87 offers all the interfacing you need with Junction Box 1 (JB1) integrated in the bracket. In case of flush mounting, the bracket and Junction Box can be easily separated from the IME.

JUE-87_en_05

JUE-87_en_06

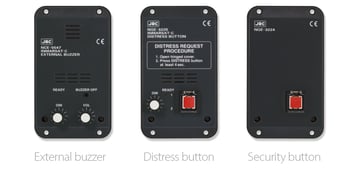

New accessories

Along with our introduction of the new JUE-87, we introduce new accessories that compliment our unified design approach.

JUE-87_en_07

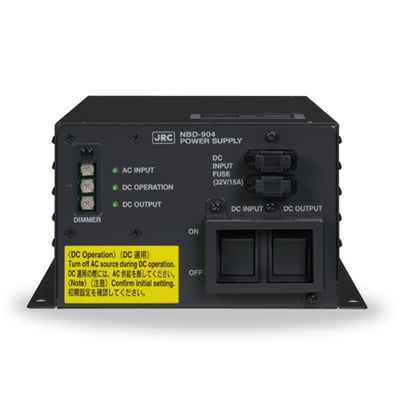

New power supply

JRC is introducing a new external power supply, half the size of the power supply found in the previous generation JUE-85 including a 65 % weight reduction.

Self diagnosis

JRC JUE-87 Inmarsat C Mobile Earth Station(MES) incorporates various self-diagnostic programs to facilitate maintenance and troubleshooting, reporting any possible problems it might suffer. The results are displayed on the display of IME.
These functions allow for easy maintenance and more reliability. In addition, automatic testing for performance verification and commissioning via the satellite channel is also available.

New power supply (New)

Remote Maintenance System (RMS)

JRC's unique RMS allows remote monitoring of bridge equipment from ashore. Using JRC VDR and Inmarsat FB satellite communication equiipment, JRC can establish a highly secured connection to the vessel and cost-effectively and accurately determine the operating status of the JRC equipment while at sea.
JRC's RMS just got better with the addition of the new JUE-87 which allows connected satellite communication equipment's, such as JUE-251 & JUE-501, status to be polled from the shore.

JUE-87_en_14

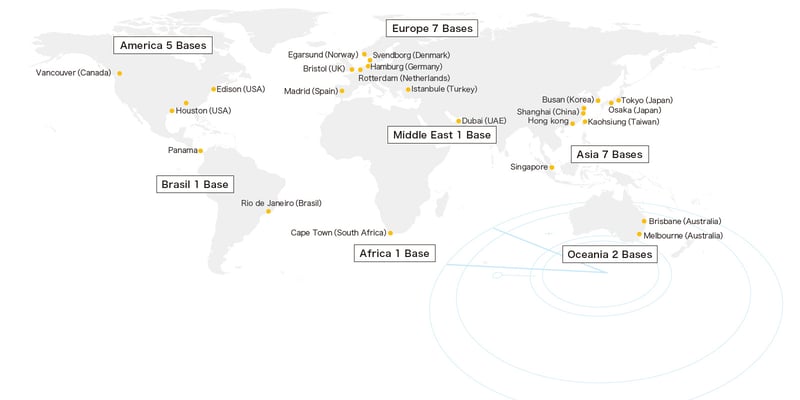

JRC global service network (Star Network)

JRC has been providing sales and support of products.
Today, JRC offers comprehensive assistance through its organisation, in partnership with a worldwide StarNetwork of over 200 fully trained and qualified partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.

JUE-87_en_15

System diagram

JUE-87_en_08

What's standard?

  • IME
  • EME
  • Printer (+paper)
  • External Power Supply
  • Cables
    Signal
    ・EME to IME (30 m)
    ・IME to printer (2 m)
    Power
    ・Power supply to IME (2.3 m)
    ・IME to printer (2 m)
  • Installation materials
  • Spare parts
  • Manuals

What's optional?

Remote Distress Button NQE-3225
External Buzzer NCE-5547
Security Button NQE-3224
Junction Box 2 (JB2) NQE-3223
Data Terminal Equipment NDZ-227
Keyboard NDF-369

Specs

Model JUE-87
Inmarsat type approved ✓(Class 2)
RoHS
Display 10.4-inch color LCD, 640x480 pixels 450 cd/m²
Frequency TX : 1626.5 to 1646.5 MHz
RX : 1537.0 to 1544.2 MHz
Channel spacing 5 kHz
E.I.R.P. 14±2 dBW (at 5° angle)
G/T -23.0 dB/K min
Modulation TX/RX : 1200 symbols/sec BPSK
Data rate TX/RX : 600 bps
Interface External Buzzer : 3 ports (JB1x1, JB2x2)
Remote Distress Button : 2 ports (JB1x2)
Security Button : 4 ports (JB1x2, JB2x2)
GPS input (NMEA) :1 port (JB1)
Alarm output (dry contact) : 1 port (JB1)
Alarm output (NMEA) : 1 port (JB1)
Alarm / AIS input (NMEA) : 1 port (JB1)
LAN port (RJ-45) : 1 port (IME)
DTE port (serial) : 1 port (IME)
Keyboard : 1 port (IME)
Printer : 1 port (IME)
Serial : 1 port (IME)
Distress Message Controller : 1 port (JB1)
Ambient condition Operating: EME -35 to +55 °C, IME -15 to +55 °C
Relative humidity: 0 to 95 % non-condensing
Icing: up to 25 mm (EME)
Precipitation: up to 100 mm/hour (EME)
Wind: up to 100 knots (EME)
Internally Mounted Equipment (IME)
Model NTF-318
Power 24 VDC (+19.2 to 31.2 V)
Consumption Transmit: 100 W, Standby: 15 W
Externally Mounted Equipment (EME)
Model NAF-253GM (Unified pole mounting bracket)
Antenna Type: helical, Pattern: hemisphere, Polarization: right-hand circular
Printer
Model NKG-900
Line interface Parallel
Power 24 VDC (+19.2 to 31.2 V)
Consumption Approx. 35 W
External Power Supply
Model NBD-904
Line Voltage 100 to 230 VAC, 24 VDC
Line voltage selection 90 to 264 VAC, 19.2 to 31.2 VDC
Output 24 VDC 6.5 A continuous
Option
External Buzzer NCE-5547 Max. 3 units
Remote Distress Button NQE-3225 Max. 2 units
Data Terminal Equipment NDZ-227 Max. 1 unit
Bracket for Data Terminal MPBP31721
Keyboard for Data Terminal NDF-369
Security Button NQE-3224 Max. 4 units
Junction Box2 NQE-3223
Wall Mount Adopter for Buzzer/Button 7ZZSC0102
Coaxial Cable CFQ-5922A4 (40 m), CFQ-5922A5 (50 m)

EME

JUE-87_en_09

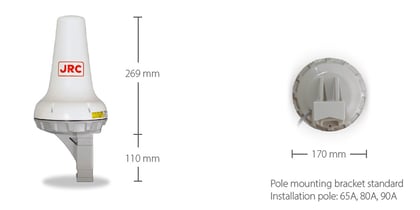

NAF-253GM Mass : 2.4 kg

IME

JUE-87_en_10

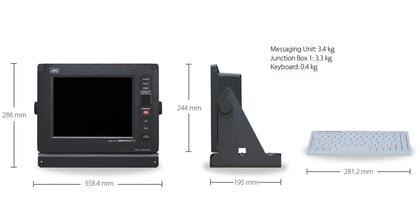

NTF-318 Mass : 7.1 kg

Printer

JUE-87_en_11

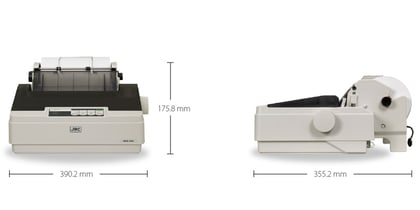

NKG-900 Mass : 4.8 kg

External Power Supply

JUE-87_en_12

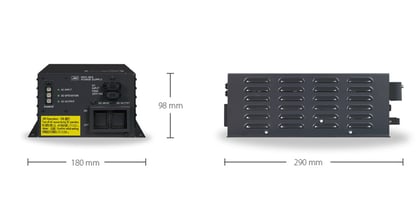

NBD-904 Mass : 2.6 kg
