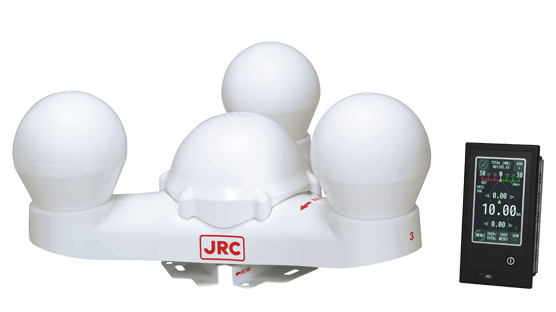

- Speed Log

Accurate ships speed and distance with your fingertip operation
- Comply with IEC 61023(Ed.3), SDME standards for the ships of 50,000GT and greater
- Provide ship speed with high accuracy 0.02kn or 0.2%
- Offers transverse speed at bow and stern along with longitudinal speed, ROT and total/trip distance with the satellite signals
- Color LCD display with touch panel provides clear display and easy operation
- JRC original Remote Maintenance System (RMS) applicable
System
System Diagram
Standard components
- GPS Compass Sensor : NNN-21
- Distribution Processor : NQA-7010
- Main Display : NWZ-510SDG
- Data Cable : H-CFQ-7248
- Main Display Communication Cable : CFS-5680
- LAN Plug Connector : TM21P-88P(07)
- Spare part : H-7ZXNA3004
- Instruction manual : H-7ZPNA3206
Optional components
- Remote Display : NWZ-650SDR/NWZ-840SDR
- Multi-information Display (MID) : NWZ-4610
- Wing Display : NWW-61T
- Digital Display : NWW-62TA/TB
- Distance Counter : NWW-7
- Analog Display : NWW-24/NWW-25/NWW-26
- Dimmer Unit : NCM-227/NCM-329
- Remote Display Communication Cable : CFS-6880
- GPS Compass Sensor Connection Cable : H-CFQ7248-30/CFQ-7249/H-CFQ-7249-10
- Multi-information Display Communication/Power Supply Cable : CFQ-5766D/CFQ-5766F
- Junction Box for GPS Compass Sensor : NQE-7720
- Junction Box Mouting Bracket : MPBP31612
- Mounting Rack : MPBX44117
- Bird-hazard Preventive Kit : MPXP34012A

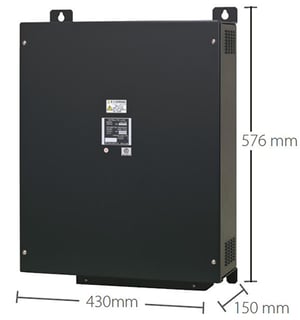

Dimension
GPS Compass Sensor NNN-21 Mass:Approx.5.9kg

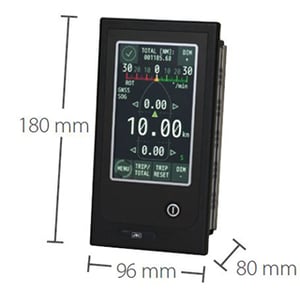

Main Display NWZ-510SDG Mass:Approx.1.2kg
Main Display NWZ-510SDG Mass:Approx.1.2kg
Spec
Name | Satellite log | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
System | GPS satellite | |||||||||||
Receive Freq. | 1575.42MHz ±1MHz(C/A code) | |||||||||||
Speed range | (Bow P/S) -99.99~99.99kn (Fore/Aft.) -99.99~99.99kn (Stern P/S) -99.99~99.99kn |
|||||||||||
Distance run range | 0~999999.99NM | |||||||||||
Speed accuracy | 1% or 0.1kn whichever value is greater 0.2% or 0.02kn whichever value is greater (5 satellites or more) |
|||||||||||
Distance accuracy | 1% or 0.1NM in each hour whichever value is greater | |||||||||||
Speed Indication | Integer 2-digit + decimal 2-digit | |||||||||||
Display unit | Vertical 5" WVGA with touch panel | |||||||||||
Interface port | Input IEC 61162-1 ×3 Output IEC 61162-1 ×8 |
|||||||||||
Power supply | 100V or 230V AC ±15%,50/60Hz,1Φ | |||||||||||
Power consumption | 110VA max | |||||||||||
Operating temp | GPS compass sensor -25~55℃ Distributor -15~55℃ Main display -15~55℃ |
