- Sonar
Stabilizer function never misses targeted fish
school in stormy seas
- Higher output and longer pulse
- Stainless steel dome transducer
- Quick variable beam angle
- Easy to use keyboard
- SXGA pixel resolution (1280 x 1024)
Features
Enhanced fish tracking performance by the stabilizer function
The high-precision stabilizer function installed in this compact sonar ensures tracking of a target fish school even in rough seas.

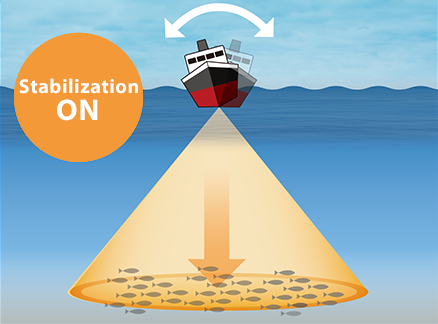

Stable beams keeping targets on track

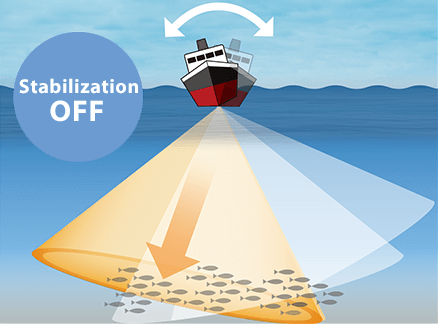

Beams unstable due to ship motions
Newly designed transducer with significantly expanded detection range

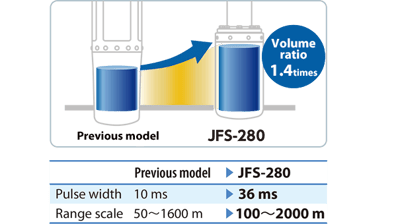

High beam output and long pulse by increasing the size (1.4 times of its predecessor)

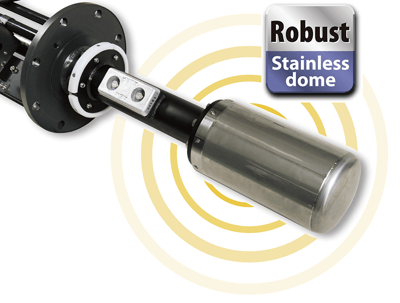

- Stainless steel dome transducer with a strong anti-corrosion feature, contributing to a reduction of maintenance cost
- Safety design that automatically stores the transducer when the vessel speed exceeds the specified level
- Hoisting unit designed to shut down the power immediately at abnormality

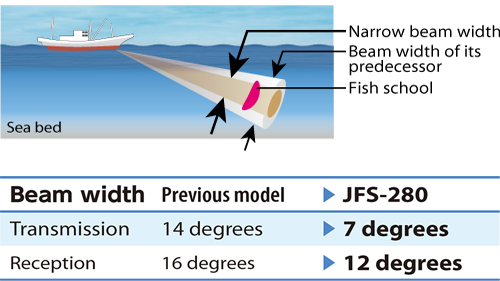

Enhanced visibility by the narrow-angle beams

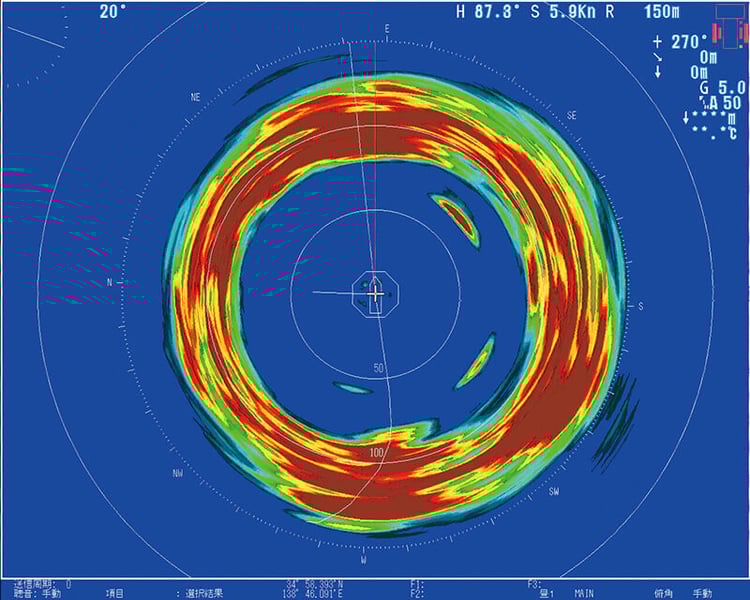

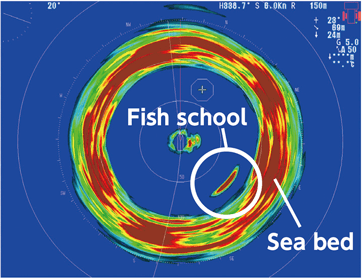

Quick beam angle change function to detect fish schools easily Narrow angle beams provide a sign of a weak reflection of a fish school as well as improved visibility of schools of shoal fish and rock fish.
Optimum mode selection according to the operation condition

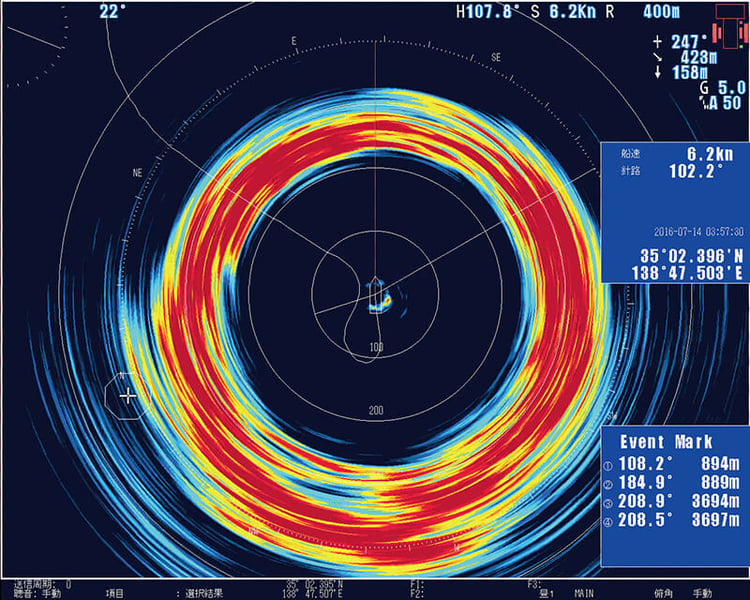

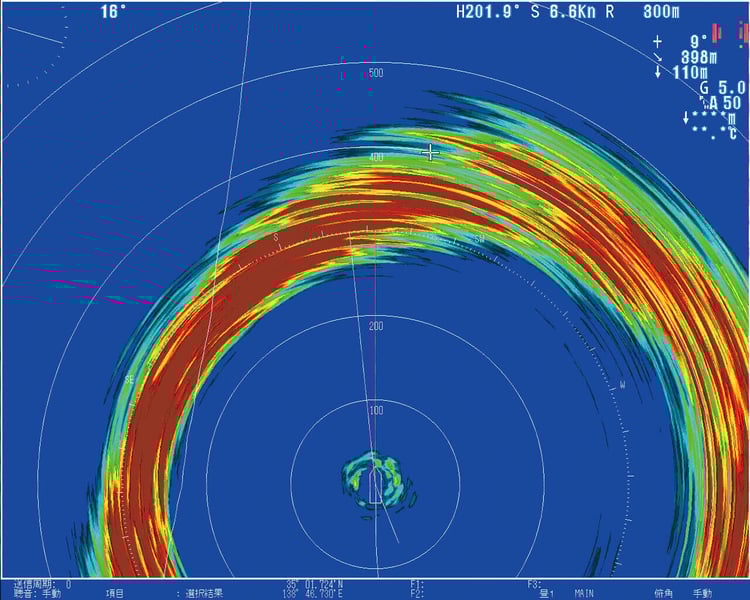

The JFS-280 provides high-definition images covering 32 color video output with a sharp 19-inch high resolution LCD (1280 x 1024 pixels). The JFS-280 clearly displays the distribution and density of a fish school. You can select the most suitable mode according to your operation condition.
Normal view
Full screen
Off-center
High operability inherited from the successful predecessor

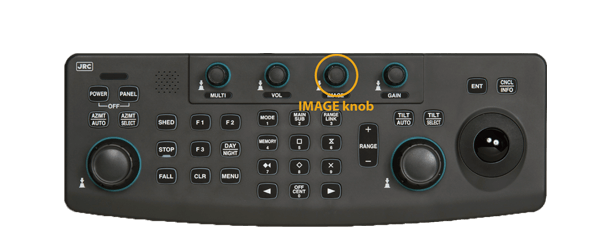

Five optimum fish types are preset in the IMAGE knob. You can select the suitable operation simply by turning the knob.

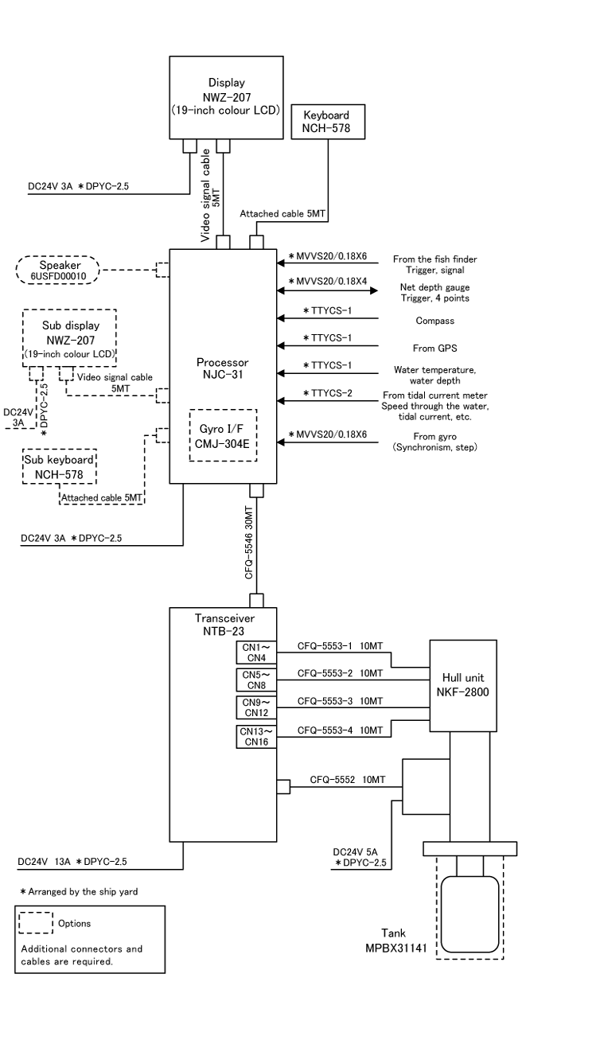

Components
| Item name | Model | Remarks |
|---|---|---|
| Display | NWZ-207 | |
| Keyboard | NCH-578 | |
| Processor | NJC-31 | |
| Transceiver | NTB-23 | |
| Hull unit | NKF-2800 | |
| Transducer | CHC-2800 | Included in NKF-2800 |
| Connection cable and spare parts |
Option
| Item name | Model |
|---|---|
| Tank | MBPX31141 |
| Speaker | 6USFD00010 |
| Gyro I/F | CMJ-304E |
| Desktop frame | CWB-1594 |
| Sub display | NWZ-207 |
| Sub keyboard | NCH-578 |
Dimensions
Unit : mm

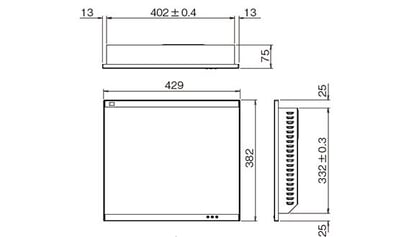

Display NWZ-207Weight : Approx. 6 kg

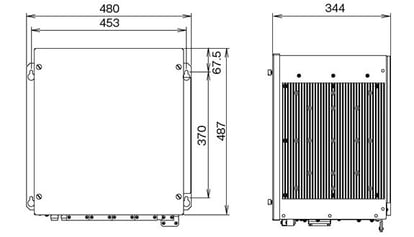

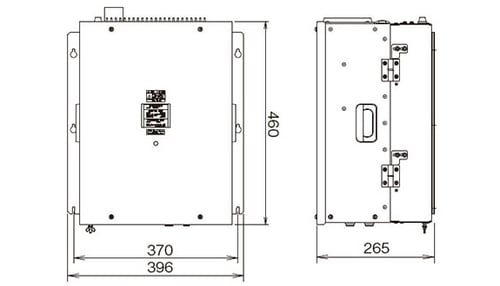

Transceiver NTB-23Weight : Approx. 34 kg

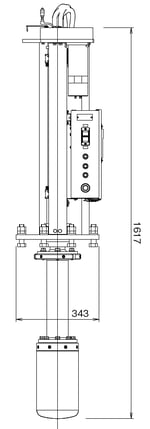

Hull unit NKF-2800Weight : Approx. 110 kg

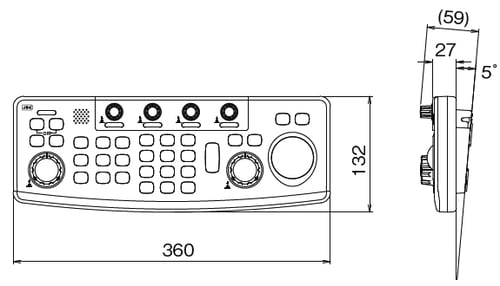

Keyboard NCH-578Weight : Approx. 1.3 kg
Processor NJC-31Weight : Approx. 11 kg
Systems
Specs
| Display | |
|---|---|
| LCD size | 19-inch color LCD SXGA |
| Pixel count | 1280 x 1024 pixels |
| Display color | Sonar imaging 32 colors |
| Display motion | Head up, North up |
| Display mode | Full screen, normal screen, Off center = approx. 1.5 x normal range (max. less than 5000m) |
| Split screen mode | Audio split screen, fish finder split screen |
| Information display | Ship information (latitude and longitude, speed relative to ground, speed relative to water,date and time) Water temperature and water depth information (graph) Current display (5 layers, graph, values) Net depth meter (4 points, graph, values) Fish school information (histogram) Event information (5 points, direction, distance) |
| Added features | 5 types of fish image settings, interference elimination, clutter, signal processing, automatic elevation controls, fish school alarm, and auto follow for fish schools |
| Range | 16 preset ranges Select from 24 types from 100 m to 2000 m 4 types of preset ranges (changeable) |
| Audio output | 800 Hz/2W, load resistance 4Ω, manual rotation/automatic oscillating sound |
| Transmission | |
| Transmission mode | OMNI (full-perimeter transmission): pulse width modulation (PWM) D previously amplified |
| Transmission frequency | 62kHz |
| Pulse width of transmission |
0.4 ms to 36 ms (range link / function for manual change available) |
| Transmission power reduction |
11 levels (switch manually) |
| Reception | |
| Reception mode | Straight amplifier, full digital beam form |
| Other functions | RCG, AGC, TVG |
| Stabilization | Full circumference ±20° vertical oscillation and horizontal oscillation (Depression angle range: −5° to 30°) |
| Tilt range | −5° to 60° |
| Hoisting device | |
| Stroke | 600mm |
| Time for vertical operations |
Under 20 second |
| Resistance to the speed of the ship |
Maximum 18 kn (16kn during vertical operations) Function for auto retraction triggered by speed of the ship included |
| Power supply | DC 21.6 to 31.2 V |
| Power consumption | Average 0.5 kW, maximum 30 A (when beginning to hoist) |
