- Sonar
Flexible frequency selection to give you better potential for a more profitable catch
- Digital signal processing for optimized short and long range detection
- Multiple display modes available to fit various fishing scenes
- Connect your own display (VGA resolution)
- Backlit icon-based keyboard supports intuitive operation
- Switch instantly between functions through six preset memory keys
Features
Adanced technology
The JFP-185 searchlight sonar uses a wide band transducer. The most suitable output frequency in a band from 130 to 210 kHz can be selected in 0.1 kHz steps, depending on the fishing method and the target species in various depths. The flexible selection of frequencies also enables the fishing vessel to operate at a different frequency than those of surrounding vessels.
- Black box design
- Multiple display modes
- Space saving hoist unit
- Easy operation
- Data transfer by USB
- Enhanced presentation modes
- Selectable frequencies
- Advanced keyboard
- Remarkable scanning speed
- Primary/secondary display (VGA output)

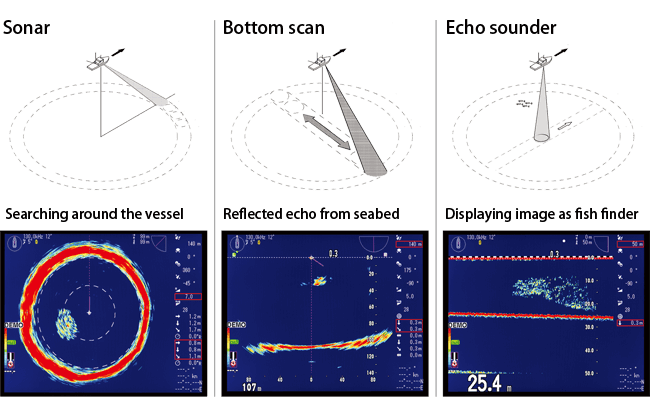

Various display modes
The sonar integrates multiple display modes, facilitating a valuable working environment by illuminating the underwater scene with a beam of sonic energy rotating through 360 degrees. The JFP-185 provides a range of display modes to suit the search task.
Operation
Black box configuration
The searchlight sonar consists of a compact processor, dedicated keyboard and high performance transducer, allowing for a flexible installation approach in confined spaces. You can choose your own display, as long as it supports VGA.
Optimum tilting
The center of the beam can be set in 1-degree increments from 5 degrees from the horizontal, to 90 degrees from the sea surface. The transducers ultra sonic beam sweeps a specific sector and bearing. When pointing straight down, the beam will give a high definition picture of the sea floor. As the beam moves from the perpendicular to the horizontal, bottom definition reduces and fish detection improves.

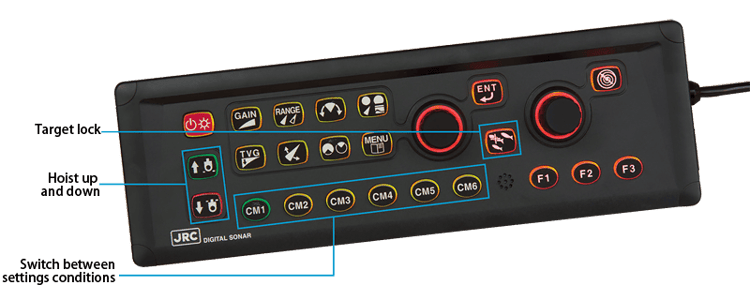

User friendly keyboard
With the icon based keyboard operation full control of the searchlight sonar is made easy. The onetouch menu keys are conveniently backlit and are highlighted with the green color once selected, making operation extremely useful in low light settings.
In the box
- Hull unit (transducer)
- Processor
- Keyboard
- Position alarm
- Cables
- Installations materials
- Manual (English)
Accessories
- Remote control
- Tanks (PVC, FRP)
- Shaft guide (FRP)
- Power supply
- Junction box
- Display
Tech Specs
| Output power (RMS) | 1.5 kW | |
|---|---|---|
| Output frequency | 130 to 210 kHz (0.1 kHz steps) | |
| Tilt angle | -90 to 5° (1° step) | |
| Beam angle | 8 to 12° | |
| Display resolution | 640 x 480 (VGA) | |
| NMEA ports | Total 1 : input / output | |
| Power supply | 10.8 to 31.2 VDC | |
| Power consumption | 70 W or less (24 VDC) | |

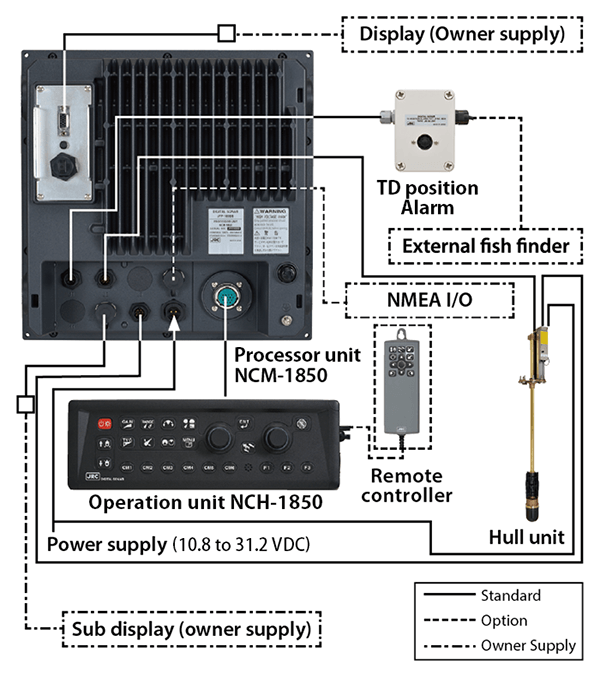

System
Configulation
Standard equipment configuration list
- Processor unit : NCM-1850
- Operation unit : NCH-1850
- TD position alarm / Ext. Sync. Box : JB-36
- DC power cable : CW-259-2M
- Connecting cable : CW-376-5M
- Cable for external monitor : CW-576-0.5M
- Transducer unit extension cable : CW-590-15M
- Audio system plug : MP-105LC-RoHS
- Fuse : F-7161-10A/N30C-125V/Cylinder (Φ6.4 x 30)
- Instruction manual : H-7ZPNA4627A
- Quick reference : H-7ZPNA4637
- Installation manual : H-7ZPNA4631A
- TD shaft : ESR-160_32679C-2
- Hull unit : NKF-1850
- Transducer unit : DHU-6302
Option list
- Remote controller : NCH-1851
- TD tank : ESR-1506/30927C-2/30927C-3/ESR-1507/FRP TD tank set (Including shaft guide)
- Shaft guide : ESR-1510/ESR-1511
- Power rectifier : NBA-1850
- AC power cable : VV-2D8-3M
- Connecting cable : CW-372-5M/CW-373-5M
- Cable for external monitor : CW-560-2M
- Junction box : JB-35
- TD shaft : ESR-1504/32679C-2/32679C-3/40Φ-4t-3000mm
- Monitor : 17inch LCD monitor
- External speaker : NP-108
Dimensions

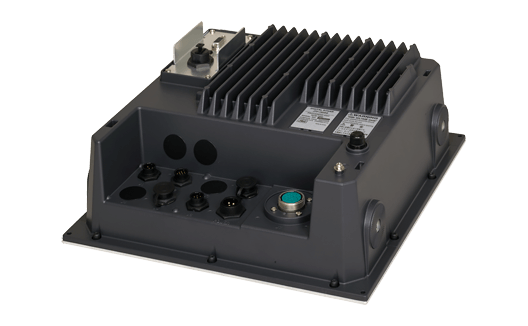

Processor unit
NCM-1850 Mass : 5.1 kg

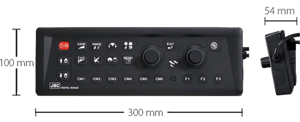

Operation unit
NCH-1850 Mass : 1.1 kg
Hull unit
NKF-1850 Mass : 44 kg

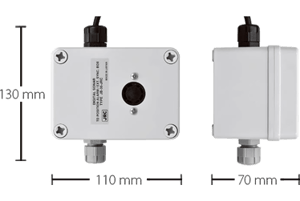

TD position alarm / Ext. Sync. Box
JB-36 Mass : 0.25 kg

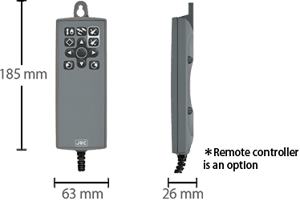

Remote controler
NCH-1851 Mass : 0.31 kg
Spec
| Model | JFP-185BB | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (RMS) | 1.5 kW | |||||||||||
| Output frequency | 130 to 210 kHz | |||||||||||
| Tilt angle | -90 to +5° (1° step) | |||||||||||
| Beam angle | 8 to 12° | |||||||||||
| TD stroke | 150 to 380 mm (recommended value 150 mm) | |||||||||||
| Display type | Owner supply (VGA compatible output through RGB connector) | |||||||||||
| Basic ranges | 10 to 1000 m, 30 to 3000 ft, 10 to 600 fm, 10 to 700 l.fm (selectable from 8 preset position) | |||||||||||
| Range units | m, ft, fm, l.fm | |||||||||||
| Scanning sector angles | Sonar mode | 5° step : 5°, 25°, 45°, 85°, 125°, 165°, 205°, 360° 10° step : 10°, 30°, 50°, 90°, 130°, 170°, 210°, 360° 15° step : 15°, 45°, 75°, 105°, 135°, 165°, 225°, 360° 20° step : 20°, 60°, 100°, 140°, 180°, 220°, 260°, 360° |
||||||||||
| Bottom scan mode | 3° step : 3°, 27°, 45°, 63°, 93°, 17°, 147°, 177° 5° step : 5°, 25°, 45°, 65°, 95°, 115°, 145°, 175° |
|||||||||||
| 360° scanning time (extracts) |
Scanning Range (m) | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 180 | 200 | 240 | 400 |
| Scanning time (sec) 5°step |
6.3 | 8 | 10 | 11.8 | 14 | 15.8 | 19.5 | 21.6 | 23.5 | 27.5 | 43.3 | |
| Scanning time (sec) 10°step |
3.7 | 4.7 | 5.6 | 6.5 | 7.6 | 8.6 | 10.6 | 11.5 | 12.5 | 14.4 | 22.4 | |
| Scanning time (sec) 15°step |
3.3 | 3.7 | 4.3 | 4.9 | 5.7 | 6.4 | 7.9 | 8.2 | 8.9 | 10.3 | 15.7 | |
| Scanning time (sec) 20°step |
3.3 | 3.4 | 3.8 | 4.2 | 4.8 | 5.2 | 6.4 | 6.6 | 7.3 | 8.1 | 12.2 | |
| Bearing center | 1° step | |||||||||||
| Presentation modes | Sonar, Off-center, Bottom scan, Echo sounder | |||||||||||
| Off-center | Fore, Back, Left, Right | |||||||||||
| Target lock | Reverse, Horizontal, Horizontal + vertical, Maker + horizontal, Maker + vertical | |||||||||||
| Presentation colors | 8 colors, 16 colors | |||||||||||
| Functions | TVG, Color rejection, Dynamic range, Compass display, Pulse width, Output power control, Noise rejection, A-scope, CM key, Frequency bandwidth, Image correction, Bearing display, TD auto up, etc. |
|||||||||||
| Language | English, Japanese, Korean, Traditional Chinese, Vietnamese, Spanish, Thai | |||||||||||
| Input data format and sentences | NMEA 0183 : GGA, GLL, HDG, HDM, HDT, RMC, VTG, ZDA | |||||||||||
| Output data format and sentences | NMEA 0183 : DBT, DPT, GGA, GLL, MTW, RMC, TLL, VTG, ZDA | |||||||||||
| NMEA ports | Total 1 : input / output | |||||||||||
| Power supply | Processor unit | 10.8 to 31.2 VDC | ||||||||||
| Hull unit | 10.8 to 31.2 VDC | |||||||||||
| Power consumption | Processor unit | 70 W or less (24 VDC) | ||||||||||
| Hull unit | 70 W or less (24 VDC) | |||||||||||
| Environmental condition | Operating temperature : -15 to +55 ℃ | |||||||||||
