Marine VHF Radiotelephone JHS-800S

  • VHF radio and UHF onboard communications
  • International VHF

Intuitive touch display operation

Intuitive touch display operation

Features

Marine VHF radiotelephone JHS-800S

Marine VHF radiotelephone JHS-800S

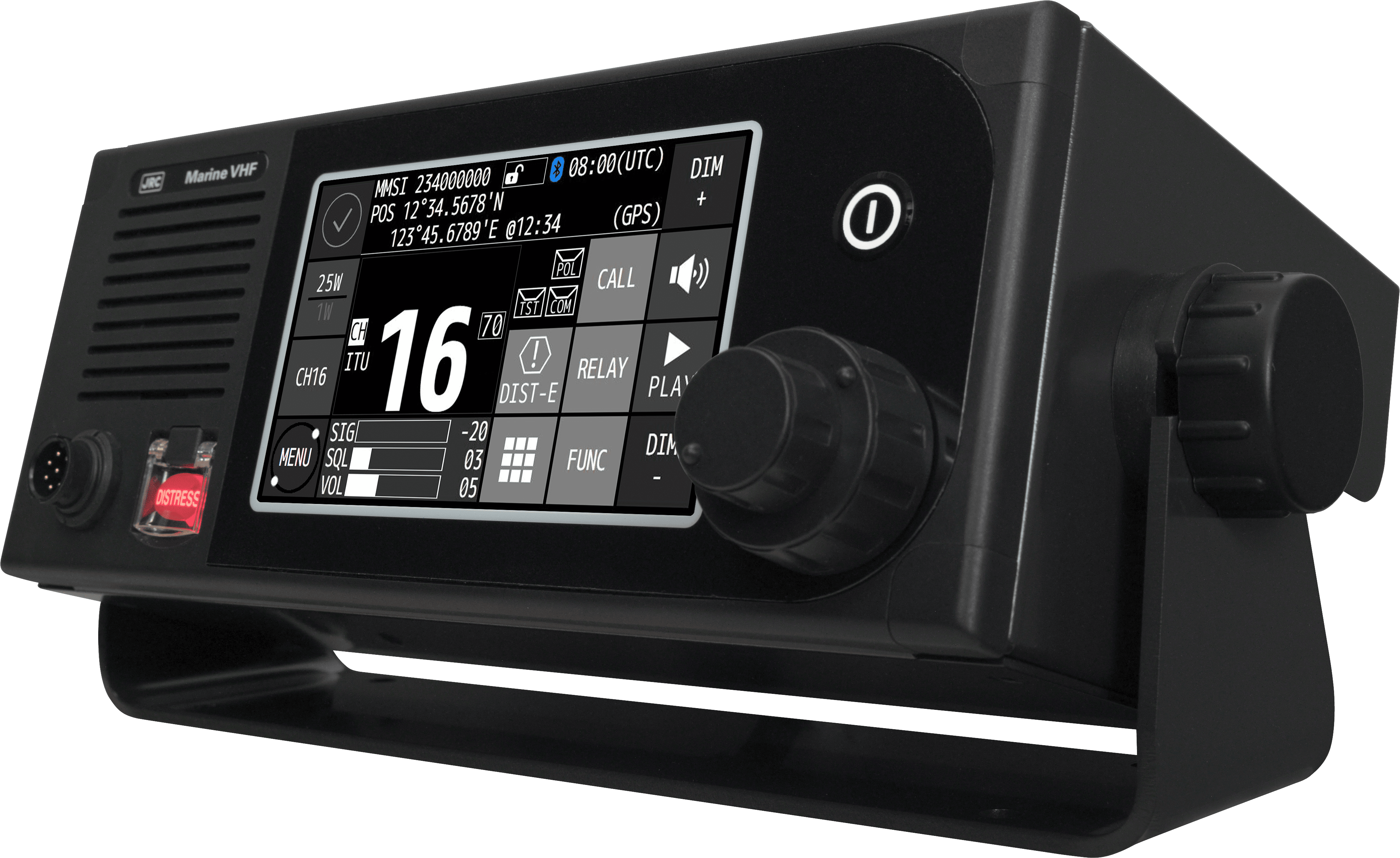

Our new 5-inch touch screen controlled Class A VHF radio (JRC model JHS-800S) featuring a uniform, corporate design with manual-free operation. The all-in-one unit (control unit with speaker, radiotelephone and DSC) has high sensitivity performance, Hi-Fi output and protection rate of IP56.

GMDSS
  • Easy operation
  • 5-inch color LCD touch display
  • Class A DSC complying latest GMDSS requirement
  • High quality sound (Hi-Fi audio)
  • Easy to install by compact design
  • Up to 4 remote controllers
  • All-in-one design
  • New designed speaker and handset
  • Bluetooth® interface for wireless speaker mic
  • Waterproof design (IP56)

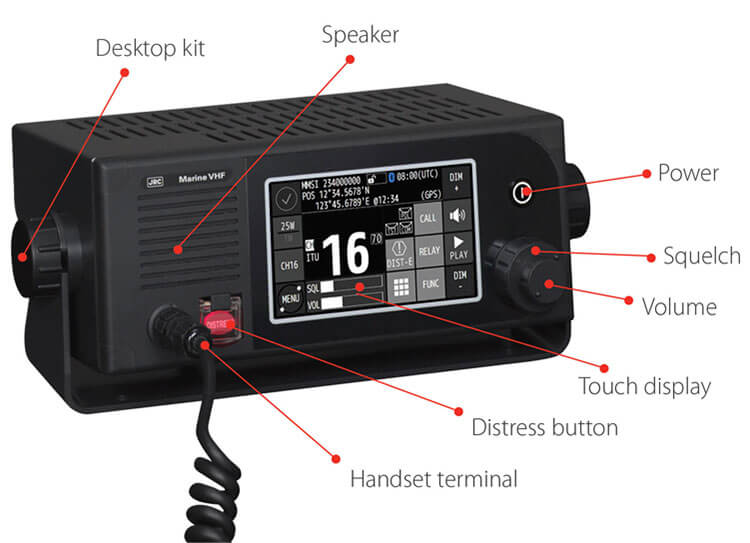

Overview

Overview

This equipment has standard functions that include regular radiotelephone and DSC (digital selective calling) for distress transmissions, as well as functions to playback and record radio calls in real-time and an easy-to-operate self-diagnosis function.

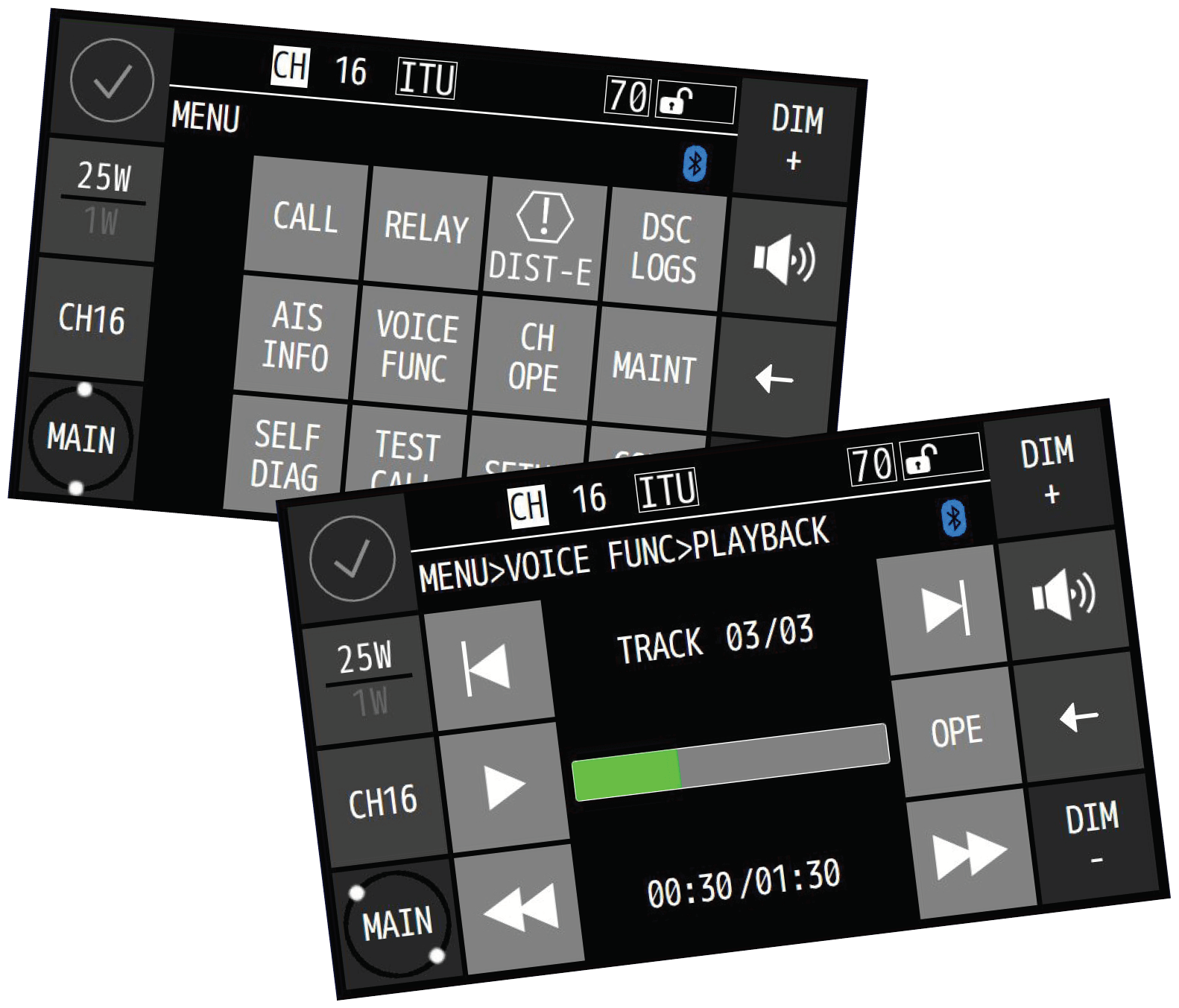

Touch display

Touch display

As of February 2019 the JHS-800S is the world's first Class A marine VHF radio-telephone featuring a 5-inch high-brightness color LCD touch screen, which makes it an outstanding innovative design.

The backlights of the LCD screen with a wide viewing angle and the operation buttons are fully adjustable, preventing interference while keeping night watch.

VHF-MFD Linkage Function

VHF-MFD Linkage Function

About VHF-MFD Linkage Function

This function facilitates the making of DSC general individual calls from an AIS target on the radar PPI screen of the JMR-9200/7200 series or on the ECDIS chart of JAN-9201/7201. When a 16ch call is used, the called ship may not notice the call since a common channel is used. This function enables the making of a call directly to a target ship only.

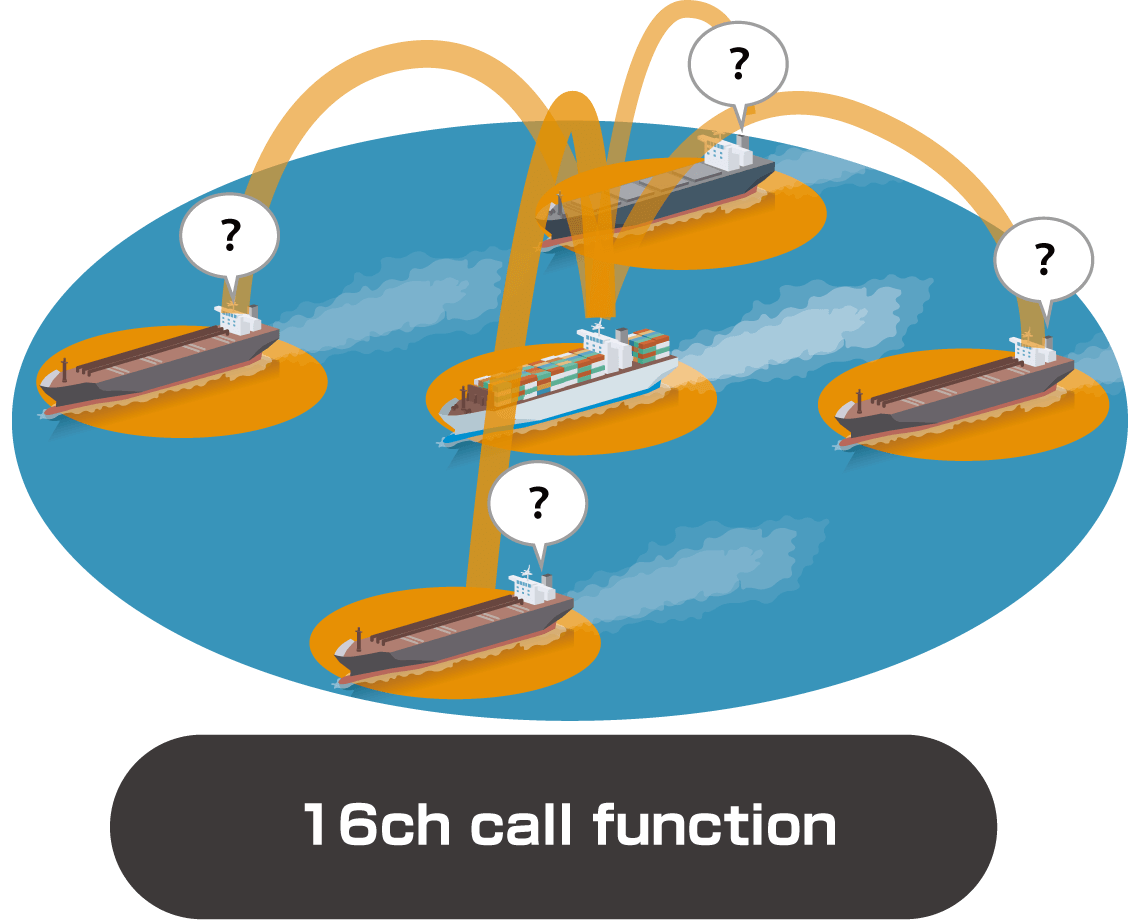

16ch call function

A target ship may not notice the call since a call is made to the unspecified recipient.

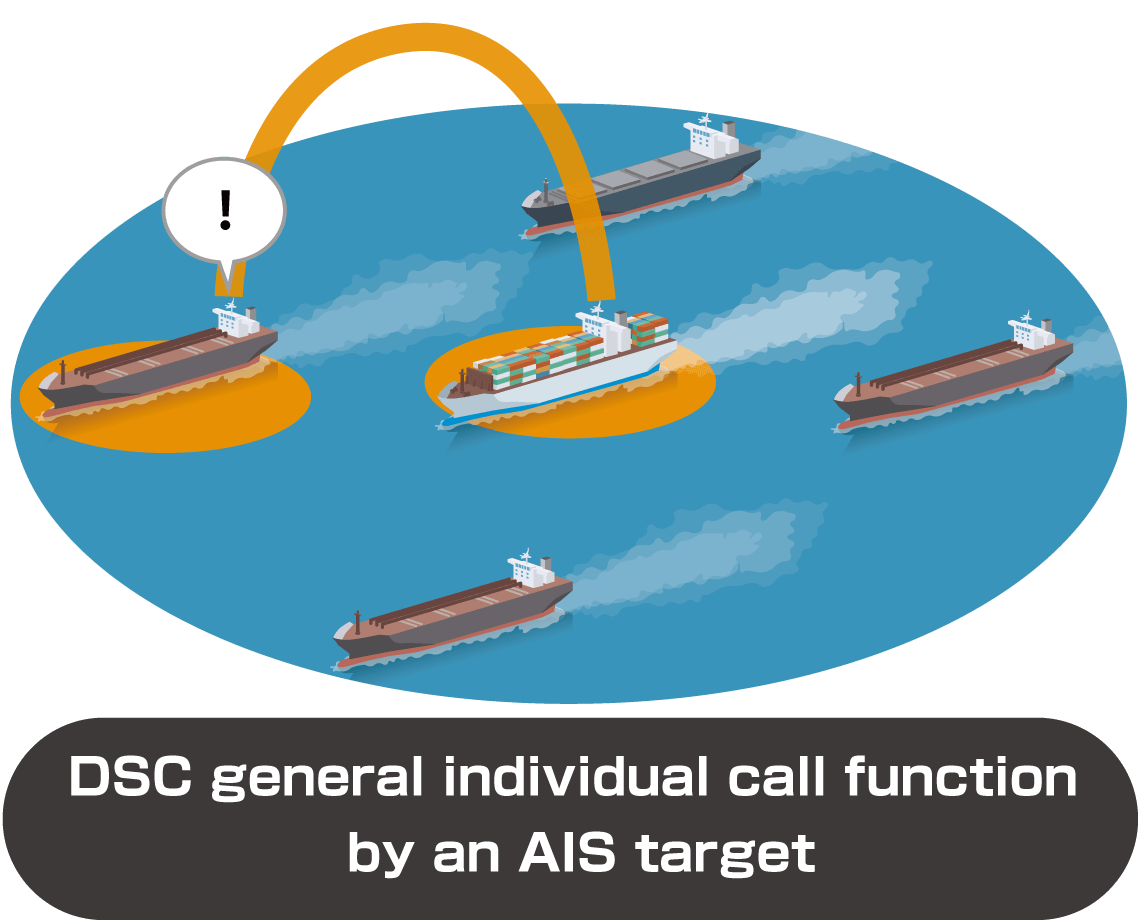

DSC general individual call function by an AIS target

A target ship notices the call as the call is made directly.

"Quick call" by VHF-MFD interface*1

A DSC general individual call can be made easily from an AIS target on the radar PPI screen or the ECDIS chart.

  • Select an AIS target on the radar/ECDIS screen.
  • Call an intended ship by pressing the "Call" button on the VHF Call screen.

Example of JMR-9200 series 26-inch display

*1: Supported by JAN-9201/7201 and JMR-9200/7200 series.

"Call flexibility" through VHF-MFD interface

Combined with the BTR-155 (optional) Bluetooth®*2-connected wireless speaker microphone, the user can talk to the caller while looking at the screen or ECDIS screen. While movements are restricted in the conventional VHF wireless telephone set by the limitation of the length of the handset cord, with this function, a call can be carried out by moving freely within the bridge as long as it is within the Bluetooth communication area.

Wireless speaker microphone BTR-155

Wireless speaker microphone BTR-155

Example of a call using wireless speaker microphone BTR-155

Example of a call using wireless speaker microphone BTR-155

*2: The call distance is up to 10 m. Our test values are not guaranteed values.

Voice recording

The received voice recording (up to 8 minutes) and playback function enables later confirmation or temporary saving of communications.

Audio

The digital audio amplifiers, equalizer function for deep-normal-high voice, specially designed speakers and new handset offer superior sound quality. A remote standalone microphone and pedalswitch can be connected to via a junctionbox. It is possible to operate the VHF with optional controllers up to 100 m away from the bridge.

Audio

System

System

Dimensions

Marine VHF Radiotelephone JHS-800S

Marine VHF Radiotelephone JHS-800S
Mass : Approx.2.1 kg

Antenna 7ABJD0004

Antenna 7ABJD0004
Mass : Approx.0.3 kg

VHF controller NCM-980

VHF controller NCM-980
Mass : Approx.0.9 kg

Handset NQW-980

Handset NQW-980
Mass : Approx.0.45 kg

img-product-jhs800s_15

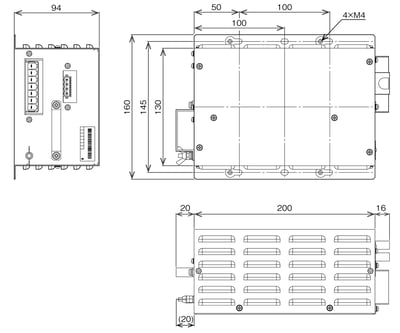

AC/DC power supply NBD-965
Mass : Approx.2.1 kg

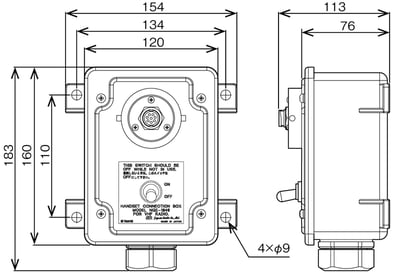

Handset connector box NQE-1845

Handset connector box NQE-1845
Mass : Approx.0.5 kg

Handset connector box NQE-1846

Handset connector box NQE-1846
Mass : Approx.1.1 kg

Handset connector box NQE-1847B

Handset connector box NQE-1847B
Mass : Approx.0.3 kg

Printer RP-D10

Printer RP-D10
Mass : Approx.0.85 kg

Printer power supply NBG-980

Printer power supply NBG-980
Mass : Approx.1.0 kg

External speaker NVS-423R

External speaker NVS-423R
Mass : Approx.1.1 kg

Specifications

Equipment name Marine VHF radiotelephone
Model JHS-800S
Standard IMO resolution A.694 ( 17 ) ( 1991 )
IMO resolution A.803 ( 19 ) ( 1995 )
IMO resolution MSC.68 ( 68 ) ( 1997 )
IMO MSC / Circ.862 ( 1998 )
IEC 60945 Ed.4.0 ( 2002-08 )
Display 5 inch TFT color LCD,
800 × 480 dots ( WVGA ),
Brightness: 1000 cd/m2
Communication modes Simplex and semi-duplex press talk system
Transmission frequency Simplex / semi-duplex : 155.000 - 163.500 MHz
Reception frequency Simplex / semi-duplex : 155.000 - 163.500 MHz
Antenna output power 6 - 25 W ( when reducing : 0.5 - 1 W )
Modulation method FM / FSK
Type of emission Radiotelephone communications : F3E / G3E
DSC / ATIS : F2B / G2B
Channel spacing 25 kHz
Frequency accuracy ±10 × 10-6 or less
Antenna impedance 50 Ω unbalanced
DSC CH70 recevier Receiver : built in
Frequency : 156.525 MHz
Number of channels ITU : Maximum 65 ch
USA : Maximum 65 ch
Canada : Maximum 65 ch
Inland waterway : Maximum 65 ch
Private : Maximum 200 ch( channel steps : 25 kHz, 12.5 kHz, 10 KHz )
Weather : Maximum 10 ch
Memory : Maximum 10 ch
Power supply voltage 24 VDC : 4.5 A
Power consumption ( 24 VDC input ) 25 W when transmitting : Maximum 4.5 A / 108 W
When receiving : Maximum 1.5 A / 36 W
Interface
Ports IEC 61162 - 1 : 1 port
  For GPS information input
IEC 61162 - 1/2 : 1 port
  For AIS information input, brightness control and BAM communication
LAN ( IEC 61162 - 450 compliant ) : 1 port
  For radar, ECDIS, RMS ( VDR ), GPS, AIS, DMC,
  brightness control, printer and BAM communication
Voice line output ( 600 Ω, balanced ) : 1 port
  For VDR / S-VDR connection
Voice line output ( 600 Ω, unbalanced ) : 1 port
  For external speaker connection
Audio output Built-in speaker ( 4 Ω ) : 6 W or more
Handset ( 150 Ω ) : 1 mW or more
NMEA0183 version Ver1.5 / 2.0 / 2.3
NMEA0183 input sentence ALR, GGA, GLL, GNS, RMC, VDM, VDO, ZDA
Environment
Operating temperature -25℃ to +55℃
Storage temperature -40℃ to +80℃
Waterproofing Marine VHF radiotelephone : IP56
Handset : IP66
VHF controller : IP56

Components

Standard components

Name Model Q'ty
Marine VHF radiotelephone JHS-800S ×1
Handset NQW-980 ×1
Power cable CFS-810 ×1
Accessory cable CFS-820 ×1
Instruction manual 7ZPJD0713 ×1
Bridge card 7ZPJD0741 ×1
Spare parts 0997015.WXN ×1

Option

Name Model
Antenna 7ABJD0004
Antenna mounting bracket MPBX41928A
AC / DC power supply NBD-965
VHF controller NCM-980
Desktop kit ( For main VHF ) MPBX50190
Desktop kit ( For VHF controller ) MPBX50191
CAN cable CFS-830
AUX cable CFS-840
Connection box CQD-10
Handset connection box NQE-1845
Handset connection box NQE-1846
Handset connection box NQE-1847B
Wireless speaker mic BTR-155
Printer RP-D10
Power supply for printer NBG-980
External speaker ( wall mount type ) NVS-423R
External speaker ( flush mout type ) NVS-823R
Distress message controller NCH-3210
Hand mic NVT-140L
  • The Bluetooth® word mark and logos are registered trademark of Bluetooth SIG, INC.
  • Bluetooth® interface : Bluetooth® 3.0 Class2
  • Wireless speaker mic is a product made by SAVOX Corporation.
  • The SII logos are registered trademark of Seiko Instruments Inc.
  • Printer RP-D10 is a product made by Seiko Instruments Inc.
