- EPIRB
The EPIRB tested for operational and performance requirements in accordance with the IEC 61097-2 Ed.4.
- Conforming to the IMO resolution MSC.471 (101)
- AIS homing technology included for faster localization
- Supports Multi-GNSS
- Prepared for RLS* through Galileo
- Infrared LED light for night vision devices and assisted SAR
*RLS : Return Link Service
Features
- This EPIRB has been tested for operational and performance requirements in accordance with the international
- standard, IEC 61097-2 Ed.4 (April 2021).
- Both regular LED light and infrared LED light are built-in to better support SAR activities at night and in the dark.
- The Tron 60AIS offers Galileo Return Link Service, Europe’s Global Navigation Satellite System (operational since January 2020).
Approved
| Item Name | EPIRB | Float-free Bracket |
|---|---|---|
| Type Name | Tron 60AIS | FB-60 |
| Type Approval Number | Certificate No.5730 | Certificate No.5731 |
| Cospas-Sarsat TAC No. | 351 |
Dimensions

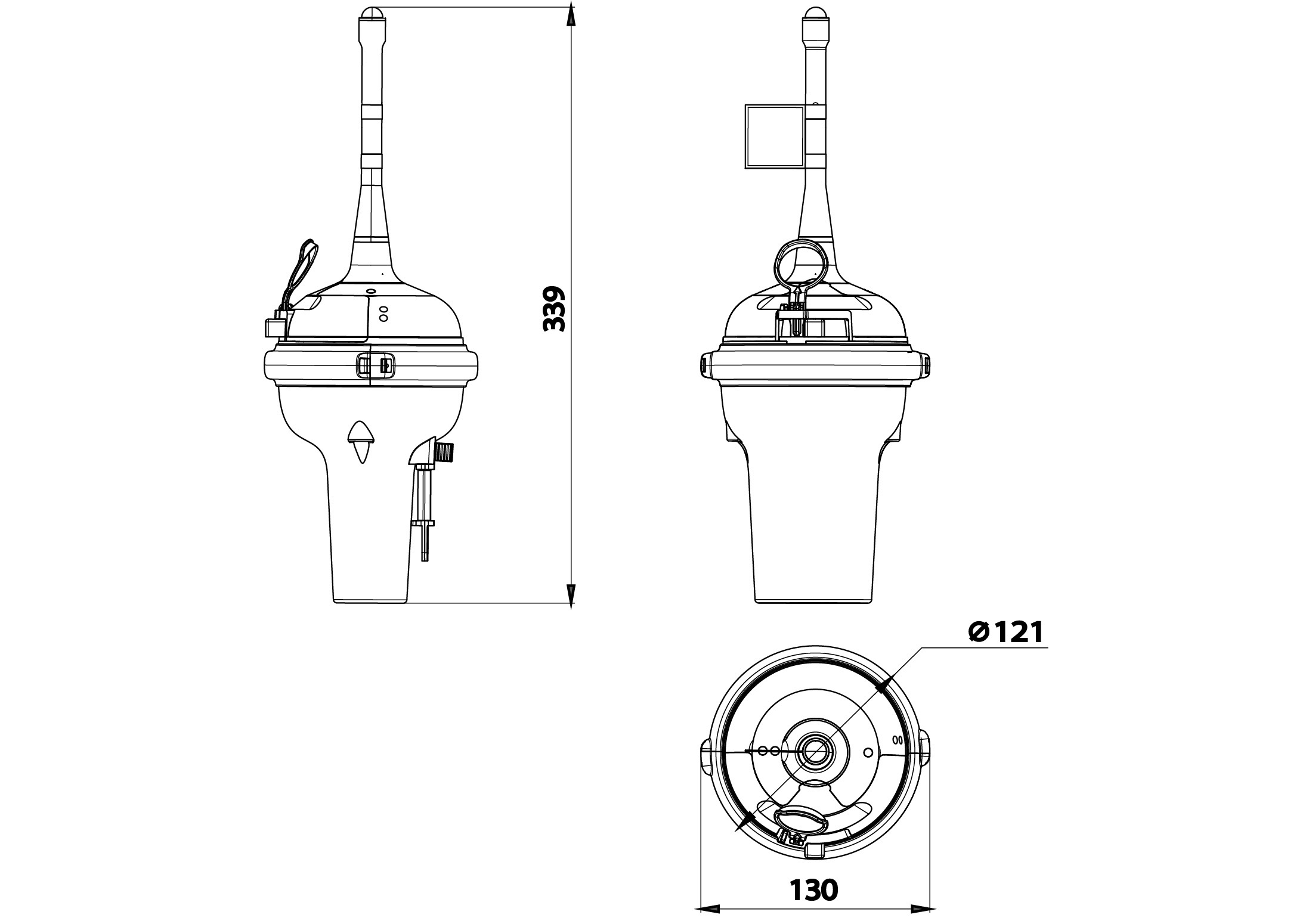

EPIRB Tron 60AIS
Mass: Approx. 0.7 kg

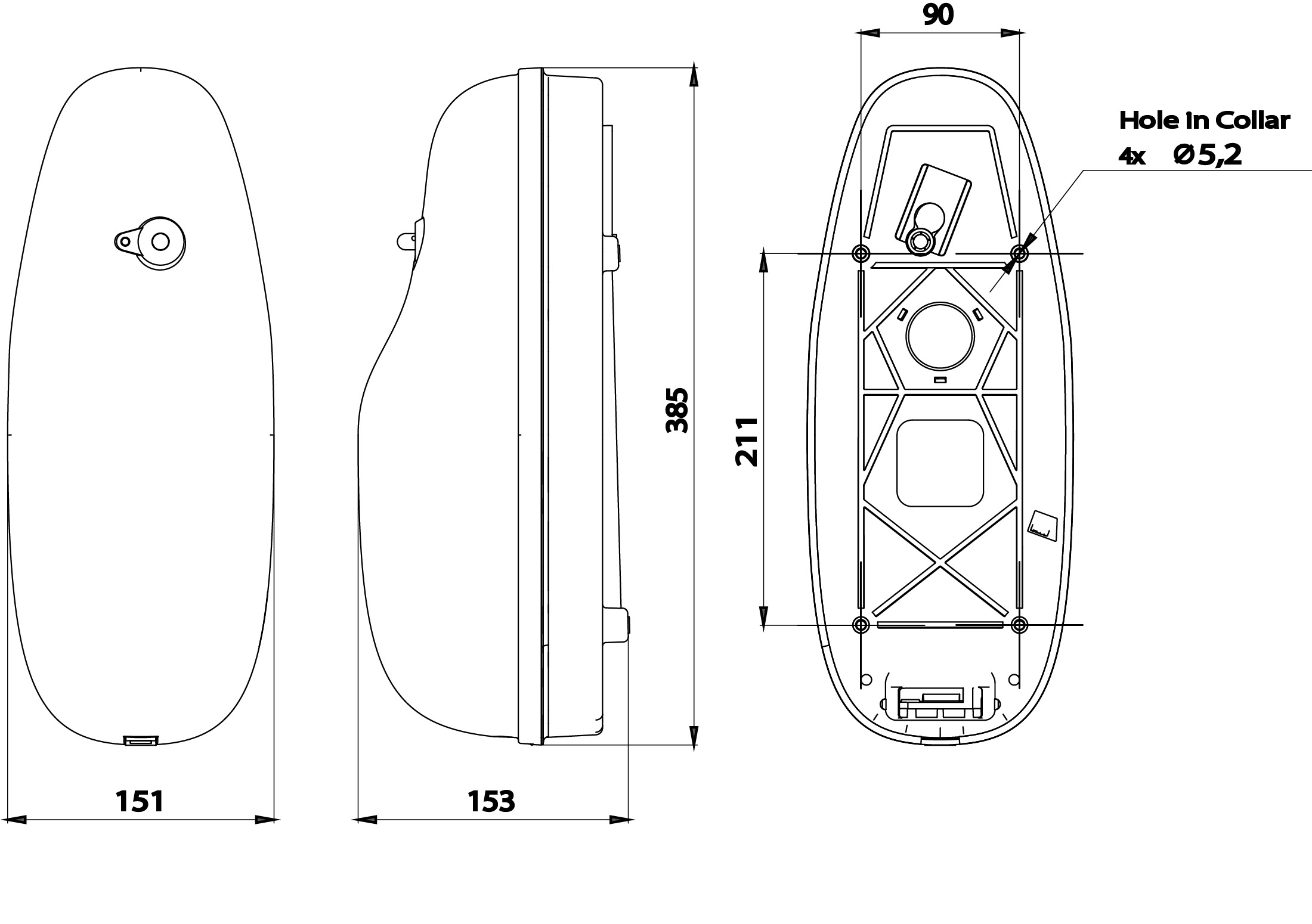

Float-free Bracket FB-60
Mass: Approx. 1.0 kg
Specs
General Specification
| Antenna | 406 MHz Cospas-Sart Transmitter | Omni directional |
|---|---|---|
| 121.5 MHz Homing Transmitter | Omni directional | |
| AIS Transmitter | Omni directional | |
| GNSS Receiver | PCB inverted-F antenna | |
| Battery | Type | Plithium metal |
| Voltage | 12 VDC/2.9 Ah (term of validity: 10 years) | |
| Release Sensor | Made by Hammer (term of validity: 2 year) | |
| Activation | Automatice and manual | |
| Deactivation | Move the switch back to its middle position and pick up the beacon unit from sea water. | |
| Standard Compass Safe Distance | 0.8 m | |
| Battery Operatin Time | More than 48 hours | |
| Operating Temperature | -20 ℃ to 55 ℃ | |
| Stowage Temperature | -30 ℃ to 70 ℃ | |
| EPIRB Unit Dimension | H339 mm x W130 mm x D121 mm | |
| EPIRB Mass | Approx. 0.7 kg | |
| Float-free Bracket Dimension | H385 mm x W151 mm x D153 mm | |
| Float-free Bracker Mass | Approx. 1.0 kg | |
406 MHz Cospas-Sarsat Transmitter
| Transmitter Frequency | 406.031 MHz | ||
|---|---|---|---|
| Output Power | 5 W | ||
| Modulation | Phase modulation | ||
| Data Encoding | Bi Phase L | ||
| Stability | Short Term Stability | Less than 2×10-9 | |
| Medium Term Stability | Less than 10-9 | ||
| Residual Noise | Less than 3×10-9 | ||
| Bit Rate | 400 bps | ||
GNSS Recever
| Global Navigation Satellite System | GPS, GLONASS, Galileo |
|---|
121.5 MHz Homing Transmitter
| Transmitter Frequency | 121.500 MHz |
|---|---|
| Output Power | Up to 100 mW |
| Modulation | AM |
| Sweep range: 700 Hz | |
| Sweep rate: 2.5 Hz | |
| Stability | 10 ppm over temperature range |
AIS Transmitter
| Transmitter Frequency | 161.975 MHz (AIS 1) |
|---|---|
| 162.025 MHz (AIS 2) | |
| Output Power | 1 W |
| Modulation | GMSK |
| Stability | ±1 KHz |
