- GPS/DGPS
Features

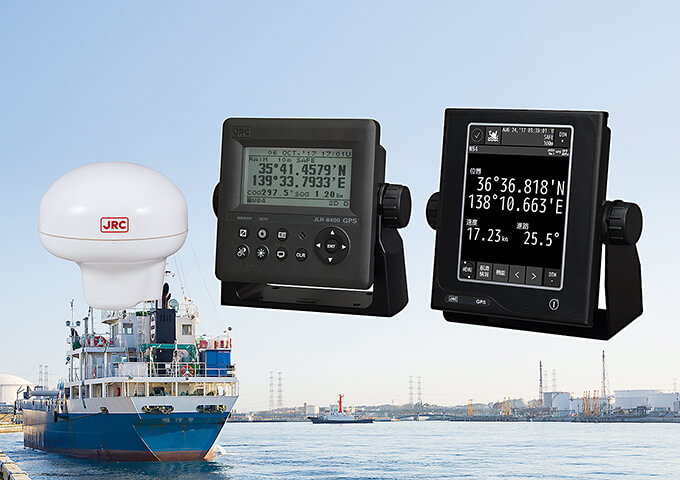

Both JLR-8400 and JLR-8600 are reliable and accurate GPS navigators which carry the same JRC DNA with uniform design and intuitive, trusted operation. Combined with our new multi-GNSS sensor you are ensured of accurate positioning without compromise.
- High reliability
- Multi-GNSS sensor
- Up to 22 satellite signal trackable
- Intuitive and trusted operation
- Easy to install
- Flexible system configuration
- IMO approved
- Complete and compact
- High accuracy
- Remote maintenance posiible
JLR-8400
The compact JLR-8400 GPS navigator is compatible with Multi-GNSS and will provide accurate position data even in Arctic area, without SBAS and beacon.
JLR-8600

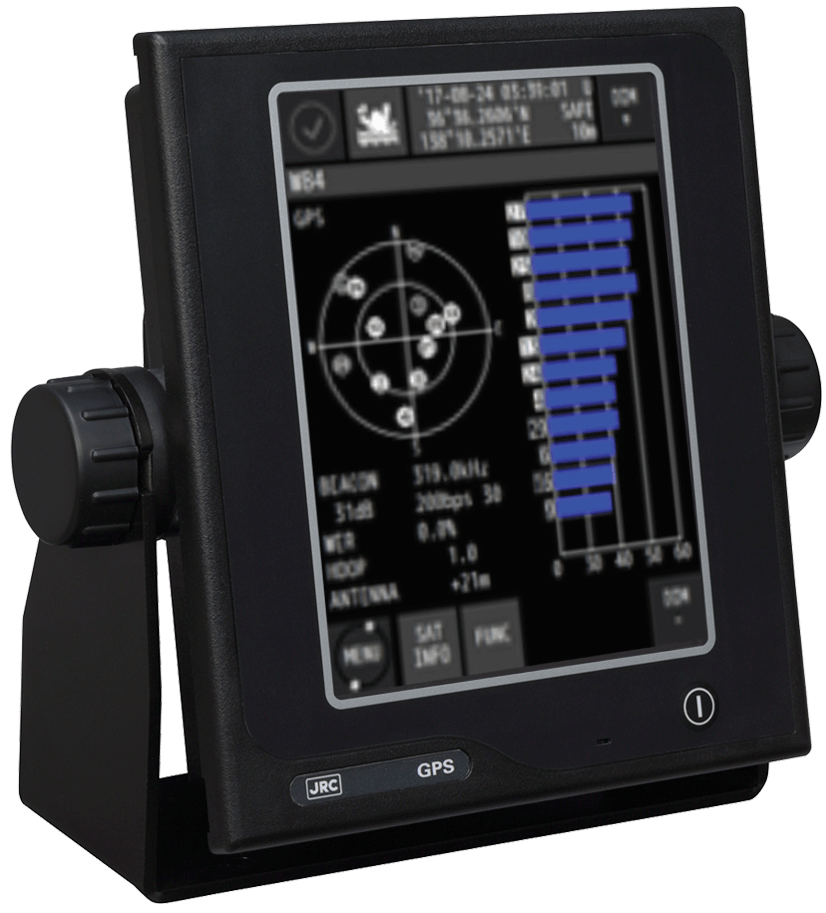

The new JLR-8600 GPS navigator combined with our trusted 6.5-inch touch display will locate your position with high accuracy utilizing our newly designed antenna, providing you with the comfort of an intuitive operational approach.
| JLR-8400 | JLR-8600 | |
|---|---|---|
| Units | 2 | 3 |
| Route Sharing with LAN | n/a | ECDIS / Radar / Navigation & communication systems |
| Waypoint | 1,000 | 10,000 |
| Routes | 20 ( 50 waypoint / route ) | 100 ( 512 waypoint / route ) |
| Alarm log | 40 | 100 |
Multi-GNSS sensor
The newly designed multi-GNSS is capable of receiving data from GPS as well as GLONASS, or BeiDou at the same time, allowing for a highly accurate positioning without beacon and SBAS.
The sensor can increase the accuracy of your position by receiving SBAS correction data.
Combination for multi-GNSS
- GPS stand alone
- GPS + SBAS
- GPS + GLONASS
- GPS + BeiDou
Easy installation
Both displays are very compact and can virtually be mounted anywhere using the flush mount system. The base of the sensor is designed for an easy installation, either on a pole or on an extension mast. The base also includes a slot allowing for easy cable management. Connecting everything together allows for a high reliability installation approach with redundancy of sensors, power supply and processor units.

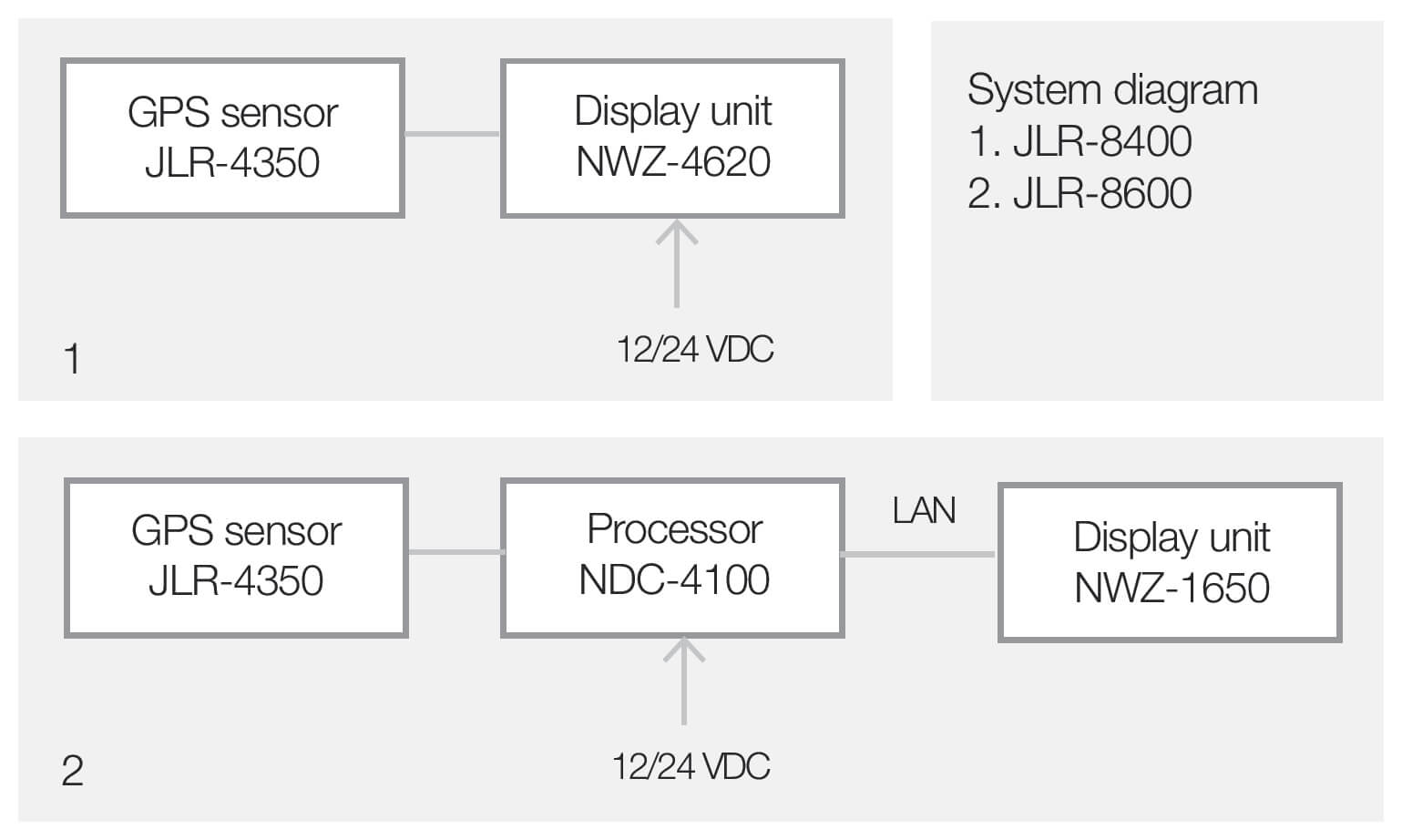

System

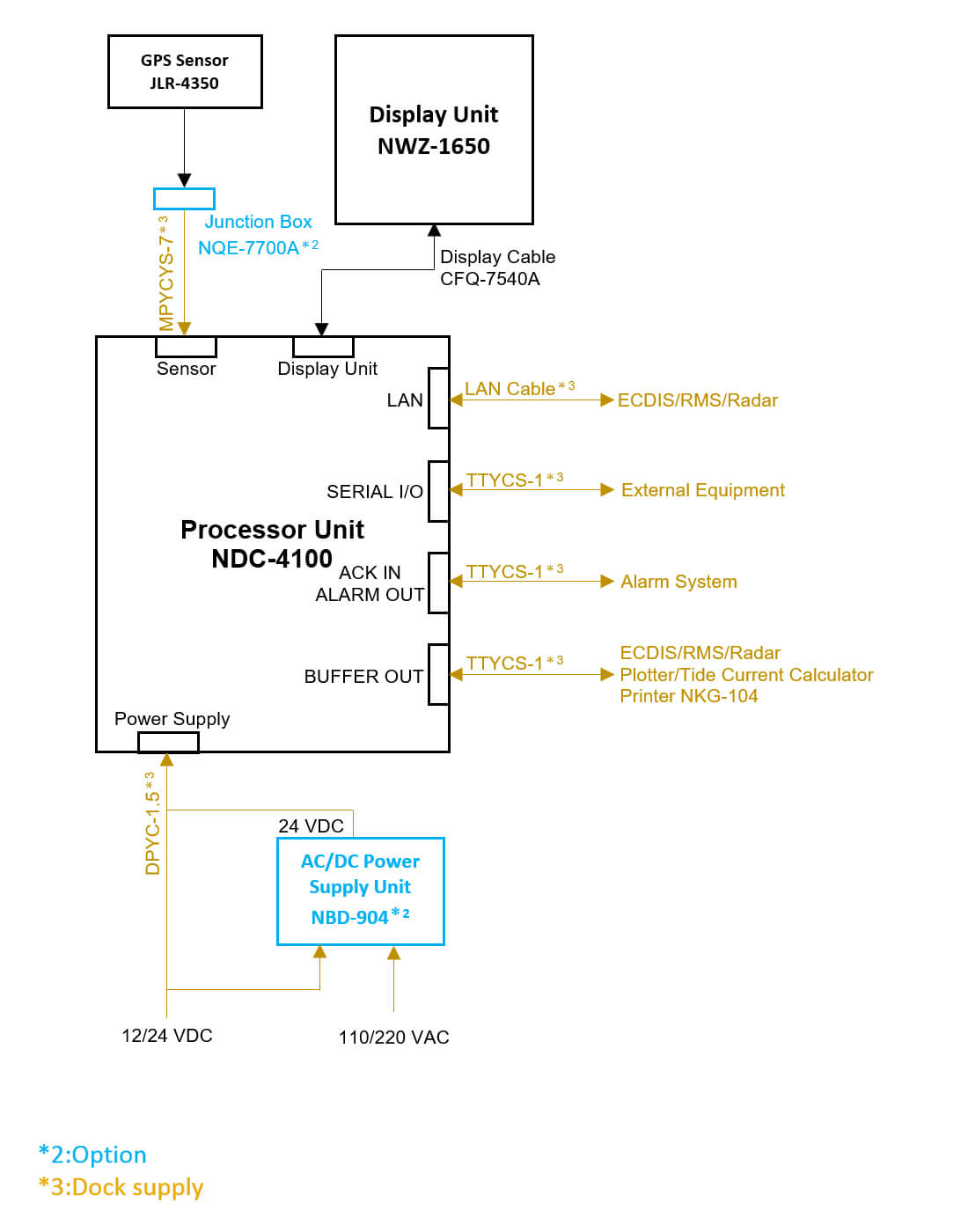

JLR-8600

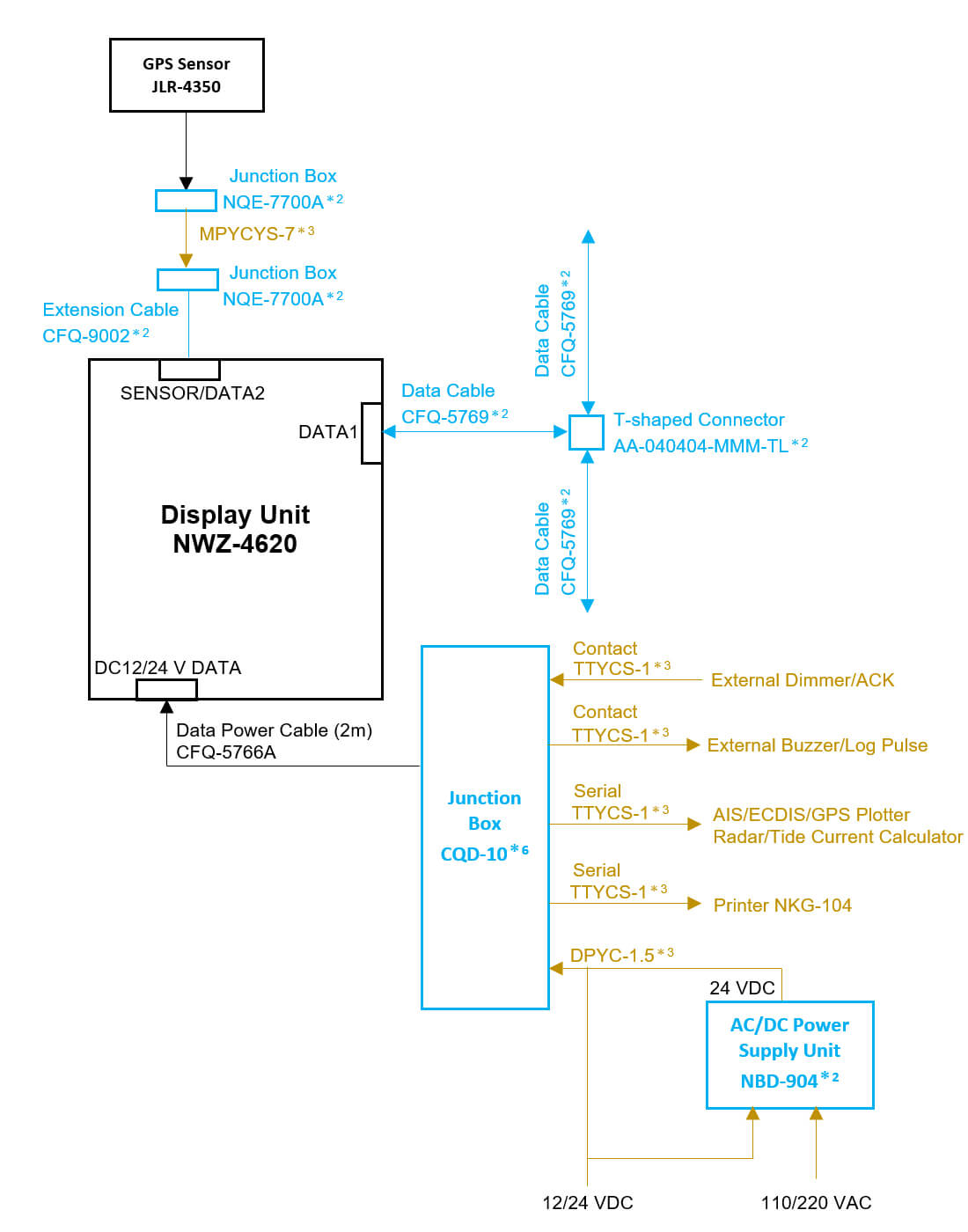

JLR-8400
Dimensions

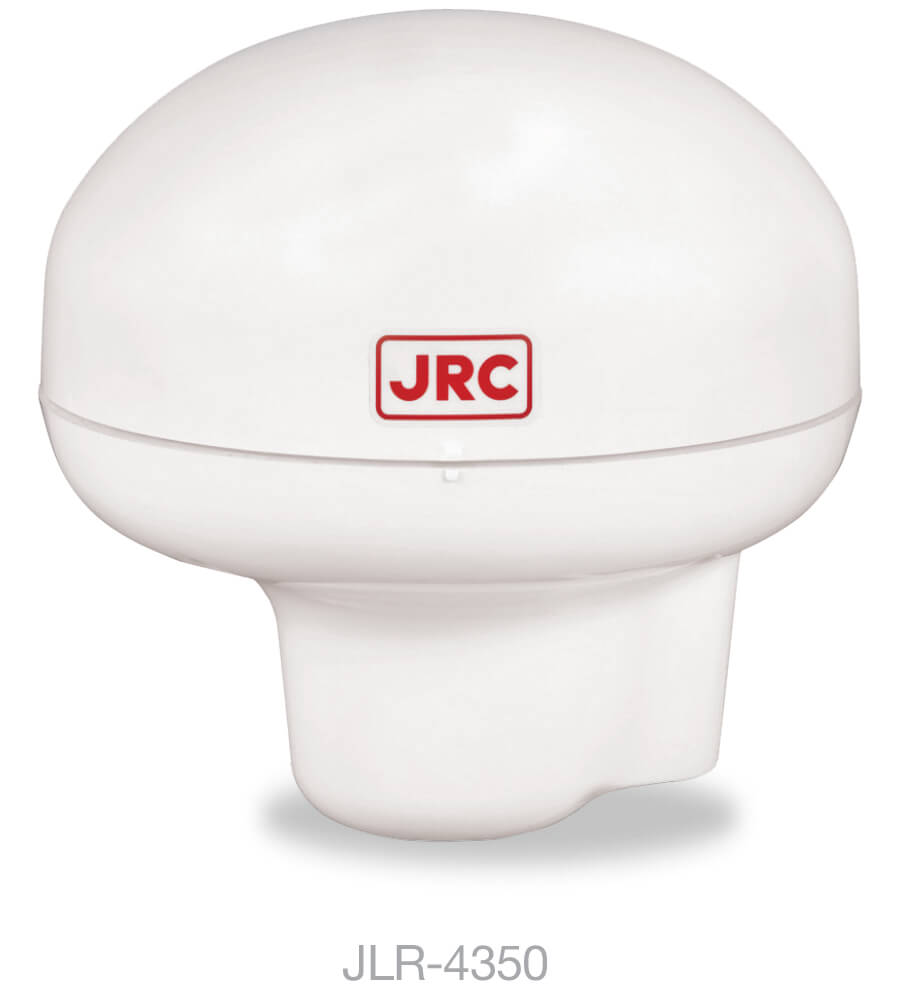

GPS Sensor Unit JLR-4350
Mass: Approx. 1.2 kg
Display Unit NWZ-4620
Mass: Approx. 0.8 kg
Processor Unit NDC-4100
Mass: Approx. 1.9 kg
Display Unit NWZ-1650
Mass: Approx. 1.5 kg ( Base Kits included )
Specifications
| Equipment Name | GPS navigator | |
| Model | JLR-8600 | JLR-8400 |
| Standard | IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 61162-2 Ed.1.0 ( 1998 ) IEC 61162-450 Ed.1.0 ( 2011 ) IEC 62288 Ed.2.0 ( 2014 ) |
IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 62288 Ed.2.0 ( 2014 ) |
| Sensor | ||
|---|---|---|
| Model | JLR-4350 | |
| Positioning Satellite System | GPS, GLONASS, BeiDou, SBAS | |
| Accuracy | Satellite system | Positioning accuracy ( 2DRMS ) |
| GPS + GLONASS | 4 m | |
| GPS + BeiDou | ||
| GPS + SBAS | ||
| GPS | 5 m | |
| Maximum Number of Tracked Satellites | 22 satellites | |
| Sensitivity | -144 dBm for acquisition | |
| Time to First Fix | Typically 35 seconds ( cold start fix ) | |
| Typically 33 seconds ( warm start fix ) | ||
| Typically 4 seconds ( hot start fix ) | ||
| Position Update | Normally every 1 second | |
| Geodetic Satum | Selection among 48 geodetic datum ( default: WGS-84 ) | |
| JLR-8600/8400 specifications | ||
| Model | Display Unit: NWZ-1650 Processor Unit: NDC-4100 |
Display Unit: NWZ-4620 |
| Display | 6.5-inch TFT color LCD | 4.5-inch monochrome LCD |
| 640x480 dots ( VGA ) Brightness: 800 cd/m2> |
128x64 dots | |
| Backlight | 17 steps | White or orange |
| Memory | Waypoints: 10,000 points Event/Mark: 1,000 points Route: 100 routes Track: 2,000 points |
Waypoints: 1,000 points Event/MOB: include in waypoints Route: 20 routes Track: 2,000 points |
| Plot Function Scale | 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 300 NM | 0.125, 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100 NM |
| Plot Interval | 1 to 60 min ( 1 sec ) or 0.01 to 99.99 NM ( 0.01 NM ) selectable | |
| Navigation Calculation | Grate circle or rhumb line selectable | |
| Screen Mode | Navigation information screen, plotting screen, analogue screen, highway screen, satellite information screen, waypoint information screen, beacon text screen, navigation aid screen | Navigation screen, PLOT screen, GPS information screen, beacon information screen, CDI screen, distance screen, speed screen, reception information screen, waypoint information screen |
| Alert | Arrival, anchor, boundary, XTD, no position fix, speed, trip, HDOP, temperature, depth | Arrival, anchor, XTD, no position fix, speed, trip, HDOP |
| Unit | Distance speed: NM, kn, km, km/h, mi, mi/h | |
| Buffer/Select Switch | Built-in | Option |
| Dual Power Supply | Available | None |
| Power Supply Voltage | 12/24 VDC: 2.0 A | 12/24 VDC: 0.5 A |
| Power Consumption | 25 W ( JLR-4350 ) | 7 W ( JLR-4350 ) |
| Interface | ||
| Ports | IEC 61162-1: ( Input ) 2 ports, ( output ) 5 ports IEC 61162-2: ( Input ) 1 port, ( output ) 1 port Buffer ( IEC 61162-1 ): ( Output ) 8 ports LAN ( IEC 61162-450 ): 2 ports Dry contact: ( Input ) 1 port, ( output ) 4 ports RS-232C: ( Input ) 1 port, ( output ) 1 port |
IEC 61162-1: ( Input / output ) 3 ports Dry contact: ( Input ) 1 port, ( output ) 1 port |
| NMEA 0183 Version | Ver1.5/2.1/2.3/4.0 | |
| NMEA 0183 Input Sentence | ACK, ACN, ALC, ALF, ALR, CUR, DBT, DPT, HBT, HDT, MTW, MWV, RTE, THS, VBW, VHW, VWR, VWT, WPL | ACK, ACN, RTE, WPL |
| NMEA 0183 Output Sentence | AAM, ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, CUR, DBT, DPT, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VHW, VTG, VWR, VWT, WPL, XTE, ZDA, ZTG | ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, RMB, RMC, RTE, VTG, WPL, XTE, ZDA, ZTG |
| Environment | ||
| Operating Temperature | GPS Sensor: -25 ℃ to +55 ℃ Display Unit: -15 ℃ to +55 ℃ Processor Unit: -15 ℃ to +55 ℃ |
GPS Sensor: -25 ℃ to +55 ℃ Display Unit: -15 ℃ to +55 ℃ |
| Storage Temperature | GPS Sensor: -40 ℃ to +70 ℃ Display Unit: -25 ℃ to +70 ℃ Processor Unit: -25 ℃ to +70 ℃ |
GPS Sensor: -40 ℃ to +70 ℃ Display Unit: -25 ℃ to +70 ℃ |
| Waterproofing | GPS Sensor: IP56 Display Unit: IP56 Processor Unit: IP22 |
GPS Sensor: IP56 Display Unit: IP55 |
- GPS Sensor Waterproofing: IEC 60945 Ed.4.0 ( 2002 ) conformant
Components
Standard components
| Name | Model | Q'ty |
|---|---|---|
| JLR-8600 | ||
| GPS Sensor Unit | JLR-4350 | x1 |
| Instruction Manual ( Sensor ) | 7ZPNA4695 | x1 |
| Processor Unit | NDC-4100 | x1 |
| Display Unit | NWZ-1650 | x1 |
| Display Cable | CFQ-7540 | x1 |
| Instruction Manual | 7ZPNA4699 | x1 |
| JLR-8400 | ||
| GPS Sensor Unit | JLR-4350 | x1 |
| Instruction Manual ( Sensor ) | 7ZPNA4693 | x1 |
| Display Unit | NWZ-4620 | x1 |
| Data Power Cable | CFQ-5766A | x1 |
| Instruction Manual | 7ZPNA4697 | x1 |
Option
| Name | Model |
|---|---|
| JLR-8600 | |
| AC/DC Power Supply Unit | NBD-904 |
| Data Power Cable | CFQ-7539 |
| Printer | NKG-104 |
| Extension Cable | CFQ-9000 |
| Junction Box | NQE-7700A |
| Printer | RP-D10 |
| Printer | NBG-980 |
| Base Kits | MPBX50347 |
| JLR-8400 | |
| AC/DC Power Supply Unit | NBD-904 |
| Data Power Cable | CFQ-5766D |
| Printer | NKG-104 |
| Extension Cable | CFQ-9000 |
| Junction Box | NQE-7700A |
| Junction Box | CQD-10 |
