- VHF radio and UHF onboard communications
- International VHF
Features

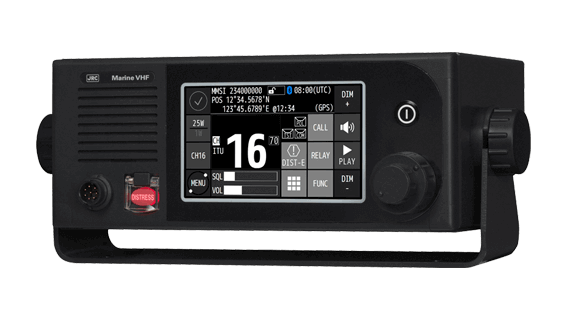

Marine VHF radiotelephone JHS-800S
Our new 5-inch touch screen controlled Class A VHF radio (JRC model JHS-800S) featuring a uniform, corporate design with manual-free operation. The all-in-one unit (control unit with speaker, radiotelephone and DSC) has high sensitivity performance, Hi-Fi output and protection rate of IP56.
- Easy operation
- 5-inch color LCD touch display
- Class A DSC complying latest GMDSS requirement
- High quality sound (Hi-Fi audio)
- Easy to install by compact design
- Up to 4 remote controllers
- All-in-one design
- New designed speaker and handset
- Bluetooth® interface for wireless speaker mic
- Waterproof design (IP56)
Overview
This equipment has standard functions that include regular radiotelephone and DSC (digital selective calling) for distress transmissions, as well as functions to playback and record radio calls in real-time and an easy-to-operate self-diagnosis function.
Touch display
As of February 2019 the JHS-800S is the world's first Class A marine VHF radio-telephone featuring a 5-inch high-brightness color LCD touch screen, which makes it an outstanding innovative design.
The backlights of the LCD screen with a wide viewing angle and the operation buttons are fully adjustable, preventing interference while keeping night watch.

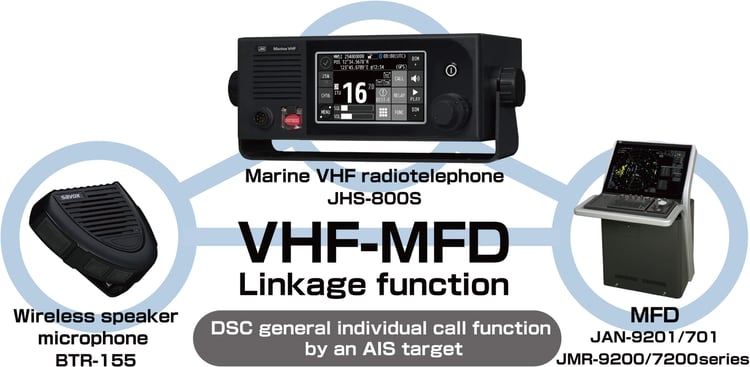

VHF-MFD Linkage Function
About VHF-MFD Linkage Function
This function facilitates the making of DSC general individual calls from an AIS target on the radar PPI screen of the JMR-9200/7200 series or on the ECDIS chart of JAN-9201/7201. When a 16ch call is used, the called ship may not notice the call since a common channel is used. This function enables the making of a call directly to a target ship only.
A target ship may not notice the call since a call is made to the unspecified recipient.
A target ship notices the call as the call is made directly.

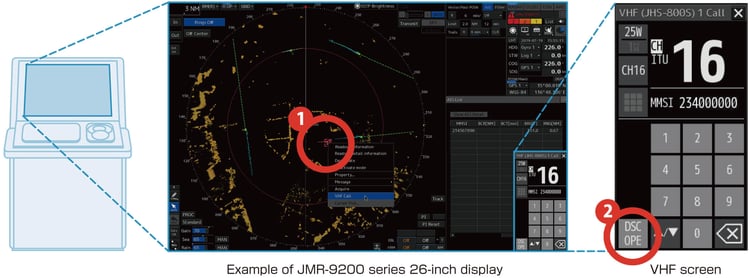

"Quick call" by VHF-MFD interface*1
A DSC general individual call can be made easily from an AIS target on the radar PPI screen or the ECDIS chart.
- Select an AIS target on the radar/ECDIS screen.
- Call an intended ship by pressing the "Call" button on the VHF Call screen.
*1: Supported by JAN-9201/7201 and JMR-9200/7200 series.
"Call flexibility" through VHF-MFD interface
Combined with the BTR-155 (optional) Bluetooth®*2-connected wireless speaker microphone, the user can talk to the caller while looking at the screen or ECDIS screen. While movements are restricted in the conventional VHF wireless telephone set by the limitation of the length of the handset cord, with this function, a call can be carried out by moving freely within the bridge as long as it is within the Bluetooth communication area.

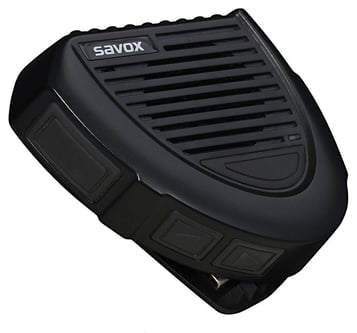

Wireless speaker microphone BTR-155

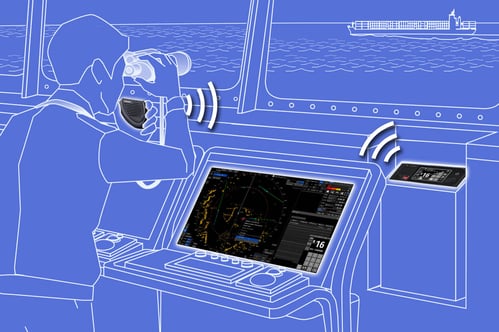

Example of a call using wireless speaker microphone BTR-155
*2: The call distance is up to 10 m. Our test values are not guaranteed values.
Voice recording
The received voice recording (up to 8 minutes) and playback function enables later confirmation or temporary saving of communications.
Audio
The digital audio amplifiers, equalizer function for deep-normal-high voice, specially designed speakers and new handset offer superior sound quality. A remote standalone microphone and pedalswitch can be connected to via a junctionbox. It is possible to operate the VHF with optional controllers up to 100 m away from the bridge.

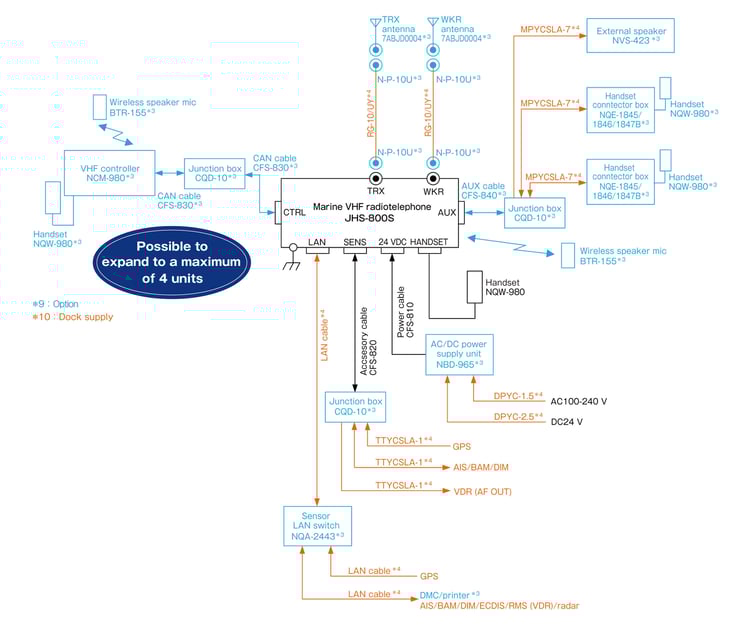

System
Dimensions

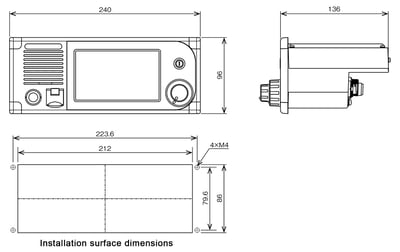

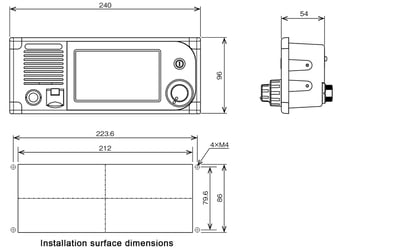

Marine VHF Radiotelephone JHS-800S
Mass : Approx.2.1 kg
Antenna 7ABJD0004
Mass : Approx.0.3 kg
VHF controller NCM-980
Mass : Approx.0.9 kg

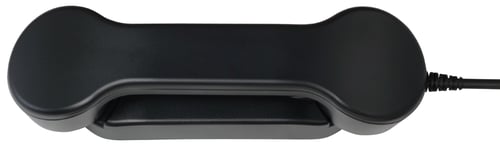

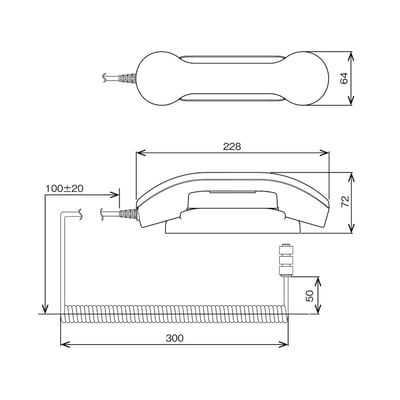

Handset NQW-980
Mass : Approx.0.45 kg

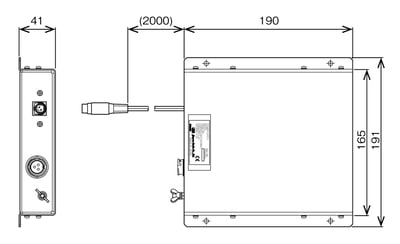

AC/DC power supply NBD-965
Mass : Approx.2.1 kg
Handset connector box NQE-1845
Mass : Approx.0.5 kg

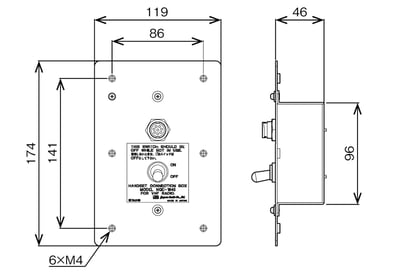

Handset connector box NQE-1846
Mass : Approx.1.1 kg

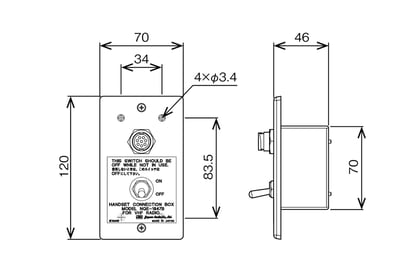

Handset connector box NQE-1847B
Mass : Approx.0.3 kg

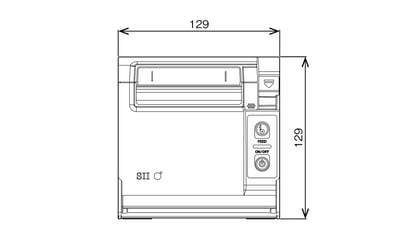

Printer RP-D10
Mass : Approx.0.85 kg
Printer power supply NBG-980
Mass : Approx.1.0 kg

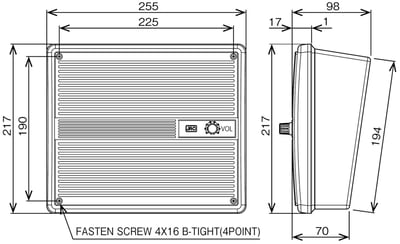

External speaker NVS-423R
Mass : Approx.1.1 kg
Specifications
| Equipment name | Marine VHF radiotelephone |
|---|---|
| Model | JHS-800S |
| Standard | IMO resolution A.694 ( 17 ) ( 1991 ) IMO resolution A.803 ( 19 ) ( 1995 ) IMO resolution MSC.68 ( 68 ) ( 1997 ) IMO MSC / Circ.862 ( 1998 ) IEC 60945 Ed.4.0 ( 2002-08 ) |
| Display | 5 inch TFT color LCD, 800 × 480 dots ( WVGA ), Brightness: 1000 cd/m2 |
| Communication modes | Simplex and semi-duplex press talk system |
| Transmission frequency | Simplex / semi-duplex : 155.000 - 163.500 MHz |
| Reception frequency | Simplex / semi-duplex : 155.000 - 163.500 MHz |
| Antenna output power | 6 - 25 W ( when reducing : 0.5 - 1 W ) |
| Modulation method | FM / FSK |
| Type of emission | Radiotelephone communications : F3E / G3E DSC / ATIS : F2B / G2B |
| Channel spacing | 25 kHz |
| Frequency accuracy | ±10 × 10-6 or less |
| Antenna impedance | 50 Ω unbalanced |
| DSC CH70 recevier | Receiver : built in Frequency : 156.525 MHz |
| Number of channels | ITU : Maximum 65 ch USA : Maximum 65 ch Canada : Maximum 65 ch Inland waterway : Maximum 65 ch Private : Maximum 200 ch( channel steps : 25 kHz, 12.5 kHz, 10 KHz ) Weather : Maximum 10 ch Memory : Maximum 10 ch |
| Power supply voltage | 24 VDC : 4.5 A |
| Power consumption ( 24 VDC input ) | 25 W when transmitting : Maximum 4.5 A / 108 W When receiving : Maximum 1.5 A / 36 W |
| Interface | |
| Ports | IEC 61162 - 1 : 1 port For GPS information input IEC 61162 - 1/2 : 1 port For AIS information input, brightness control and BAM communication LAN ( IEC 61162 - 450 compliant ) : 1 port For radar, ECDIS, RMS ( VDR ), GPS, AIS, DMC, brightness control, printer and BAM communication Voice line output ( 600 Ω, balanced ) : 1 port For VDR / S-VDR connection Voice line output ( 600 Ω, unbalanced ) : 1 port For external speaker connection |
| Audio output | Built-in speaker ( 4 Ω ) : 6 W or more Handset ( 150 Ω ) : 1 mW or more |
| NMEA0183 version | Ver1.5 / 2.0 / 2.3 |
| NMEA0183 input sentence | ALR, GGA, GLL, GNS, RMC, VDM, VDO, ZDA |
| Environment | |
| Operating temperature | -25℃ to +55℃ |
| Storage temperature | -40℃ to +80℃ |
| Waterproofing | Marine VHF radiotelephone : IP56 Handset : IP66 VHF controller : IP56 |
Components
Standard components
| Name | Model | Q'ty |
|---|---|---|
| Marine VHF radiotelephone | JHS-800S | ×1 |
| Handset | NQW-980 | ×1 |
| Power cable | CFS-810 | ×1 |
| Accessory cable | CFS-820 | ×1 |
| Instruction manual | 7ZPJD0713 | ×1 |
| Bridge card | 7ZPJD0741 | ×1 |
| Spare parts | 0997015.WXN | ×1 |
Option
| Name | Model |
|---|---|
| Antenna | 7ABJD0004 |
| Antenna mounting bracket | MPBX41928A |
| AC / DC power supply | NBD-965 |
| VHF controller | NCM-980 |
| Desktop kit ( For main VHF ) | MPBX50190 |
| Desktop kit ( For VHF controller ) | MPBX50191 |
| CAN cable | CFS-830 |
| AUX cable | CFS-840 |
| Connection box | CQD-10 |
| Handset connection box | NQE-1845 |
| Handset connection box | NQE-1846 |
| Handset connection box | NQE-1847B |
| Wireless speaker mic | BTR-155 |
| Printer | RP-D10 |
| Power supply for printer | NBG-980 |
| External speaker ( wall mount type ) | NVS-423R |
| External speaker ( flush mout type ) | NVS-823R |
| Distress message controller | NCH-3210 |
| Hand mic | NVT-140L |
- The Bluetooth® word mark and logos are registered trademark of Bluetooth SIG, INC.
- Bluetooth® interface : Bluetooth® 3.0 Class2
- Wireless speaker mic is a product made by SAVOX Corporation.
- The SII logos are registered trademark of Seiko Instruments Inc.
- Printer RP-D10 is a product made by Seiko Instruments Inc.
