- Fishfinder
Variable quad frequencies in blackbox design
will powerfully support your fishing
- 2-type selectable transducers with different frequency range
- Variable frequency function enables quick escape from surrounding ships interference
- Digital processing technology presents clear fish echo in all detection range
- Six Conditional Memory keys will totally recall pre-set parameters instantly with your finger tip
- Simple keys and dials with colored back light keyboard will support intuitive operation
- Your own display (supports XGA resolution) can be connected by RGB
Features
Adanced sounding

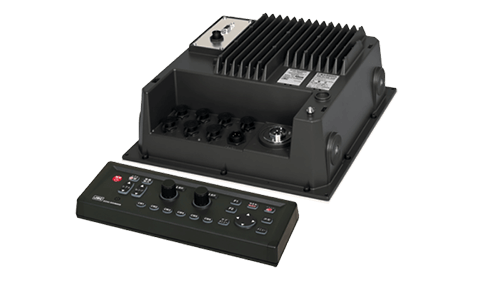

The JFC-180 is an innovative, blackbox echo sounder which is capable of displaying 4 different frequencies at the same time, providing the operator greatly enhanced fish detection. It is easier to differentiate between the various fish species, large shoals of fish and the seabed, resulting in better targeted catches and contributing to conservation of fish stocks.
- Advanced 3 kW transducer
- Black box design
- Dedicated keyboard
- XGA display resolution output
- Flexible interfacing
- Digital signal processing technology
- Simultaneous display of four frequencies
- One touch memory buttons
- Long range detection
- Energy saving mode

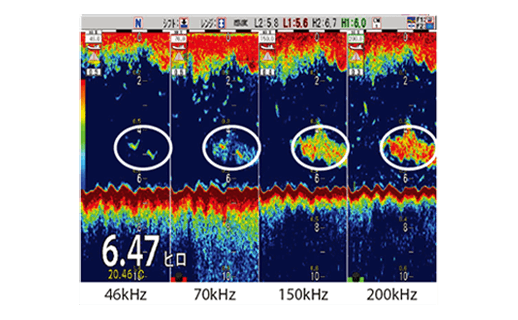

Quad frequency
You can select four frequencies within the range of broadband transducer. Flexible selection of frequencies by 0.1 kHz step enables the user to stay away from interference with the sounders on other vessels.

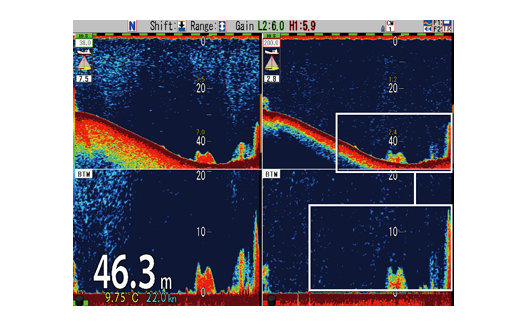

Zooming
Users can zoom by any range. After setting the zoom image, the normal image is indicated above and the zoomed image is displayed at the bottom part of the screen. The example on the right is focussed from the sea bottom, showing the depth upwards, which is especially useful for trawler vessels.
Languages
The JFC-180 allows the operator to switch between English, Japanese, Chinese, French, Greek, Italian, Korean, Spanish and Thai.
Operation

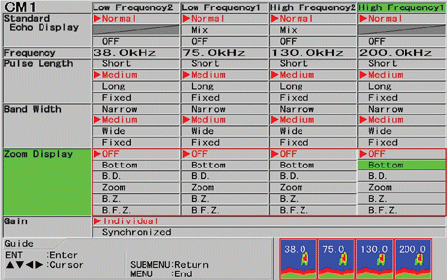

Settings
With the Conditional Memory (CM) keys you can personalize and set your preferred display mode. A professional user can set up to 4 different frequencies at the same time, type of echo display, pulse length, bandwidth zoom display and gain. Novice operators can select from many auto functions such as range, shift, gain, transmit power and white line.

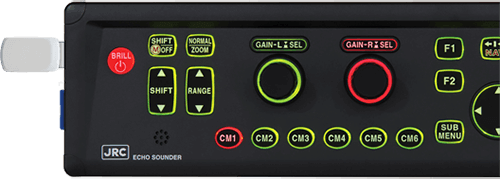

Keyboard
The color backlit keyboard makes operating the echo sounder easy and straightforward. A USB and SD card slot at the side of the keyboard allows saving images (screenshots), waypoints and backing up your settings.

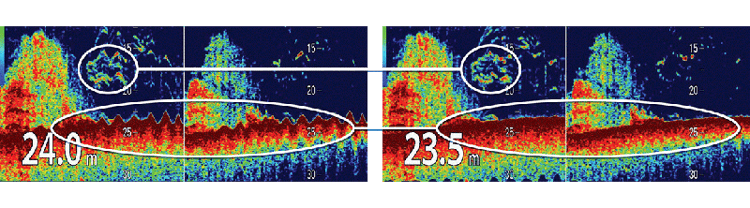

Heave compensation
In rough ocean conditions with high waves, the JFC-180 can correct the up and down (attitude) movement. This function is standard available but requires an external connection to for example the JRC GPS compass (JLR-21). This is especially useful for fishing vessels where high waves can be compensated to accurately display the depth of the fish echo or to even the sea bottom.
In the box
- Processor unit
- Keyboard
- Junction box
- Power cable
- Spare parts
- Manual (English)
Accessories
- Power supply

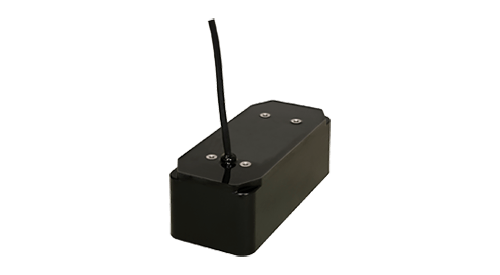

- Transducer
- Transducer extension
- Transmission filter
- Various cables/connectors
Tech Specs
| Output power | 3 kW | |
|---|---|---|
| Output frequency | 38 to 75 kHz and 130 to 210 kHz | |
| Output method | Single or alternating | |
| Transmit rate | Up to 3000/min | |
| Display output | XGA (1024 by 768 pixels) | |
| NMEA ports | 1 input and 1 output | |
| Power supply | 21.6 to 31.2V DC | |
| Power consumption | 50W or less | |

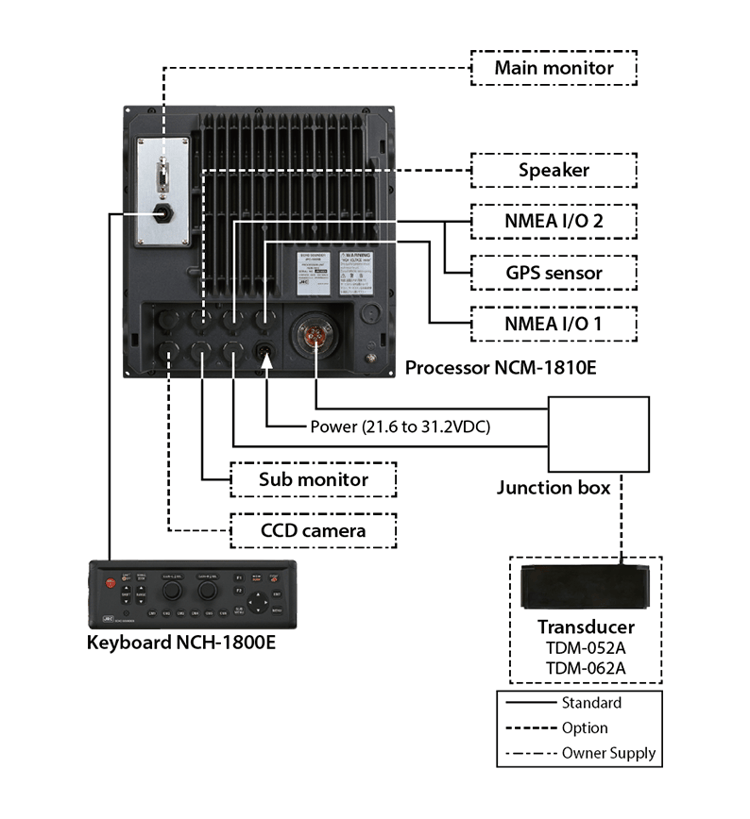

System
Configulation
Standard equipment configuration list
- Processor unit : NCM-1810E
- Operation unit : NCH-1800E
- DC power cable : CW-270-2M
- Fuse : F-7161-10A/N30C-125V
type(φ6.4 x 30) - Junction box : JB-34-JRC
- Connector : LTWBD-06BFFA-L180
- Transducer : Please arrange separately choose*1
- Instruction manual [Basic] : 7ZPNA4617
- Instruction manual [Advanced] : 7ZPNA4619
- Quick reference : 7ZPNA4633
- NMEA input / output cable : CW-376-5M
- External monitor connection
- cable : CW-576-0.5M
- Transducer cable : CW-836-3M/CW-844-3M
*1 Please select a transducer when purchase.
TDM-052A, TDM-062A, TDM-41, TDM-091
Option list
- Transducer extension cable : C44-01
- Grounding cable : OW7/1.6S-3M
- Connecting cable : CW-371-5M/CW-372-5M/CW-373-5M/CW-374-5M/CW-376-5M/CW-410-5M/CW-560-2M/CW-264A-2M/CW-405-0.3M/CW-409-2m/CW-409-10m
- Connector : LTWBD-05BFFA-L180/LTWBD-06BFFA-L180
- Transmission filter : Transmission C29EHB0004A
Dimensions

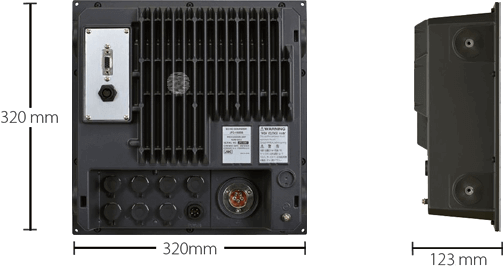

Processor
NCM-1810E Weight : 5.6 kg

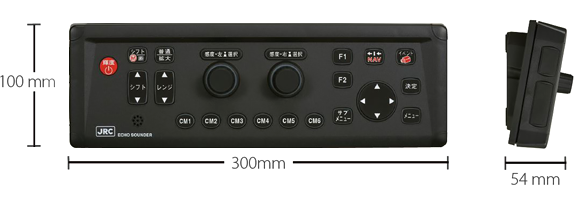

Keyboard
NCH-1800E Weight : 0.7 kg

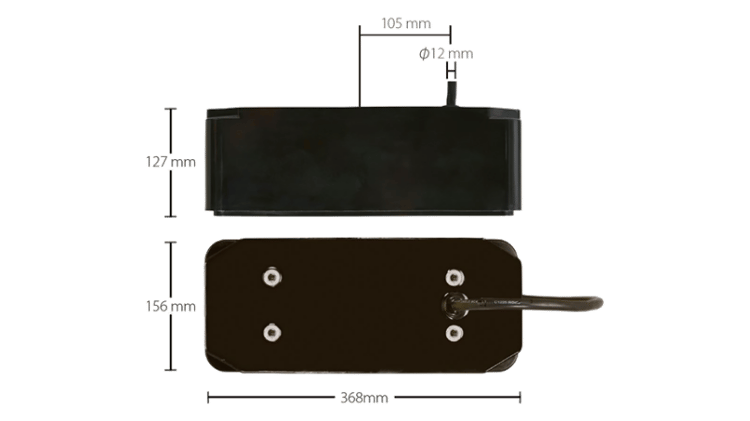

Trnsducer
TDM-052A Weight : 11 kg
TDM-062A Weight : 11.4 kg
Spec
| Model | JFC-180BB |
|---|---|
| Processor unit | NCM-1810E |
| Operation unit | NCH-1800E |
| transducer (Output frequency) |
TDM-052A (38 to 75kHz and 130 to 210kHz) TDM-062A (38 to 75kHz and 85 to 135kHz) |
| Selectable frequency range |
24 to 240kHz 0.1kHz step |
| Output method | Simultaneous/Alternate |
| Display type | Owner supply (XGA compatible output through RGB connector) |
| Display ranges | 1 to 3000m, 1 to 2000l.fm (8 ranges can be set to users choice) |
| Zoom ranges | 1 to 260m, 1 to 180l.fm |
| Range units | m, ft, fm, l.fm |
| Presentation modes | High frequency, Low frequency, 1 to 4 frequency, Zoom image (Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Bottom follow zoom), Nav mode, Vertical split, Horizontal split, Mix A-scope can be displayed at all above modes |
| Presentation colors | 64 colors, 16 colors, 8 colors, Monochrome |
| Back ground colors | Marine blue, Blue,Dark blue, Black, White, Nighttime color, Other 4colors |
| Alrams | Bottom, Fish, Temperature*2, Speed*3, Arrival*4, XTE*4 |
| Image speed | 9 steps & stop |
| Functions | Interference rejection, Color rejection, VRM, Noise reduction,White line, Water temperature correct, Boat speed correct,Store image (500 images), Sona-Tone, Fishing Hot Spot, Event memory, Simple plotter, Panel illumination, Power reduction,External trigger, Detection area display, CM key, Water Temp.graph, Individual range operation, External memory storage (SDcard, USB memory), Heaving compensation |
| Auto functions | Range, Shift, TVG, TX Power, White line |
| Languages | Japanese, Chinese, English, French, Greek, Italian, Korean, Spanish,Thai |
| Input data formats and sentences | NMEA0183 Ver.1.5/2.0/3.0 GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA |
| Output data formats and sentences | NMEA 0183 Ver.2.0 (DBT : Ver.1.5) DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA |
| NMEA ports | 2 |
| Power supply | 21.6 to 31.2VDC |
| Power consumption | 50W or less (24VDC) |
| Environmental | Operating temperature : -15 to +55℃ Water protection : IPX5 (Operation unit) |
*1 : Owner supply
*2 : Requires data from water temperature sensor
*3 : Requires data from external speed sensor or GPS sensor
*4 : Requires data from GPS sensor
