MF/HF Radio Equipment JSS-2150/2250/2500

Features

The JSS-2150/2250/2500 MF/HF Class A DSC radio equipment features an intuitive user interface and a highly reliable circuit that enables all-mode continuous full power operation.

Class A 6CH DSC watch-keeping built-in

Class A 6CH DSC watch-keeping built-in

The MF/HF has Digital Selective Calling (DSC*) as standard with a built in Class A 6CH DSC watch-keeping receiver. You can transmit and receive digital selective calls for quick and efficient establishment of distress, urgency, safety and routine communication with other ships and coast stations.

In distress situations, the MF/HF sends an alert once you press the distress button. The integrated DSC watch-keeping receiver monitors distress alarms through continuous scanning of distress frequencies.

* Fully meets new ITU-R M.493-13

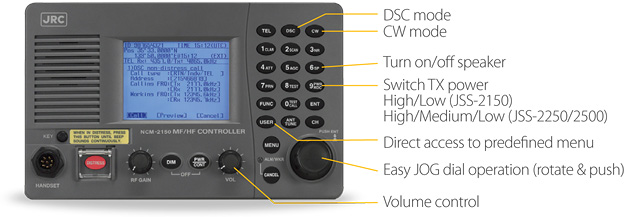

MF/HF controller settings

The MF/HF controller uses a 3.8-inch high visibility LCD display, which you can adjust at your own convenience. The display has 10 dim settings and you can set the contrast up to 11 different levels. An integrated screensaver and the ability to assign a commonly used menu to a user key for direct access, are just a few of the possibilities.

Distress alerts

The MF/HF controller includes a prominent distress button, with features to prevent accidental activation. When in distress, you can send a DSC message instantly, transmitting your MMSI, position, time of position and nature of distress, enabling an immediate response for search and rescue efforts.

Digital audio

Digital audio

The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear.

Connect a remote control

Getting a second operation controller onboard is easy. Connect a second MF/HF controller to the transceiver and position the controller at a secondary location on the ship. The second MF/HF station is fully operable and you can transfer saved channel data to optimize your operation.

Interfacing

Unified design

The MF/HF controller design allows you to carry out all operations simply by using the same unified keyboard layout as found in JRC's VHF radiotelephone. The keypad is solid and responsive, which allows for precise operation. The keys are also backlit, making it easy to operate in low-light settings on the bridge.

Unified design
NBDP (telex) option

NBDP (telex) option

Complement your MF/HF with the NBDP* kit for telex communication with shore radio stations and with other ships. It includes a10.4-inch data terminal equipment featuring a color display with a variety of color backgrounds. The LCD gives you a bright picture with excellent color consistency, even when you are viewing the display from the side.

USB

The USB 2.0 port located on the front panel allows you to connect a mass storage device to save and load messages.

What is in the NBDP kit?

  • Data terminal (NDZ-227)
  • Keyboard (NDF-369)
  • Printer (NKG-800)
  • U-type bracket for display (MPBP31721)
  • Signal & power cables for data terminal and printer
  • Necessary NBDP software and manual

* Narrow Band Direct Printing (NBDP)

Flexibility

Flexible installation
150W JSS-2150

Flexible installation

All MF/HF models are minimum configured as standard, consisting of a MF/HF controller+handset, transceiver and antenna tuner. The 150W model can be applied for non-solas vessels, but also configured with necessary options up to GMDSS A4 area. In contrast to the other two models, the 150W version has a smaller transceiver and antenna tuner which allows for a more flexible installation approach in confined spaces.

High power models

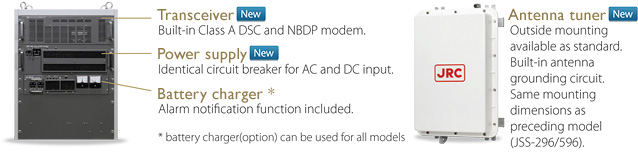

When more power output is required, simply select the 250W or 500W version. Additionally, the new 250W and 500W version come with a redesigned antenna tuner, transceiver and power supply designed to fit into an optional 19 inch rack :NCU-515A.

High power models

250W JSS-2250 (NEW) /500W JSS-2500 (NEW)

GMDSS console

GMDSS console

The MF/HF models can be installed together with a set of Inmarsat-C: JUE-87 in the optional GMDSS console: NCU-531A. Optionally the controller and handset of VHF radiotelephone: JHS-770S/780D can be installed in the same console.

In the box

  • MF/HF controller+Handset
  • Transceiver
  • Antenna tuner
  • MF/HF controller to transceiver cable (5 m)
  • Power supply (250W/500W only)
  • Manual

Options

Power supply NBD-2150 (150W)
Battery charger NBB-724/714
MF/HF controller NCM-2150 (max 2)

What's optional?

MF/HF controller cable 7ZCJD0343 (5 m)
Connection box NQD-2250 (for 2nd controller)
Mounting bracket MPBC42957 (flush)
Mounting bracket MPBX44354 (table)
Handset NQW-261 (IP66)
NBDP kit 7ZZJD0089 (contents see left)
Self supporting antenna NAW-208S (10 m) TX
Whip antenna* NAW-60 (6 m) RX and/or WKR
Joint box JQD-69C (for RX & WKR)
Junction box NQD-2253 (for antenna tuner)
Printer (flush) NKG-91
Printer (table) NKG-800/DPU-414
DMC NCH-321A

Self diagnosis

With JRC's MF/HF radio equipment you can perform self-diagnosis checks on the controller and transceiver, allowing for easy maintenance and more reliability. The results are directly shown on the screen and can be saved as a log (up to 10 possible) or printed (with optional printer).

Remote Maintenance System (RMS)

JRC's unique RMS allows remote monitoring of bridge equipment from ashore. Using JRC VDR and INMARSAT FB satellite communication equipment, JRC can establish a highly secured connection to the vessel and cost-effectively and accurately determine the operating status of the JRC equipment while at sea.

Remote Maintenance System (RMS)

JRC global service network (Star Network)

JRC global service network (Star Network)

JRC has been providing sales and support of products since 1915. Today, JRC offers comprehensive assistance through its organisation, in partnership with a worldwide StarNetwork of over 270 fully trained and qualified partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.

JRC global service network (Star Network)

Specs

Name MF/HF Radio equipment
Model JSS-2150 JSS-2250 JSS-2500
IMO type approved
Output power 150W 250W 500W
Regurations IMO A.806(19), A.694(17), MSC68(68), MSC/Circ.862, IEC 60945 Ed.4 2002-08
Transmission frequency 1605.0 ~ 27500.0kHz(100Hz steps)
Reception frequency 90.0 ~ 29999.9kHz(100Hz steps)
Frequency stability Within ±10Hz
DSC watch keeping frequency 2187.5kHz, 4207.5kHz, 6312.0kHz, 8414.5kHz, 12577.0kHz, 16804.5kHz
Type of emission J3E, F1B, A1A, H2B, J2D, H3E(receiving only)
User programmable channel Up to 400 (20 channels x 20 groups)
ITU preset channel 1722ch
Channel switching time 15sec or less
Communication method Push to talk (simplex, semi-duplex)
Reception attenuation(ATT) 4 steps : 6dB, 12dB, 18dB, OFF
Display 3.8 inch LED Backlit (320 by 240 pixels)
Microphone input -54dBm
Audio output Loud speaker : 5W(8Ω), Handset phone : 1mW(150Ω)
Interface IEC61162-1(GPS/AME/RMS)
Compass safe distance 2.0m
Receiving system Double superhetelodyne
Sensitivity(SINAD 20dB) J3E : ≤2.5µV, F1B : ≤0.7µV, A1A : ≤1.4µV
RMS interface Built in
Transmitter output 1.6 - 4MHz DC : 100Wpep DC : 100Wpep,
AC : 200Wpep
DC : 100Wpep,
AC : 400Wpep
Transmitter output 4 - 27.5MHz DC : 150Wpep DC : 150Wpep,
AC : 250Wpep
DC : 150Wpep,
AC : 500Wpep
Power DC 21.6 to 31.2V
AC option(90 to 132V, 180 to 264V) 90 to 132V, 180 to 264V
Consumption DC : TX ≤30A, RX ≤5A DC : TX ≤40A, RX ≤6A
AC : TX ≤2.0kVA, RX ≤0.5kVA
DC : TX ≤40A, RX ≤6A
AC : TX ≤3.0kVA, RX ≤0.5kVA
Power saving Relays are turned off when sleep mode
Ambient condition Operating temp : -15 to 55°C(controller), -25 to 55°C(antenna tuner)
Storage temp : -15 to 55°C(controller), -25 to 70°C(antenna tuner)
IP protection rate : IP22(controller), IP66(handset)
Relative humidity : 0 to 93% non-condensing

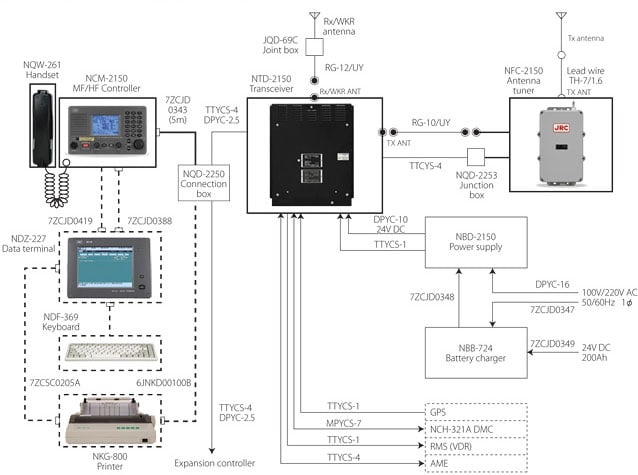

JSS-2150 (150W model) system diagram

JSS-2150 (150W model) system diagram

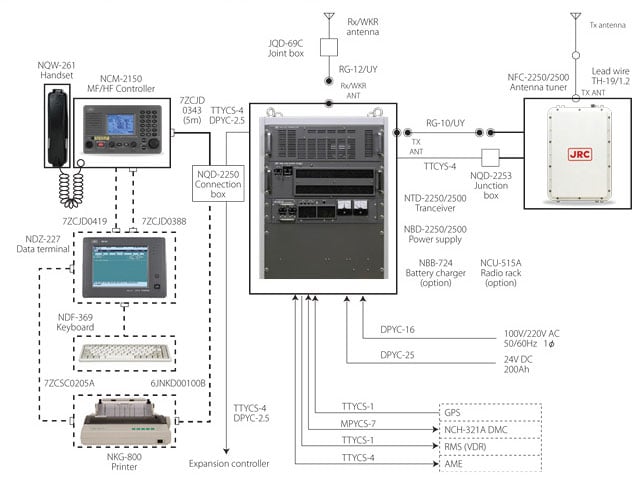

JSS-2250/2500 (250/500W model) system diagram

JSS-2250/2500 (250/500W model) system diagram

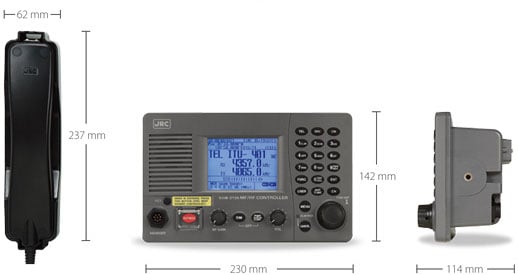

MF/HF Controller/Handset

NCM-2150/NQW-261

NCM-2150/NQW-261 Mass : 1.3/0.5kg

Transceiver

Transceiver1

NTD-2150 Mass : 13kg

Transceiver2

NTD-2250/2500 Mass : 14.6/16.9kg

Antenna tuner

Antenna tuner1

NFC-2150 Mass : 3.3kg

Antenna tuner2

NFC-2250/2500 Mass : 10.0/10.2kg

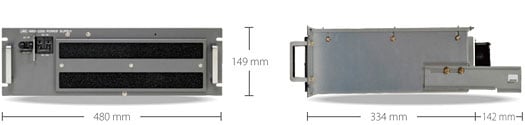

Power supply

Power supply

NBD-2250/2500 Mass : 14.6/18.4kg
